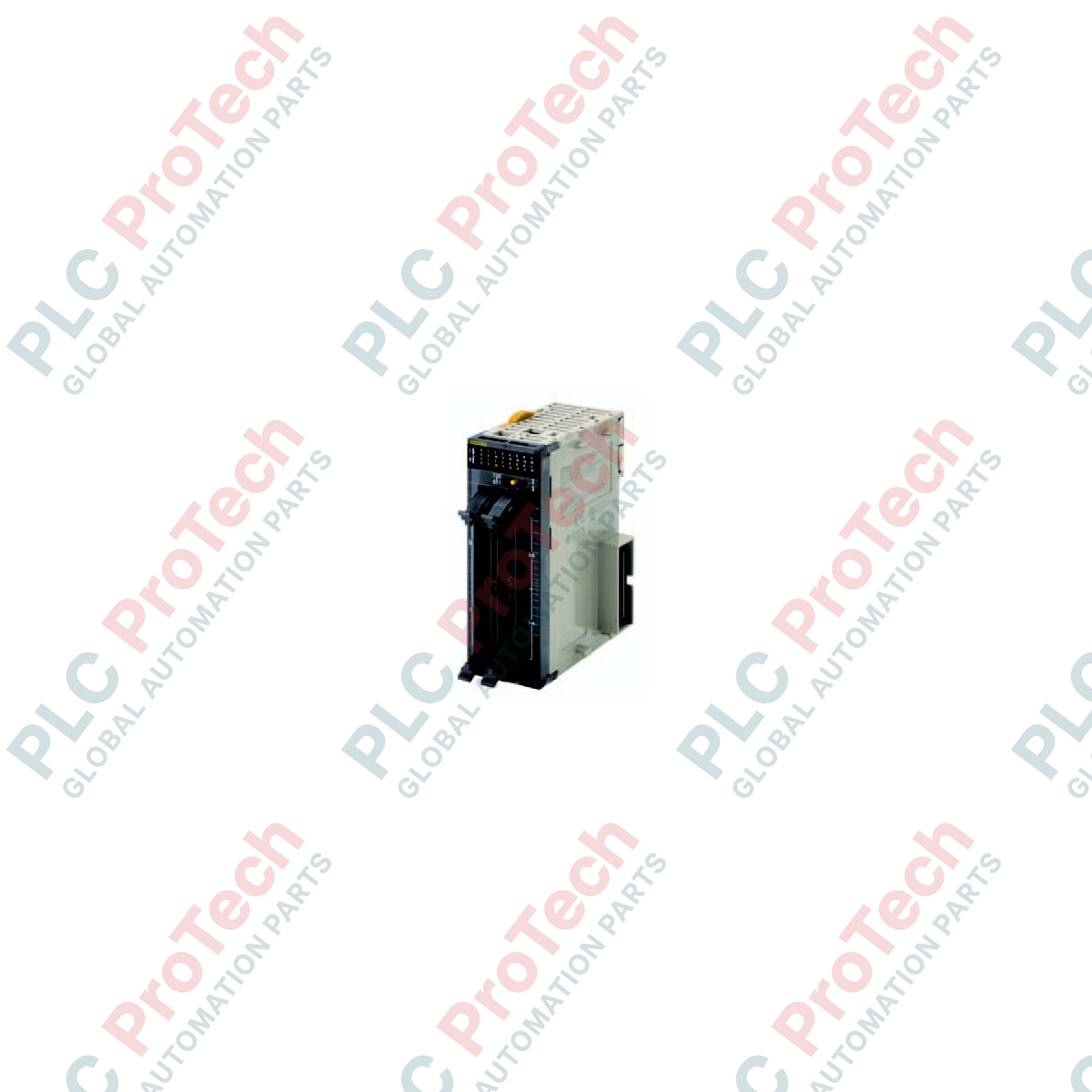

The CJ1W-OD263 is a high-density Transistor Output Unit designed for Omron’s CJ-series PLC systems. Engineered for high-speed switching applications, this module provides 64 output points in a compact format, making it ideal for large-scale machine control where panel space is at a premium. It features a sinking output configuration and utilizes a high-reliability MIL connector interface, allowing for rapid integration and streamlined wiring harnesses in complex automation systems.

Features

• 64 digital output points for high-density applications
• Sinking output (NPN) transistor configuration
• High switching capability: 12 to 24 VDC at 0.3 A per point
• Efficient MIL connector external connection for reduced wiring time
• Integrated into the modular CJ-series backplane ecosystem
• Ideal for driving actuators, solenoids, and indicators in automated lines

Technical Specifications

Installation Guidelines

• Mounting: Secure the module onto the CJ-series backplane and lock it using the integrated sliders. Ensure the module is firmly seated to maintain communication with the CPU.
• Wiring: The unit utilizes a MIL connector; ensure the corresponding cable harness is correctly keyed and seated. Because this is a sinking output module, ensure that the load is connected between the positive voltage supply (V+) and the output terminal of the module.
• Safety: Each common supports 16 points. Ensure that the total current load per common does not exceed the module's rated specifications to prevent damage to the internal output drivers.
• Diagnostics: Use the status LEDs on the front panel to monitor the state of each individual output point during commissioning and routine maintenance.
