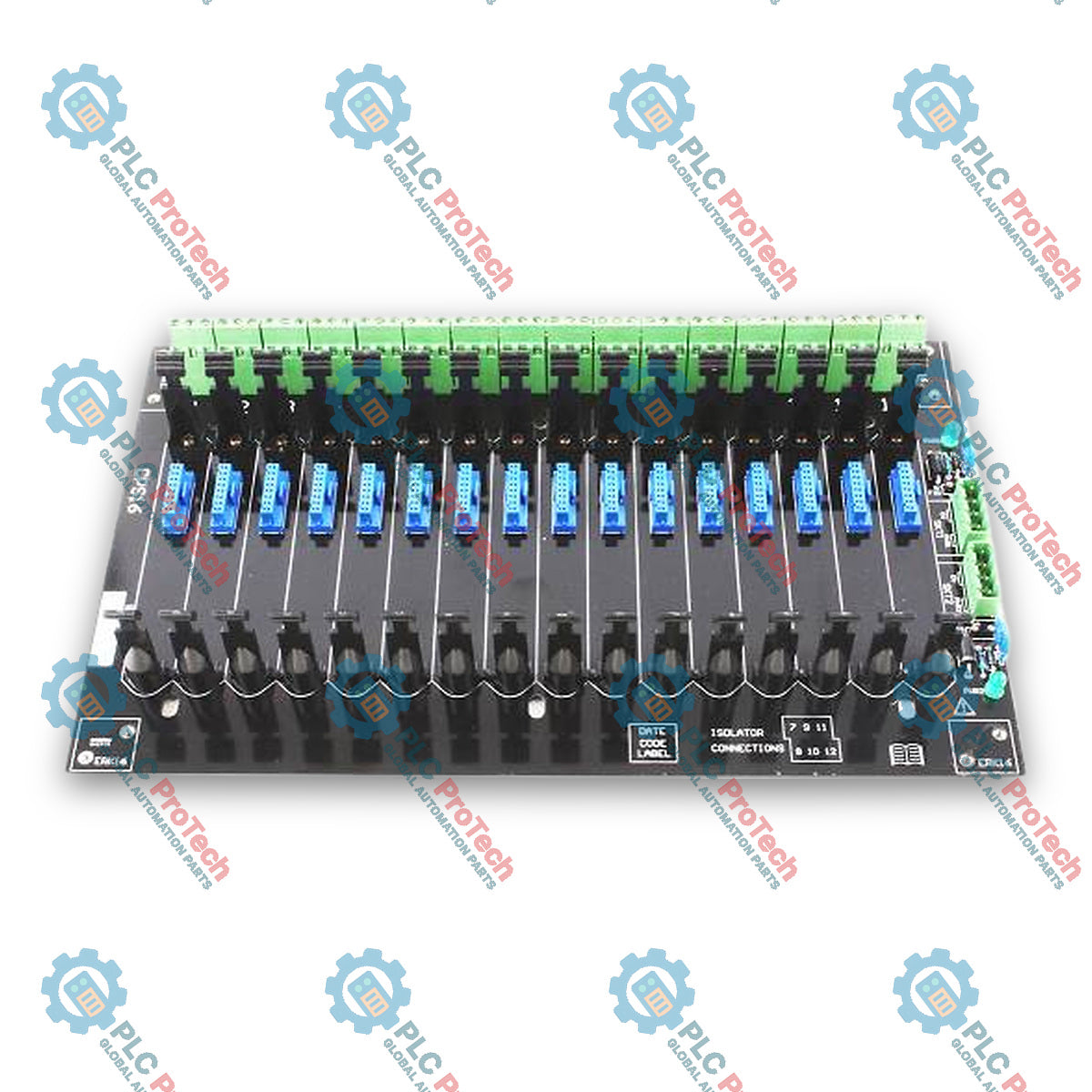

CPS16 | MTL Instruments | MTL4500 16-Way Backplane Screw-Clamp Connector

SKU CPS16

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: EATON
Product No.: CPS16
Origin United States
Product Type: Intrinsic Safety Isolator Backplanes
Payment: T/T, Western Union
Weight: 0.419 kg
Dimensions: 320 mm x 400 mm x 260 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

The MTL Instruments CPS16 is a 16-way standard backplane designed for mounting and interfacing up to 16 MTL4500 series intrinsically safe isolator modules. It provides compact, flexible mounting facilities for integration into process control and safety systems, featuring safe-area connections via screw-clamp terminals. Power to the backplane is supplied through primary and secondary 24V DC inputs via plug-in connectors.

Features

Accepts up to 16 MTL4500 series intrinsically safe isolator modules
Safe-area connections feature 2.5mm2 screw-clamp terminals with 6 positions per module
Dual 24V DC primary and secondary power supply plug-in connectors
Power interconnection capability between backplanes to simplify cabinet wiring
Supports surface mounting and DIN-rail mounting options

Applications

DCS and SIS I/O field termination assemblies
Intrinsic safety isolation in process automation architectures
Industrial control cabinets requiring high-density IS module mounting

Ordering Information

Part Number	Description
CPS16	16-way backplane screw-clamp connector
CPS16-CC	16-way backplane with conformal coating

Technical Specifications

Parameter	Specification
Manufacturer	MTL Instruments (Eaton)
Number of Modules	16
Safe-Area Connections	2.5mm2 screw-clamp terminals (6 positions per module)
Power Requirements (Vs)	21V DC to 35V DC through plug-in connectors
Primary/Secondary Power	Plug-in connectors for dual 24V DC supplies
Weight (without modules/accessories)	419g

Installation Guidelines

Surface Mounting: Can be mounted using the SMS01 surface mounting kit (requires 6 mounting points).
DIN-Rail Mounting: Can be mounted on T-section or G-section DIN rail using the DMK01 DIN-rail mounting kit (requires 6 clips).
Power Wiring: Connect dual 24V DC power inputs to the designated primary and secondary plug-in connectors. Power can be interconnected between adjacent backplanes to reduce overall cabinet wiring.
Accessories: Compatible with the ERK16 earth-rail kit, TSK16 tagging strip kit, and FUS2.0ATE5 or FUS2.5ATE5 spare fuse packs.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

How many modules can be mounted on the backplane?

The backplane accommodates up to 16 MTL4500 series isolator modules.

What type of safe-area signal connections are used?

Safe-area connections are provided via 2.5mm2 screw-clamp terminals with 6 positions per module position.

What power supply voltage is required for operation?

The backplane requires a supply voltage range of 21V DC to 35V DC via plug-in power connectors.

Which mounting options are supported by the device?

The device supports surface mounting using the SMS01 kit or DIN-rail mounting using the DMK01 kit.
