Product Overview

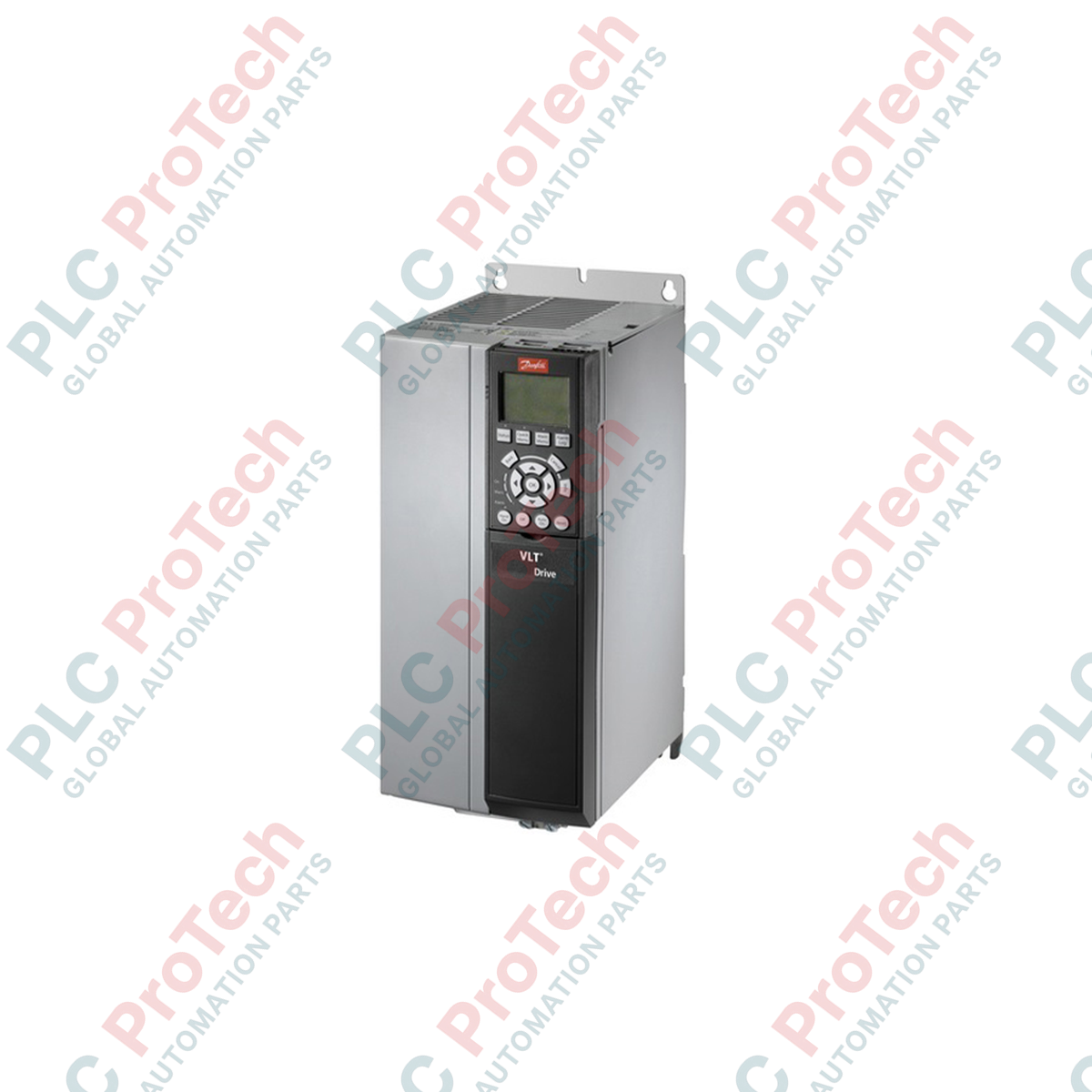

The FC-102P11KT4E20 (131F9673) is a high-performance frequency converter from the Danfoss VLT HVAC Drive FC 102 series, specifically engineered for optimized control of fans, pumps, and compressors in sophisticated building automation systems. Delivering a rated power output of 11 kW (15 HP), this drive is designed to maximize energy efficiency while reducing the overall carbon footprint of HVAC installations. The FC-102P11KT4E20 features a rugged industrial architecture capable of operating in 3-phase networks ranging from 380 to 480 VAC. With its advanced software functions—including built-in PID controllers and Fire Mode for emergency ventilation—this unit ensures seamless integration into DCS and PLC networks, providing the reliability required for critical infrastructure in hospitals, data centers, and commercial complexes.

Technical Configuration

The VLT HVAC Drive FC 102 series utilizes a modular hardware platform designed for endurance and precision in climate control applications:

• HVAC-Specific Control: Includes specialized features such as the Pump Cascade Controller, Resonance Dampening, and Intelligent Check Valve monitoring to prevent system water hammer and mechanical fatigue.

• Efficient Power Management: The T4 power stage (380-480 V) is optimized for high-efficiency motor control, supporting both induction motors and permanent magnet (PM) motors to achieve IE4/IE5 efficiency classes.

• Thermal Architecture: Designed with a robust internal cooling system that maintains performance even at partial loads, ensuring the electronics remain within safe operating limits to extend the drive's MTBF (Mean Time Between Failures).

• Network Integration: Features multiple built-in communication protocols (such as BACnet or Modbus RTU) to allow direct interfacing with Building Management Systems (BMS) without additional hardware.

• Compact Enclosure: The IP20 (E20) chassis is designed for cabinet mounting, offering a high power-to-volume ratio that saves valuable floor space in mechanical rooms.

Technical Specifications

Technical FAQs

Can the FC-102P11KT4E20 be used for safety-critical smoke extraction?

Yes. This drive includes a "Fire Mode" function. When activated, the drive ignores internal protective alarms to maintain smoke extraction or pressurization for as long as possible, or until the drive itself is destroyed by heat, ensuring life safety protocols are prioritized during emergencies.

Does this 11 kW model require external line reactors for harmonic reduction?

The FC 102 series typically includes integrated DC link reactors that significantly reduce harmonic distortion (THDi) to approximately 40-45%. While this is sufficient for most industrial sites, sensitive environments like hospitals may require additional external filters to meet specific local utility standards.

What is the benefit of the IP20 enclosure rating (E20) for this drive?

The E20 enclosure is an open-chassis design intended for installation inside a larger, protected control cabinet. This reduces the drive's cost and size compared to IP55 or IP66 versions, making it the ideal choice for centralized motor control centers (MCC).

Engineering & Installation Guide

• Vertical Clearance: To ensure adequate cooling via the internal fans, leave a minimum clearance of 100 mm (4 inches) above and below the FC-102P11KT4E20. For side-by-side mounting, ensure the cabinet has sufficient ventilation to manage the heat loss generated by an 11 kW load.

• Cable Selection and Grounding: Use only shielded motor cables to prevent electromagnetic interference (EMI) with low-voltage control signals. Ensure the shield is grounded at the drive's metal decoupling plate using the provided clamps to achieve 360-degree contact.

• Mains Protection: Protect the drive using high-speed semiconductor fuses or a dedicated circuit breaker. Refer to the Danfoss technical manual for specific SCCR (Short Circuit Current Rating) requirements to ensure the installation complies with local electrical codes and protects the drive's input bridge.
