Product Overview

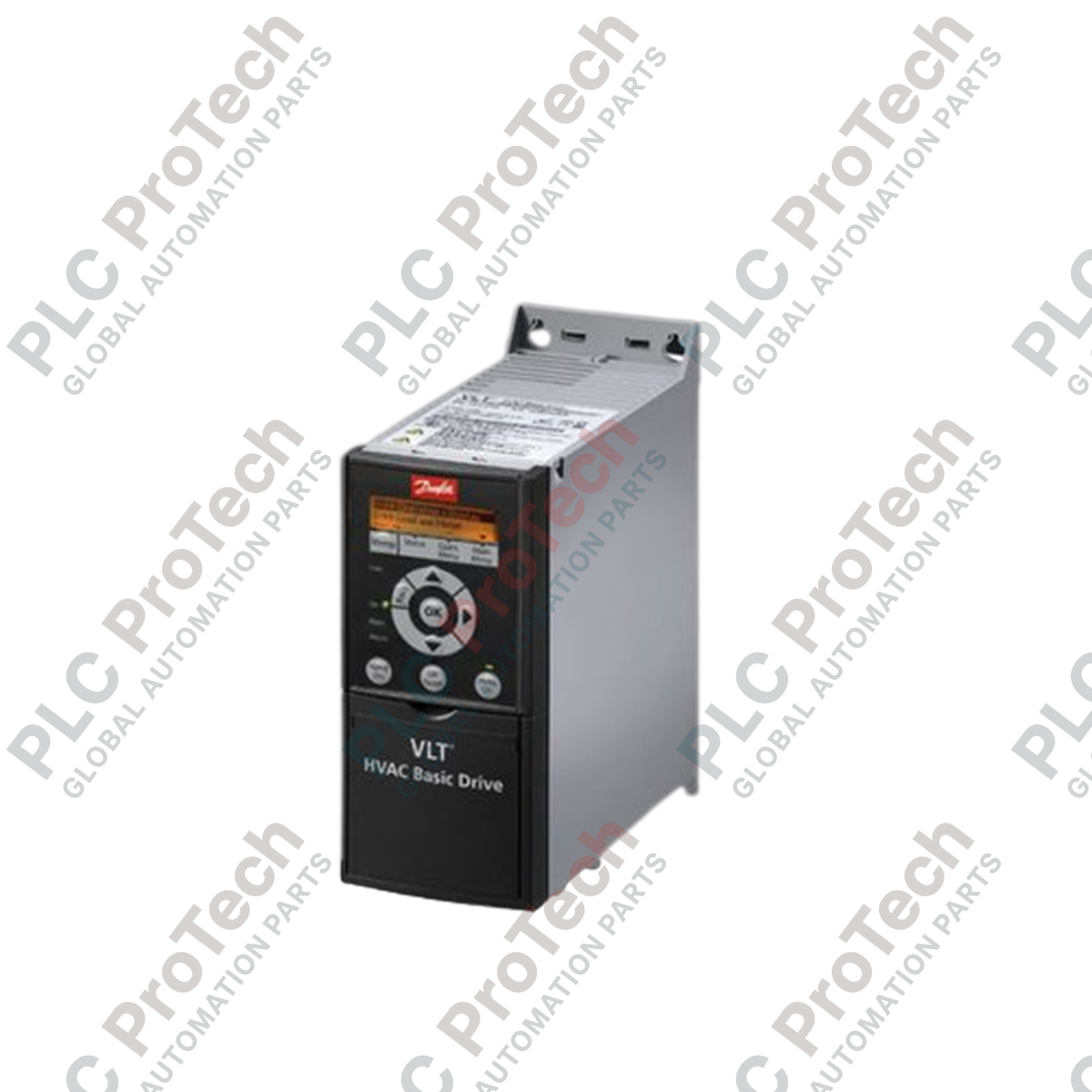

The Danfoss FC111P5K5T4 (VLT HVAC Basic Drive) is a purpose-built frequency converter designed to streamline motor control for essential HVAC applications. This 5.5 kW (7.5 HP) drive provides high-efficiency speed regulation for pumps and fans, utilizing advanced motor control algorithms to minimize power losses, with peak efficiency ratings up to 98.4%. By facilitating smooth starts and precise variable speed operation, the FC-111 significantly reduces mechanical stress on system components, thereby extending service life and reducing the frequency of unplanned maintenance in commercial and industrial ventilation systems.

Technical Configuration

The FC111P5K5T4 is engineered for rapid commissioning and stable performance in standard building climate control environments:

• HVAC Optimization: Tailored for HVAC-specific tasks such as pump and fan regulation, focusing on energy savings and operational reliability.
• Electrical Capacity: Rated for a typical shaft output of 5.5 kW (7.5 HP), supporting three-phase motor operation across 380-480 VAC.
• Current Management: Designed to handle continuous output currents of up to 12.0 A at 40 deg C, with optimized thermal derating for operation in ambient temperatures up to 50 deg C.
• Compact Architecture: Features a robust IP20 chassis design with a weight of 4.3 kg, allowing for space-efficient installation in standard control cabinets.
• Connectivity: Utilizes terminals accommodating cable sizes up to 4 mm2 (10 AWG), ensuring secure and stable power distribution for mains and motor connections.

Technical Specifications

Frequently Asked Questions

Does this drive require external cooling in a 50 deg C ambient environment?

The drive is designed for operation up to 50 deg C, but it will undergo current derating (10.9 A continuous at 380-440 V). Ensure the control panel is equipped with adequate ventilation to prevent exceeding the internal thermal threshold.

Can I use this drive for non-HVAC applications?

While the VLT HVAC Basic Drive is optimized for pump and fan curves, it can be utilized in other constant torque or variable torque applications, provided the load characteristics do not exceed the drive’s thermal and current limits.

How does the drive handle transient power spikes?

The FC-111 supports intermittent current ratings (up to 13.2 A for the 380-440 V range) to handle starting surges and temporary load increases without triggering an immediate fault.

Engineering Guidelines and Installation Best Practices

• Terminal Tightening: When connecting mains and motor leads, ensure cables are stripped to the appropriate length for the 4 mm2 terminals. Use a calibrated torque driver to secure connections; loose terminals are the primary cause of thermal failure in high-current HVAC drives.
• Thermal Management: Given the typical power loss of 131 W, calculate the total heat load for the enclosure. If the drive is installed in a multi-drive configuration, ensure a vertical separation of at least 150 mm to allow heat to rise away from the unit's cooling intake.
• EMC Compliance: To prevent interference with sensitive HVAC building control sensors, ensure the motor cable shield is terminated directly to the drive’s chassis ground using metal cable glands. Avoid routing power cables in the same conduit as signal or feedback wiring.
