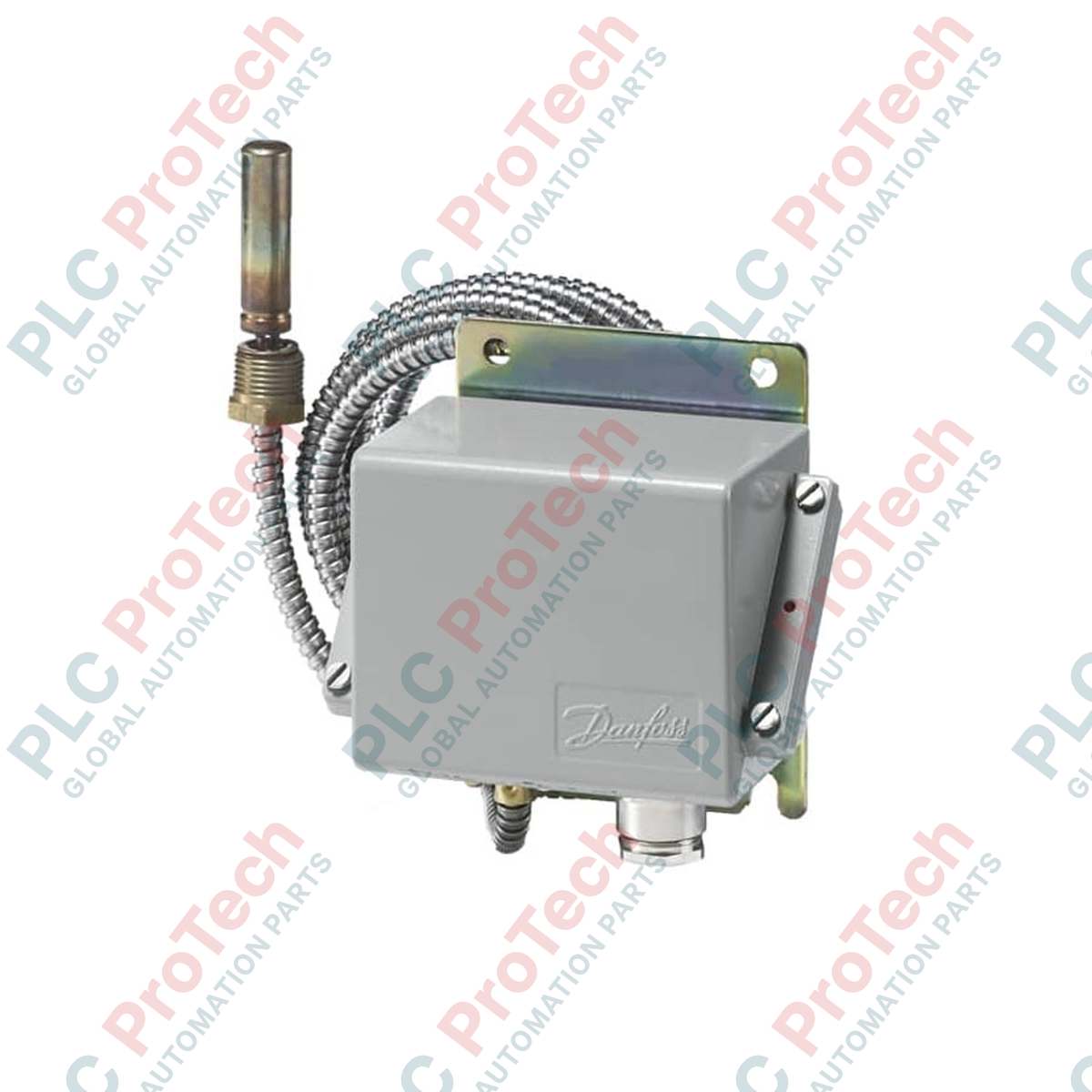

The KPS77 060L313666 is a heavy-duty industrial thermostat designed to monitor temperature and operate an internal single-pole double-throw (SPDT) electromechanical switch when the temperature reaches a pre-defined threshold. The device processes thermal inputs via a rigid remote sensor probe, shifting contact state to control discrete electrical circuits within automated control or safety interlocking loops.

Technical Summary

The instrument operates on a vapor charge principle where temperature variations at the sensor convert to structural pressure changes, actuating the internal contact mechanism. It features an adjustable temperature setting range alongside an adjustable mechanical differential, enabling fine-tuning of the reset threshold to prevent rapid contact cycling. The robust physical design is constructed to withstand high mechanical vibration and thermal overloads encountered in harsh environments.

Hardware Specifications

Engineering Notes

• Contact State Logic: The SPDT contact system serves as a dry-contact binary input for PLC, DCS, or safety interlock systems. Ensure contact electrical ratings match the connected digital input or interposing relay coil characteristics.
• Hysteresis Configuration: The mechanical differential adjustment allows operators to set the span between the cut-in and cut-out points. Proper configuration is critical to suppress noise and signal chatter at the logic control level.
• Thermal Overload Threshold: The continuous or transient sensor exposure must never exceed the absolute maximum limit of 130 deg C to protect the vapor charge assembly from permanent calibration drift or rupture.

Field Guidelines

• Enclosure Insulation & Sealing: Seal all utilized cable entries with appropriate glands to maintain the IP rating of the housing, preventing moisture ingress and dust accumulation from compromising the internal switch contact insulation.
• Cable Routing and EMC Separation: Route the low-voltage discrete signal lines coming from the thermostat away from high-power AC motor or supply lines. Maintain a minimum separation distance of 200 mm to isolate the control loops from electromagnetic interference.
• Sensor Pocket Installation: Ensure the 160 mm sensor pocket is fully immersed in the fluid flow for accurate thermal coupling. Apply a thin layer of heat-conductive paste inside the pocket before inserting the thermostat bulb to maximize response time.
• Vibration and Mounting: Securely mount the rigid housing backplate to a stable structure to minimize the effects of localized process vibration on the contact actuation accuracy.
