Product Overview

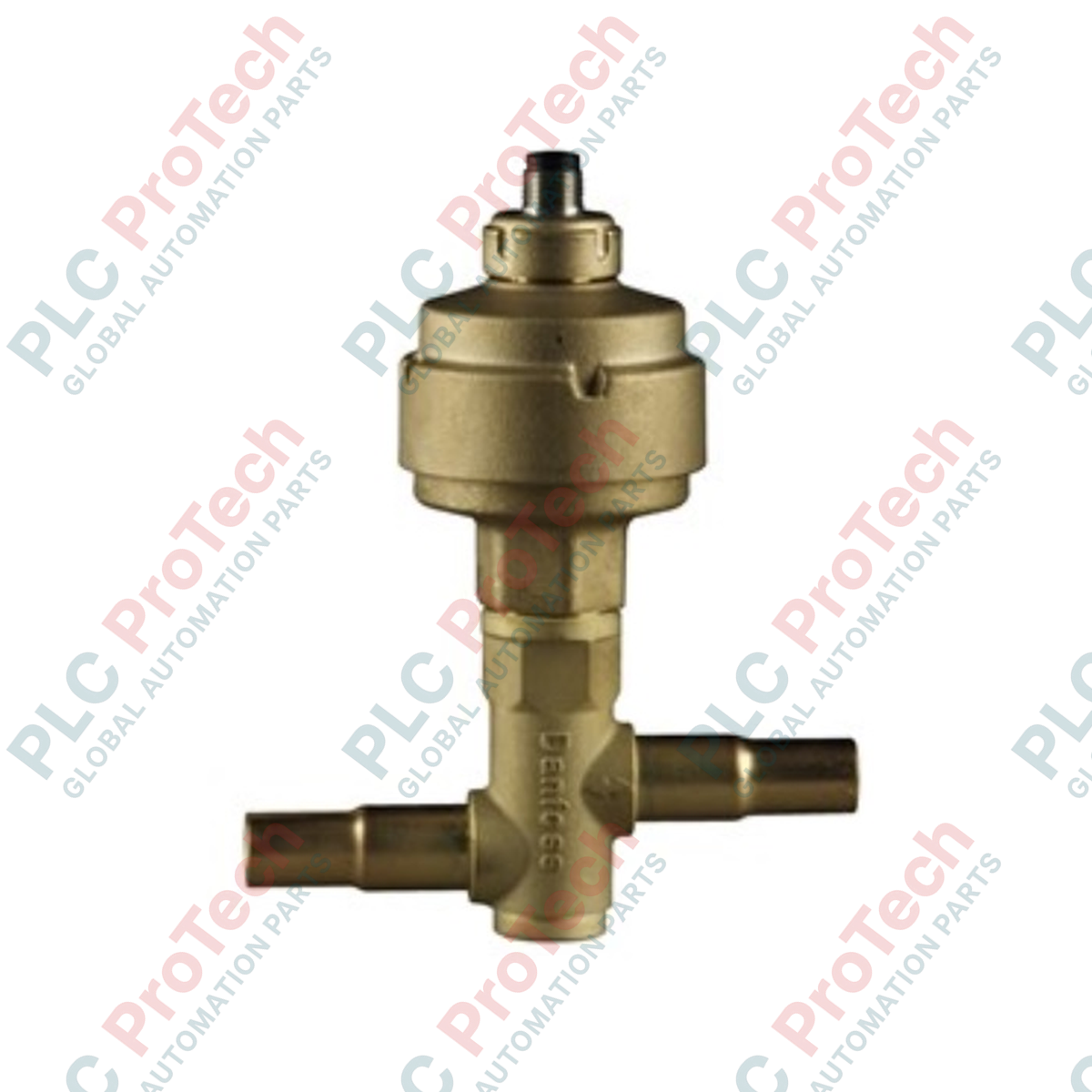

The ETS 25 (034G4203) is a high-precision, electronically operated expansion valve (EEV) engineered for the precise regulation of refrigerant mass flow in medium-capacity air conditioning and refrigeration systems. As a core component of the Danfoss ETS series, the Danfoss 034G4203 (034G4203) utilizes a high-resolution bipolar stepper motor to provide accurate needle positioning, which is essential for maintaining optimal superheat (SH) control and improving overall energy efficiency. Featuring a straightway design and 22.00 mm copper ODF connections, this valve is designed for B2B industrial systems requiring rapid response times, stable pressure regulation, and a high degree of reliability in reversible heat pump or chiller circuits.

Technical Configuration

The technical architecture of the 034G4203 is defined by its balanced internal needle assembly, ensuring linear flow characteristics and enabling native bi-flow operation. It is equipped with a standardized M12 4-pin male electrical connection, providing a secure, vibration-resistant, and moisture-proof interface for the electronic controller. The copper solder connections facilitate standard brazing integration, while the IP67 enclosure rating ensures the actuator remains hermetically sealed against dust and moisture ingress—critical for applications prone to heavy condensation. The 034G4203 is designed to provide high-resolution modulation, allowing for fine-tuned refrigerant injection across its entire operating range.

Technical Specifications

Technical FAQs

How does the M12 connector improve system reliability?

The M12 4-pin connector is an industry-standard, ruggedized interface that ensures a moisture-tight seal and prevents the "wicking" of condensation into the stepper motor housing, which is a common failure point in traditional wired expansion valves.

Is the 034G4203 suitable for bi-directional flow?

Yes, the ETS 25 series features a balanced needle design that ensures identical mass flow accuracy in both directions. This eliminates the need for separate bypass check valves in heat pump systems that switch between heating and cooling cycles.

What are the controller requirements for this valve?

The 034G4203 requires a bipolar stepper motor controller (such as the Danfoss EKD or EKE series) capable of driving 2625 steps for a full stroke, with a phase current of 100 mA RMS.

Engineering & Installation Guide

• Brazing Protection: During installation, it is mandatory to wrap the valve body in a wet cloth. Ensure the internal temperature of the valve does not exceed 100 Celsius to protect the high-resolution stepper motor magnets and the internal PEEK seat from thermal damage.

• M12 Cable Installation: Hand-tighten the M12 cable connector to ensure a proper IP67 seal. Always implement a "drip loop" in the cable routing to prevent water or condensate from tracking directly into the electrical connection.

• Controller Calibration: Upon initial power-up, the electronic controller must perform a full stroke initialization (overdrive) of at least 2625 steps to establish the mechanical "zero" (fully closed) position. Failure to calibrate the valve properly will lead to inaccurate flow regulation and potential superheat hunting.
