General Electric

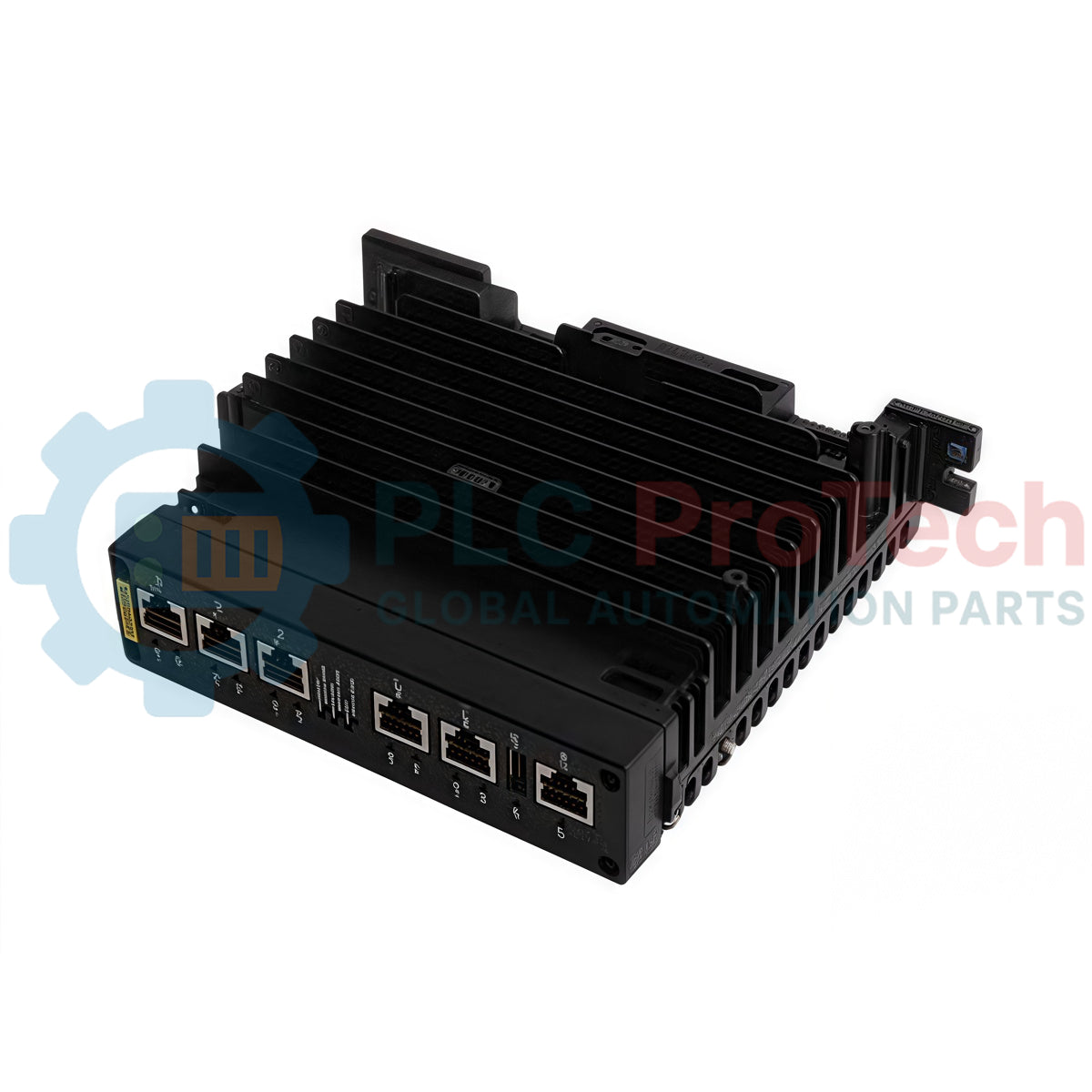

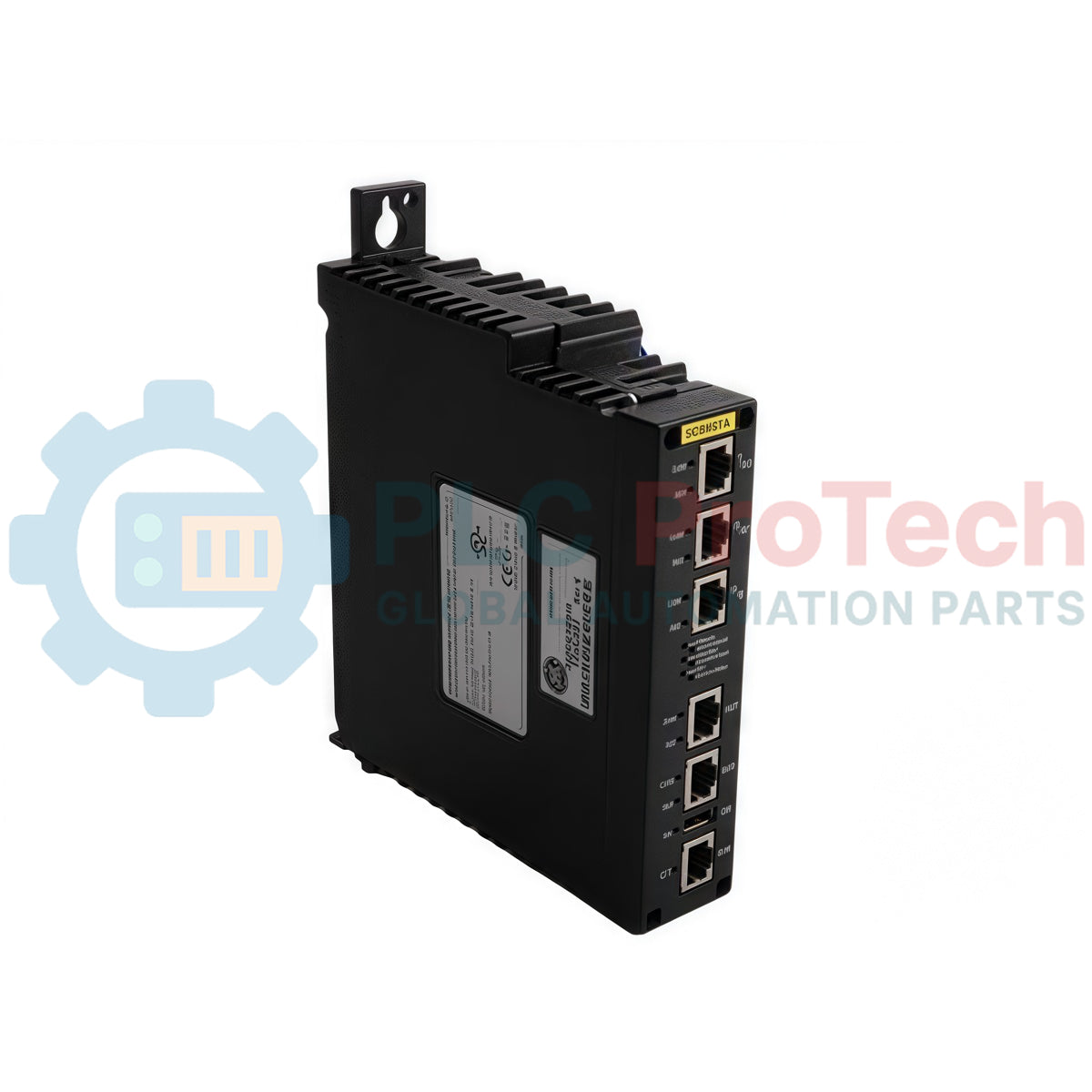

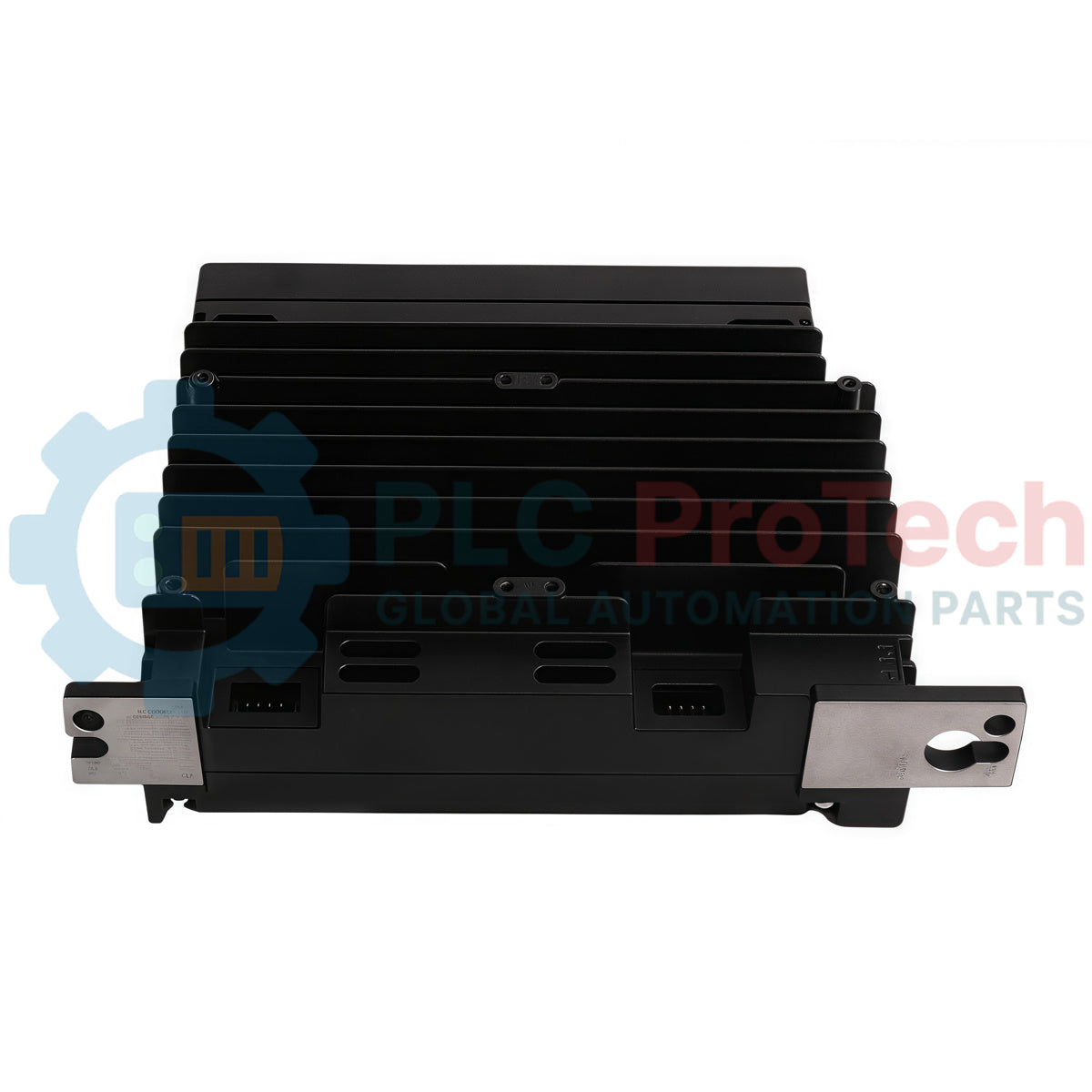

GE IS420UCSDS1 Mark VIeS UCSB Safety Controller Module

SKU IS420UCSDS1

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: General Electric
  • Product No.: IS420UCSDS1
  • Origin United States
  • Product Type: UCSB Controller Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 1.2 kg
  • Dimensions: 155 mm x 110 mm x 45 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Mark VIe UCSB Controller Module

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

GE IS420UCSDS1 Mark VIeS UCSB Safety Controller Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The IS420UCSDS1 is a high-reliability standalone processing node designed for the General Electric Mark VIeS safety control platform. This dedicated safety controller executes complex functional safety algorithms, interlocking logic, and emergency protective actions, separating critical safety loops from standard process control layers. It processes real-time safety I/O data through deterministic Ethernet-based networks to mitigate operational risks and prevent unexpected system downtime. Powered by a quad-core, 1.6 GHz AMD V1000-Series processor, this module provides the fast instruction execution and continuous internal diagnostics necessary for emergency shutdown, fire and gas detection, and burner management operations across demanding industrial sectors such as oil and gas refining, chemical manufacturing, and thermal power generation.

Features

  • Equips a quad-core, 1.6 GHz AMD V1000-Series processor for high-throughput calculation and fast execution of functional safety logic.
  • Provides dedicated onboard high-speed Ethernet communication ports to maintain synchronous data exchange with safety I/O packs over IONet.
  • Utilizes a fanless, passive cooling design with an integrated aluminum heatsink to remove mechanical wear components and increase hardware service life.
  • Supports dual-redundant power input paths to ensure continuous processor availability during primary supply fluctuations.
  • Executes rigorous continuous internal self-tests to detect, isolate, and report diagnostic faults before they impact process safety.

Applications

  • Emergency Shutdown (ESD) Systems
  • Fire and Gas (F&G) Monitoring Networks
  • Burner Management Systems (BMS)
  • Critical Boiler and Turbine Protection Loops
  • High-Pressure Interface Interlocking Platforms

Technical Specifications

Parameter Specification Detail
Manufacturer GE (General Electric)
Model IS420UCSDS1
Product Type Mark VIeS Safety Controller Module
Processor Architecture Quad-core, 1.6 GHz AMD V1000-Series
Operating Temperature 0 to 65 degC (32 to 149 degF)
Storage Temperature -40 to +85 degC (-40 to 185 degF)
Cooling Mechanism Passive convection / Fanless structural heat sink
Enclosure Material Heavy-duty industrial cast aluminum housing
Country of Origin USA
Weight 1.20 kg
Dimensions 155 mm x 110 mm x 45 mm

Installation Guidelines

  • Mounting and Clearance: Secure the controller unit to a vertical panel structure using standard M4 mounting screws. To maximize natural convective airflow across the integrated cooling fins, maintain a minimum clearance of 50 mm above and below the module enclosure.
  • Shielding and Grounding: Connect all network links via high-quality Category 5e (or superior) Shielded Twisted Pair (STP) data cables. Terminate cable shields directly at the metal enclosure bulkhead entry point to suppress high-frequency electromagnetic interference (EMI).
  • Thermal Regulation: Verify that the enclosed cabinet temperature stays within the rated limits of 0 to 65 degC. In closed, high-ambient locations, utilize filtered air exchange panels or heat exchangers to prevent localized heat accumulation around the processor housing.

Compliance and Certifications

  • Class I, Division 2, Groups A, B, C, D
  • ATEX Zone 2, Group IIC
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary processing core used in this safety controller?
The module uses an industrial quad-core, 1.6 GHz AMD V1000-Series processor designed for high-integrity deterministic functional safety application programs.
Does this unit require an external cooling fan assembly?
No, the hardware employs a completely passive, fanless thermal design utilizing integrated aluminum heat dissipation fins to eliminate mechanical failure points.
What are the continuous operating temperature limits for the controller?
The module is specified to operate reliably within an ambient environmental temperature range of 0 to 65 degC.
Is this processing module certified for installation in hazardous environments?
Yes, the enclosure is certified for hazardous locations under Class I, Division 2, Groups A, B, C, D and ATEX Zone 2, Group IIC standards.
