General Electric 531X124MSDAJG2 MFC Suppression Board

SKU 531X124MSDAJG2

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: General Electric
  • Product No.: 531X124MSDAJG2
  • Origin United States
  • Product Type: MFC Suppression Board
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.06 kg
  • Dimensions: 11.3cm x 5.7cm x 1.5cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Product Overview

The 531X124MSDAJG2 (531X124MSDAJG2) is a precision-engineered MFC (Main Frame Control) Suppression Board designed by General Electric for its legacy DC drive systems, specifically the DC-300 and related industrial drive platforms. This Power Connect Card acts as a critical line of defense against high-frequency transients and electrical noise that can jeopardize the stability of power semiconductors. By integrating passive suppression components within a compact, rectangular footprint, the 531X124MSDAJG2 ensures consistent signal integrity and protects sensitive logic circuits from electromagnetic interference (EMI). Its specialized design is essential for maintaining smooth motor control and preventing nuisance trips in heavy industrial applications such as metal rolling, plastic extrusion, and material handling.

Technical Configuration

The 531X124MSDAJG2 is built with a specific hardware layout to handle power-level suppression tasks:

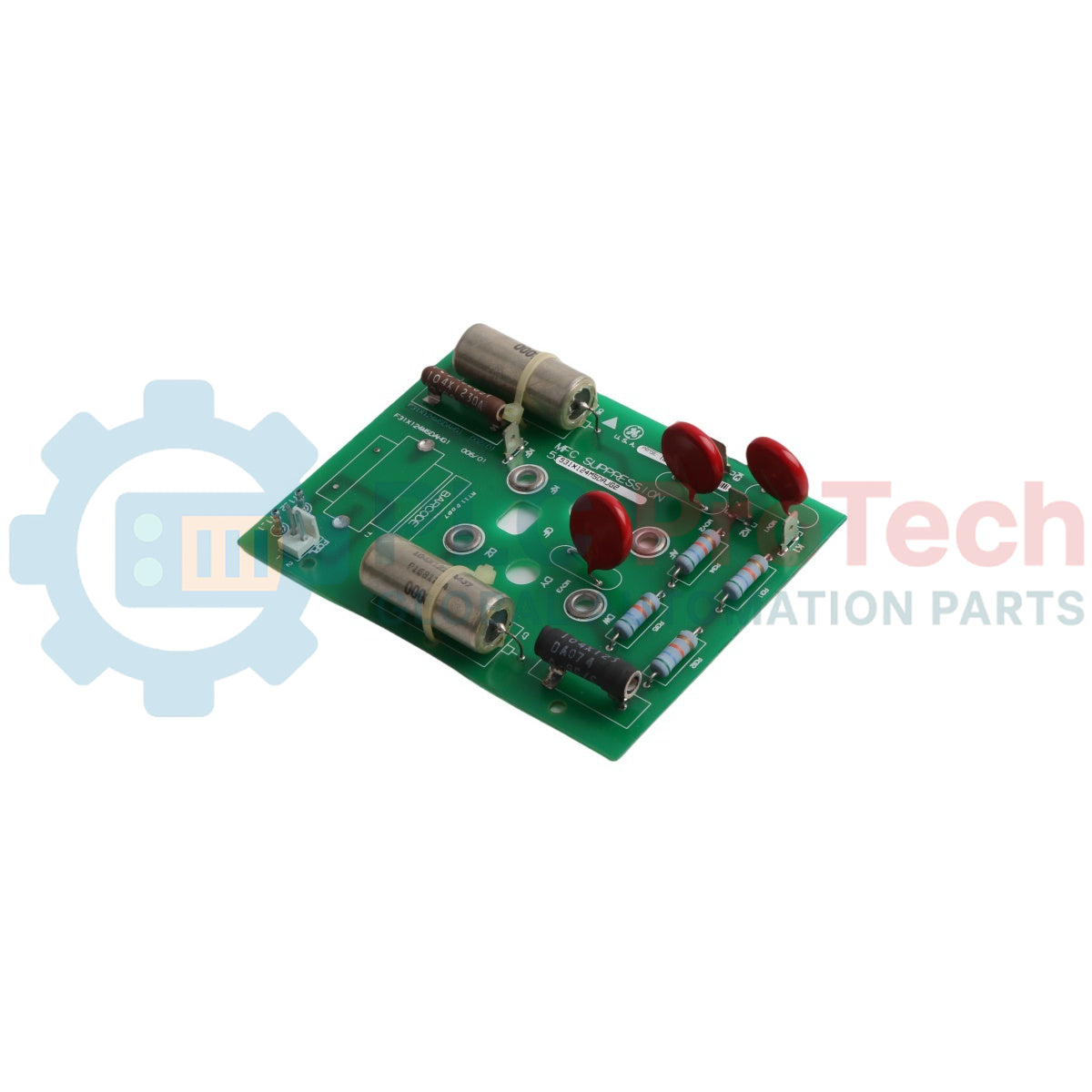

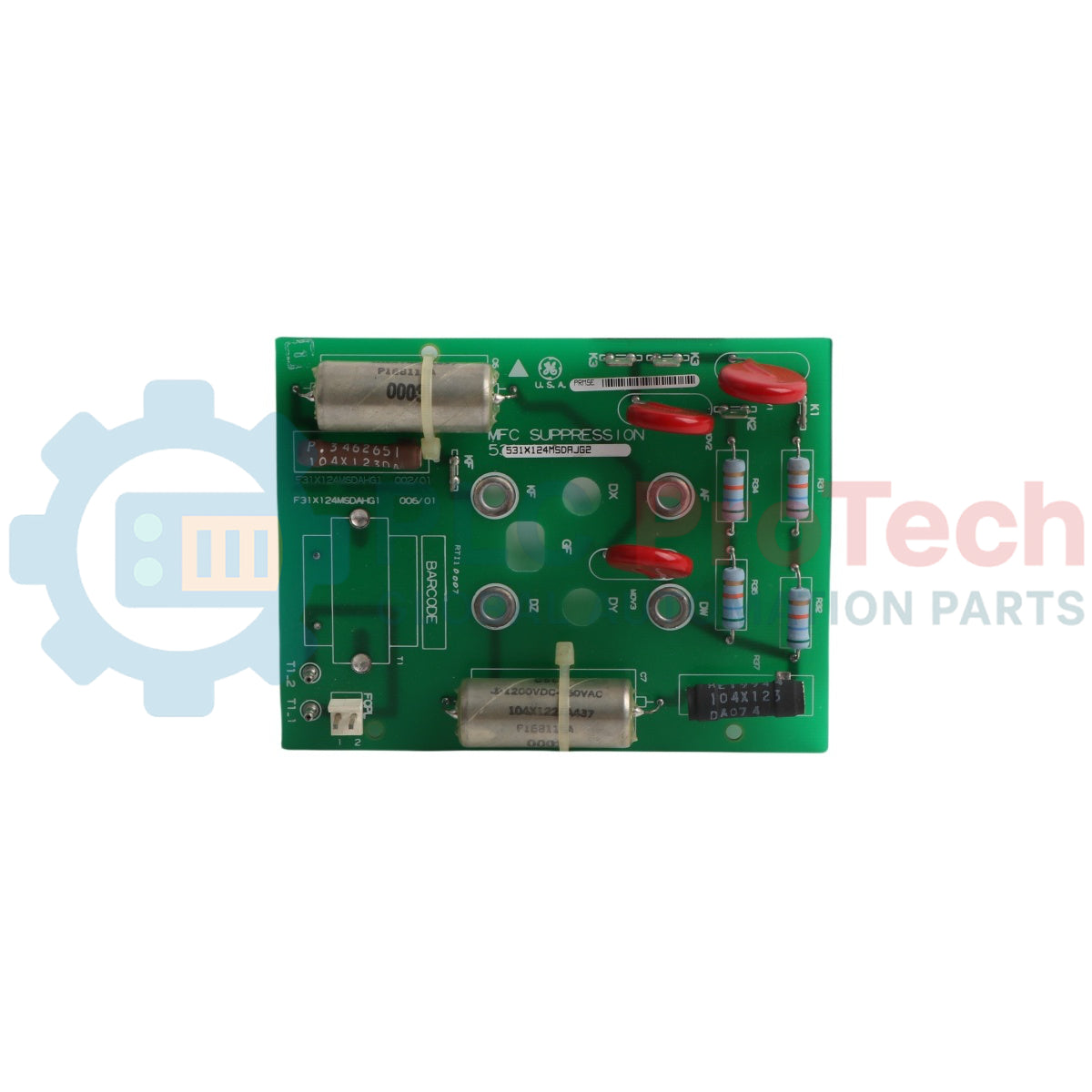

  • Surge Clamping: Features three Metal Oxide Varistors (MOVs) designed to clamp transient voltage spikes, effectively shielding the drive’s main frame from grid-induced surges.

  • Component Stability: Includes two high-capacity capacitors that are mechanically reinforced with zip ties to ensure lead integrity in high-vibration environments.

  • Resistive Network: Utilizes two wire-wound resistors for high-heat dissipation and four metal film resistors for precise noise filtering.

  • Specialized Conductive Pathing: Engineered with four major cutouts (AF, DW, DZ, and KF) lined with conductive material to provide a low-impedance path to ground.

  • High-Current Connectivity: Equipped with four top-edge stab-on connectors (K1-K4) for fast and secure attachment to the primary power bus.

Technical Specifications

Feature Details
Model 531X124MSDAJG2
Brand General Electric (GE)
Module Type Power Connect Card / MFC Suppression Board
System Compatibility DC-300 and General Purpose Drives
Origin USA
Dimensions 11.3 x 5.7 x 1.5 cm
Net Weight 0.06 kg
HS Code 8537101190
Mounting Standoff / Screw-mount with conductive pads

Technical FAQs

What is the role of the transformer on this suppression board?

The integrated transformer serves as an inductive filter. It helps in isolating the control electronics from high-frequency noise generated by the thyristor firing circuits within the DC-300 drive.

Can the 531X124MSDAJG2 be used in other drive series besides the DC-300?

Yes, it is utilized across various GE general-purpose drive systems that require MFC-level suppression. However, always verify that the mounting hole pattern and connector labels (K1-K4) match your specific system documentation.

How do I know if the suppression board has failed?

Failures are often visible as thermal discoloration on the wire-wound resistors or physical cracking/charring of the MOVs. If the drive is experiencing frequent "Overvoltage" or "Line Noise" faults, this board should be the first point of inspection.


Engineering & Installation Guide

  • Conductive Mounting: The cutouts labeled AF, DW, DZ, and KF are functional grounding points. Ensure the mounting standoffs or screws are making clean contact with these conductive surfaces to allow the suppression circuit to bleed transients to the chassis ground effectively.

  • Vibration Resistance: The zip ties on the capacitors are factory-installed to prevent mechanical resonance from snapping the component leads. During maintenance, inspect these ties for brittleness and replace if necessary with high-temperature-rated nylon ties.

  • Connector Integrity: The K1-K4 stab-on connectors must be fully seated. Loose connections at these points can cause localized arcing during a suppression event, which may damage the board or lead to intermittent drive failure.

  • Static Precautions: Although this is a power-level board, it is part of a sensitive DCS/Drive ecosystem. Always use basic ESD protection during handling to prevent damage to the surface-mounted wiring and resistors.
