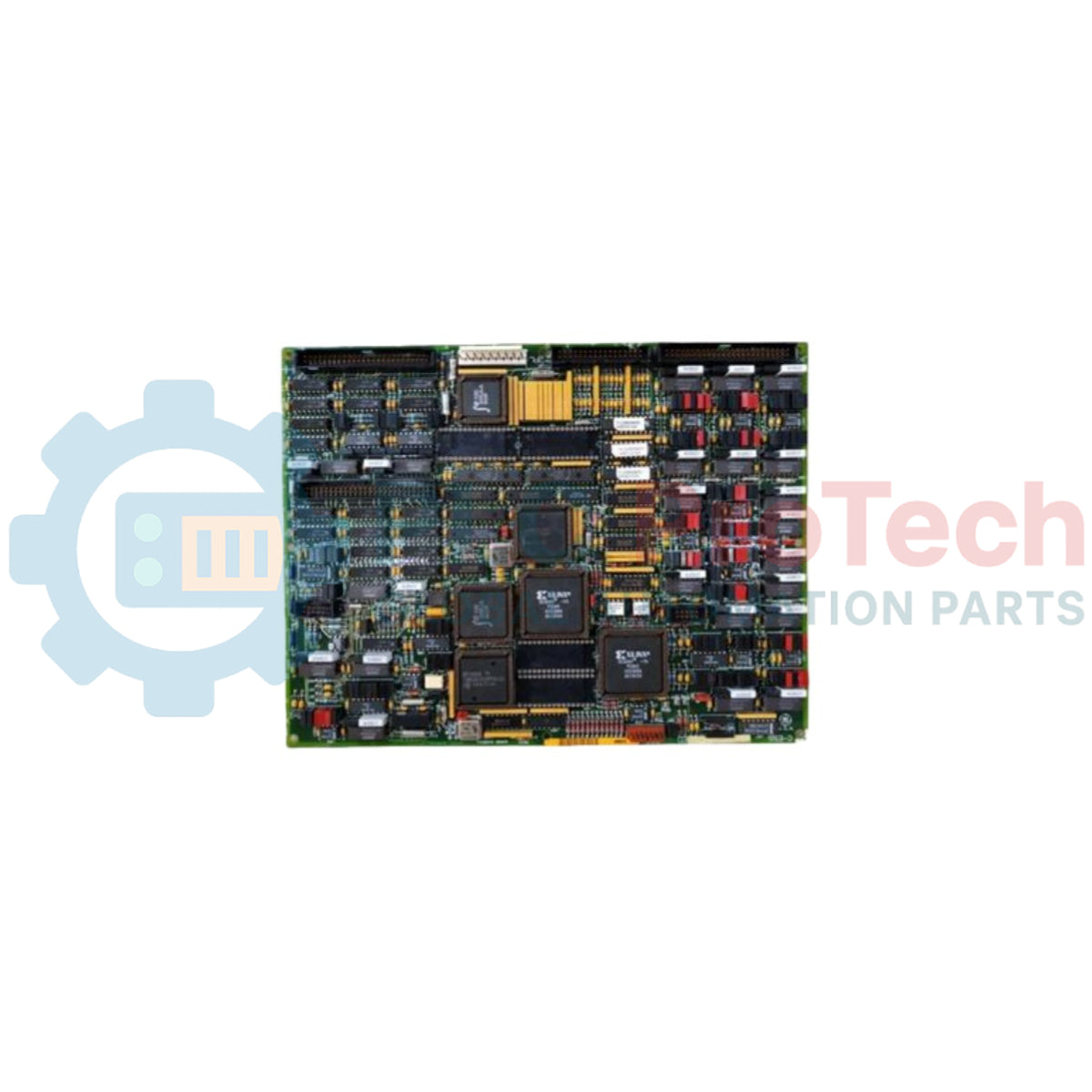

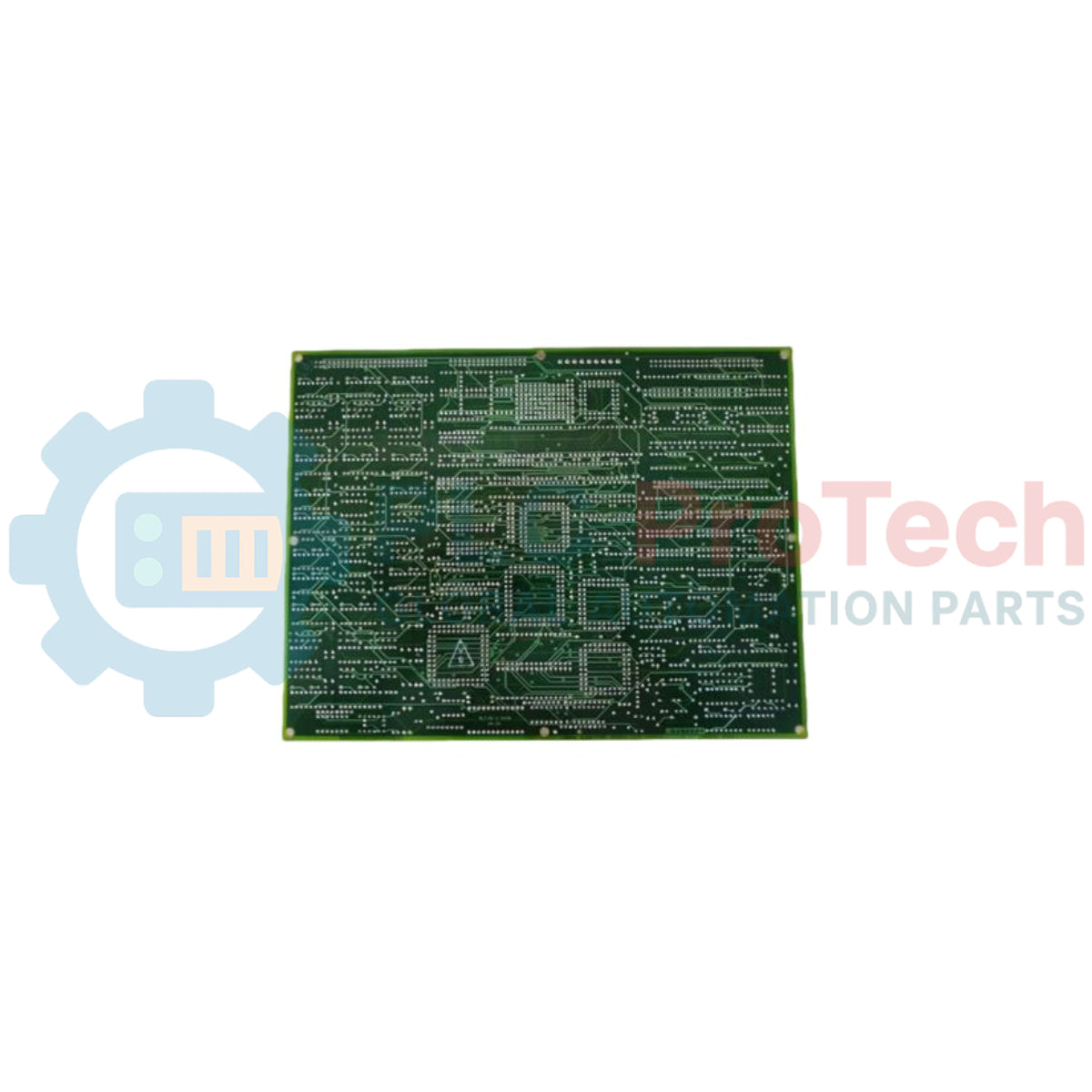

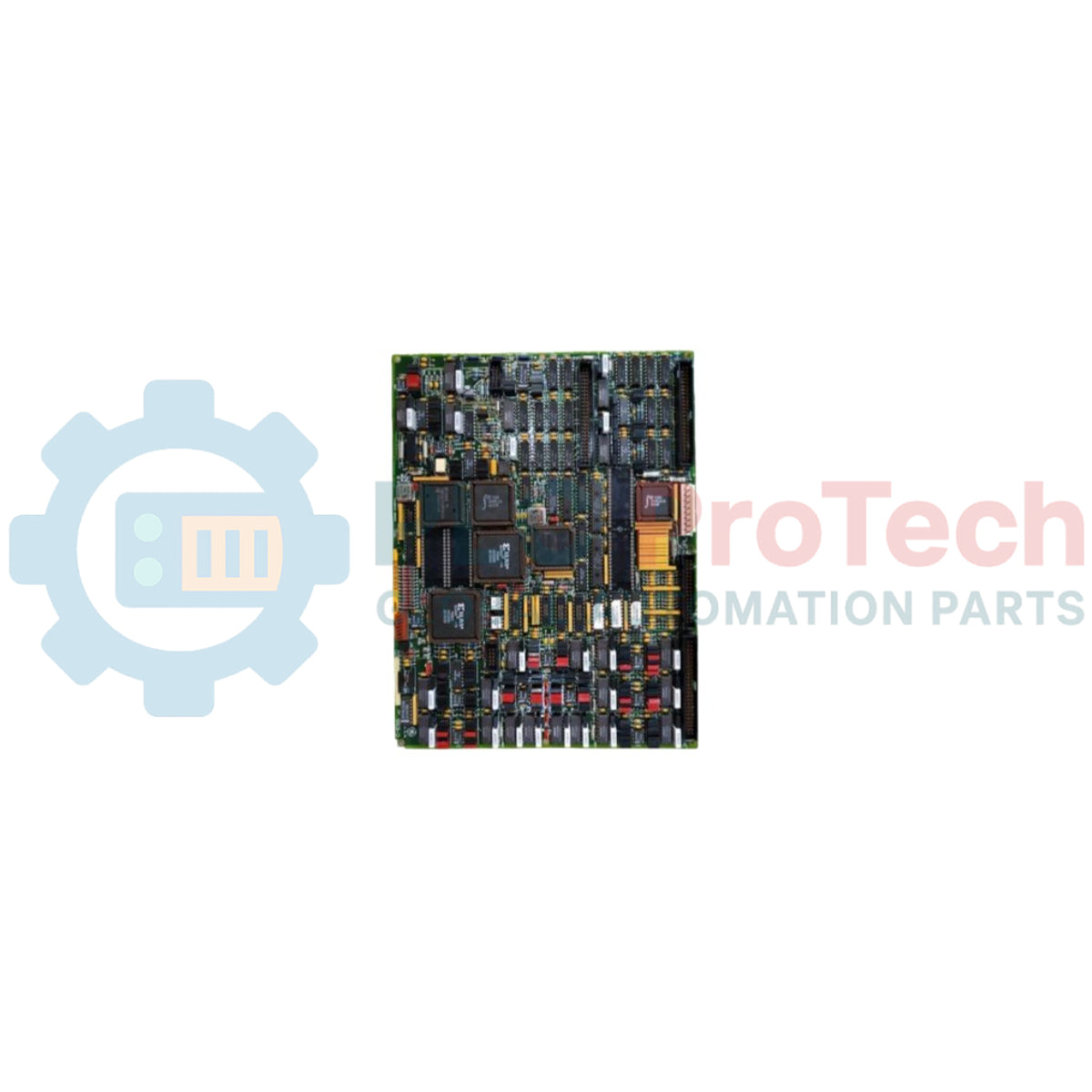

General Electric DS200TCCBG3BDC Mark V TC2000 Analog Board

SKU DS200TCCBG3BDC

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: General Electric
Product No.: DS200TCCBG3BDC
Origin United States
Product Type: Analog Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1.1 kg
Dimensions: 45 mm x 280 mm x 180 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The DS200TCCBG3BDC is a TC2000 Analog Board developed by General Electric for the Mark V Turbine Control System Series. Operating as a specialized analog processing board, this unit modifies the parent DS200TCCBG3 hardware design by integrating three distinct product revisions, consisting of two functional-style revisions and one artwork configuration revision. The DS200TCCBG3BDC is tasked with processing critical analog feedback signals and executing programmed control loops via an onboard microprocessor, making it essential for the processing demands of gas and steam turbine systems.

Features

Utilizes a high-speed 16-bit 80196 microprocessor housed in a rugged ceramic package.
Contains removable programmable read-only memory (PROM) modules to store system firmware and configuration profiles.
Incorporates a diagnostic light-emitting diode (LED) positioned for direct side-view monitoring.
Integrates an onboard watchdog timer to monitor system and processor integrity automatically.

Applications

Gas and steam turbine control systems
Industrial turbine process automation and monitoring
Mark V turbine drive analog diagnostic loops

Technical Specifications

Parameter	Specification
Manufacturer	General Electric
Series	Mark V
Part Number	DS200TCCBG3BDC
Functional Acronym	TCCB
Functional Description	TC2000 Analog Board
PCB Coating	Normal Coating
Onboard Processor	16-bit 80196 microprocessor (Ceramic package)
Onboard Storage	8 KB onboard ROM and multiple PROM modules
Functional Revision 1	B
Functional Revision 2	D
Artwork Revision	C

Connections/Interfaces

Connector ID	Function
JCC	50-pin Analog Signal and Control Interface Connector
JDD	50-pin Analog Signal and Control Interface Connector

Installation Guidelines

Electrostatic Discharge (ESD) Protection: Leave the printed circuit board in its static-shielding bag until immediate deployment is required. Maintain continuous ground connection when extracting and installing the highly sensitive PROM modules.
PROM Transfer: Use a specialized IC extraction hand tool to remove the PROM modules from the old board and insert them into the replacement unit to preserve existing firmware and parameters.
Visual Diagnostics: Verify successful startup by inspecting the status of the diagnostic LED visible from the side profile of the installed assembly.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What processor is utilized on the board and what are its features?

The board features a 16-bit 80196 microprocessor in a ceramic package, complete with an integrated watchdog timer and 8 KB of onboard ROM.

Are all three product revisions of the device backward-compatible?

No, only the first two functional revisions are backward-compatible. The third revision is an artwork configuration change which does not support backward compatibility.

How are the JCC and JDD connectors configured on the board?

Both JCC and JDD are designated as 50-pin connectors used to route analog interface and system signals.
