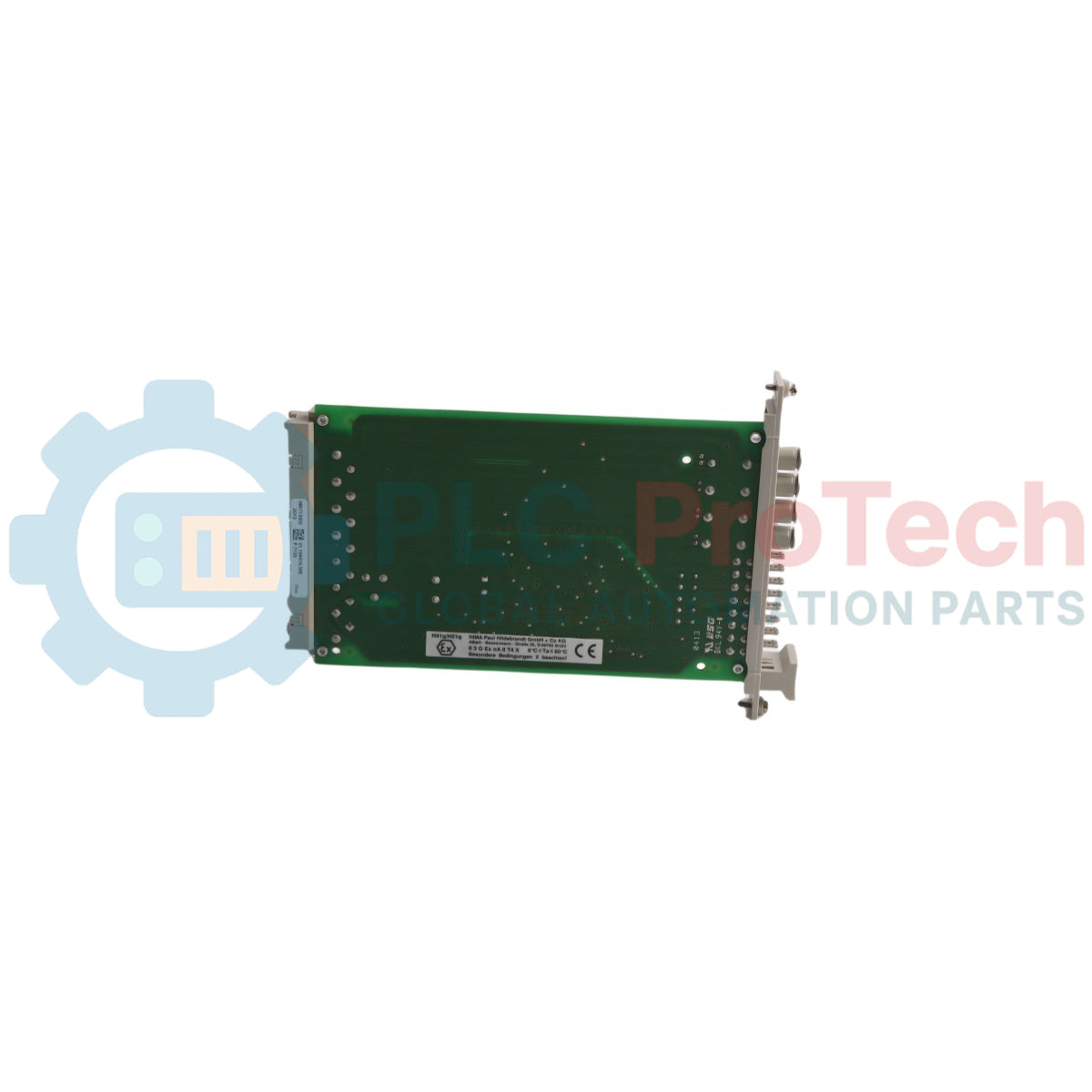

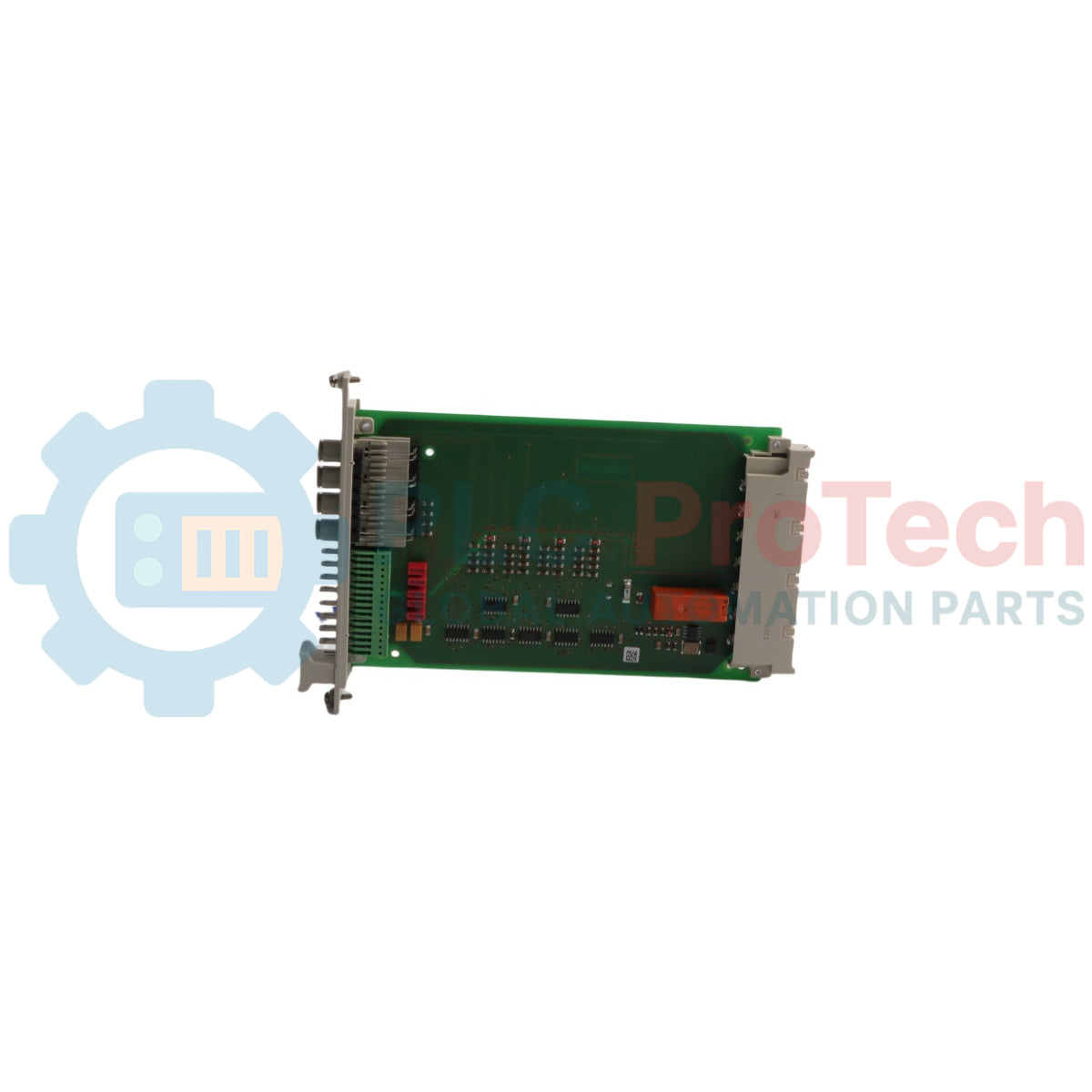

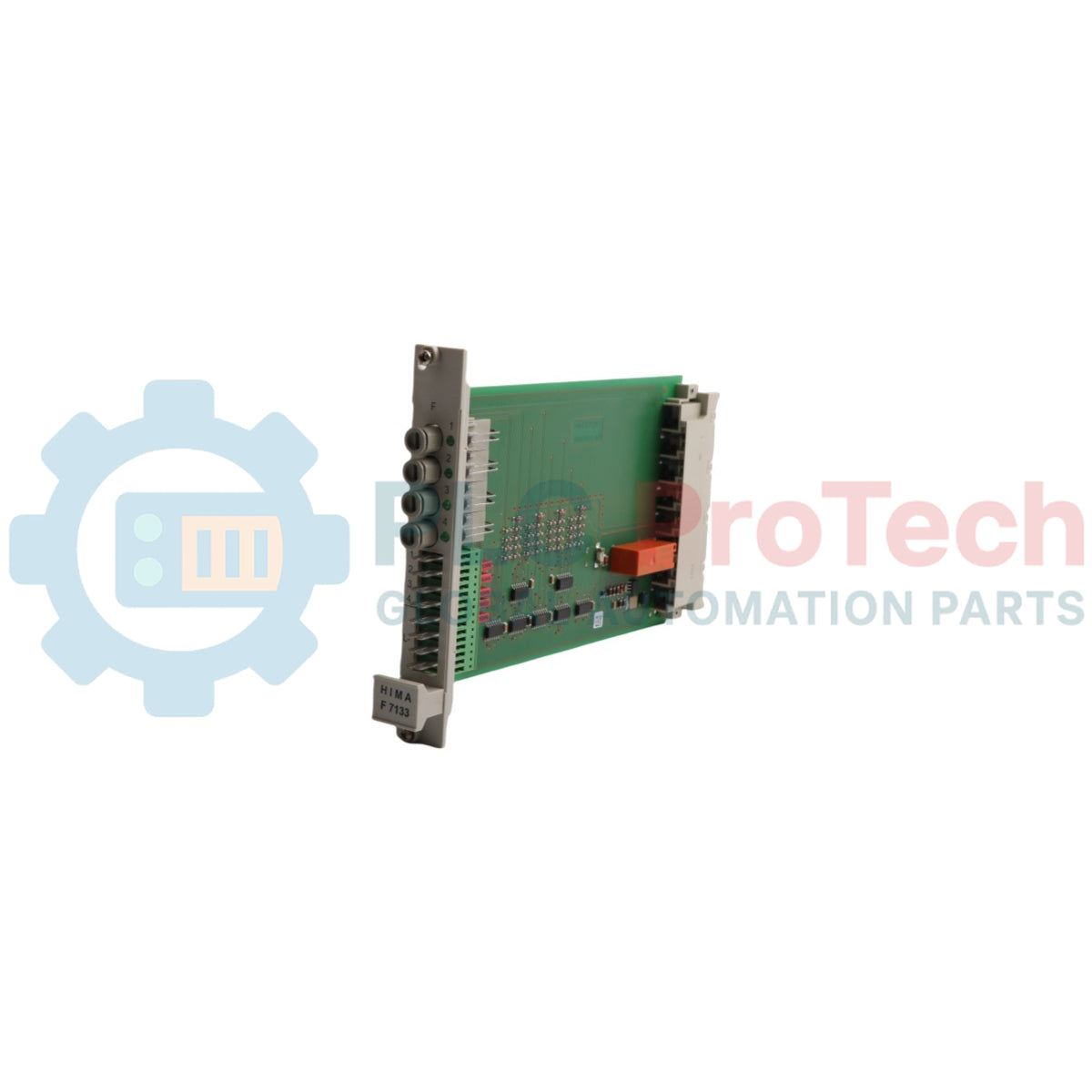

The HIMA F 7133 is a non-interactive 4-fold power distribution module designed for the H51q System Family to provide fuse monitoring and L- distribution. The module functions within the I/O subrack (occupying slots 18 to 21) to supply and protect I/O modules, sensor contacts, and actuator circuits. It incorporates four miniature fuses that provide line protection, with each fuse monitored via an internal evaluation logic block. Power for the I/O modules is fed into the rear side of the power distribution modules via XG. 7/8/9/10, allowing specific slots to allocate power to designated groups of I/O slots. Built-in failure signalization is achieved through dedicated front-panel LEDs and an integrated relay contact to report missing or faulty fuse states safely.
| Part Type Designation | Alternative Designation | Functional Description |
|---|---|---|
| F 7133 | F7133 | 4-fold power distribution with fuse monitoring and L- distribution |
| Parameter | Value |
|---|---|
| Manufacturer | HIMA Paul Hildebrandt GmbH + Co KG |
| Fuses | max. 4 A slow blow |
| Switching Time | approx. 100 ms (relay) |
| Loadability of the Relay Contacts | 30 V/4 A (continuous load) |
| Residual Voltage (Fuse Tripped) | 0 V |
| Residual Current (Fuse Tripped) | 0 mA |
| Residual Voltage (Missing Supply) | max. 3 V |
| Residual Current (Missing Supply) | < 1 mA |
| Space Requirement | 4 TE |
| Operating Data | 24 V DC: 60 mA |
| Connector Pin | Function |
|---|---|
| Front Contacts 1, 2, 3, 4 | Connection for L+ resp. EL+ to supply the I/O modules and sensor contacts |
| Front Contact L- | Connection for L- distribution |
| Rear Contacts d6, d10, d14, d18 | Terminals for 24 V supply of one I/O slot each |
| Relay Contacts d22/z24 | Safety monitoring loop contact (closed when all fuses are in order) |
Global Express Shipping
Returns & Warranty
Manufacturer: HIMA
Product No.: F7133
Country of origin:Germany
Product Type: Power Distribution Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 160g
Dimensions: 2cm x 18.8cm x 12.8cm
Shipping port: Xiamen
Warranty: 12 months
