HIMA

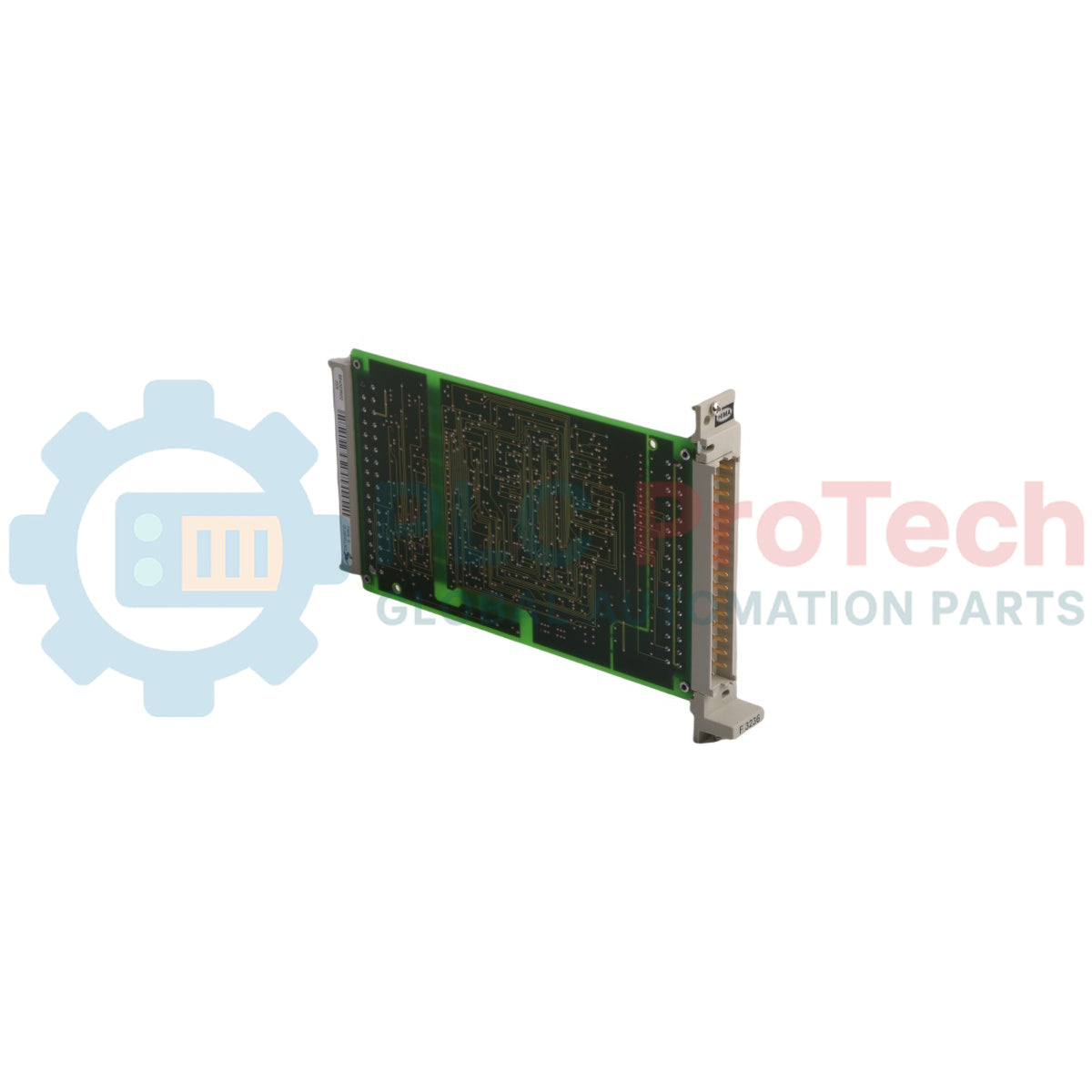

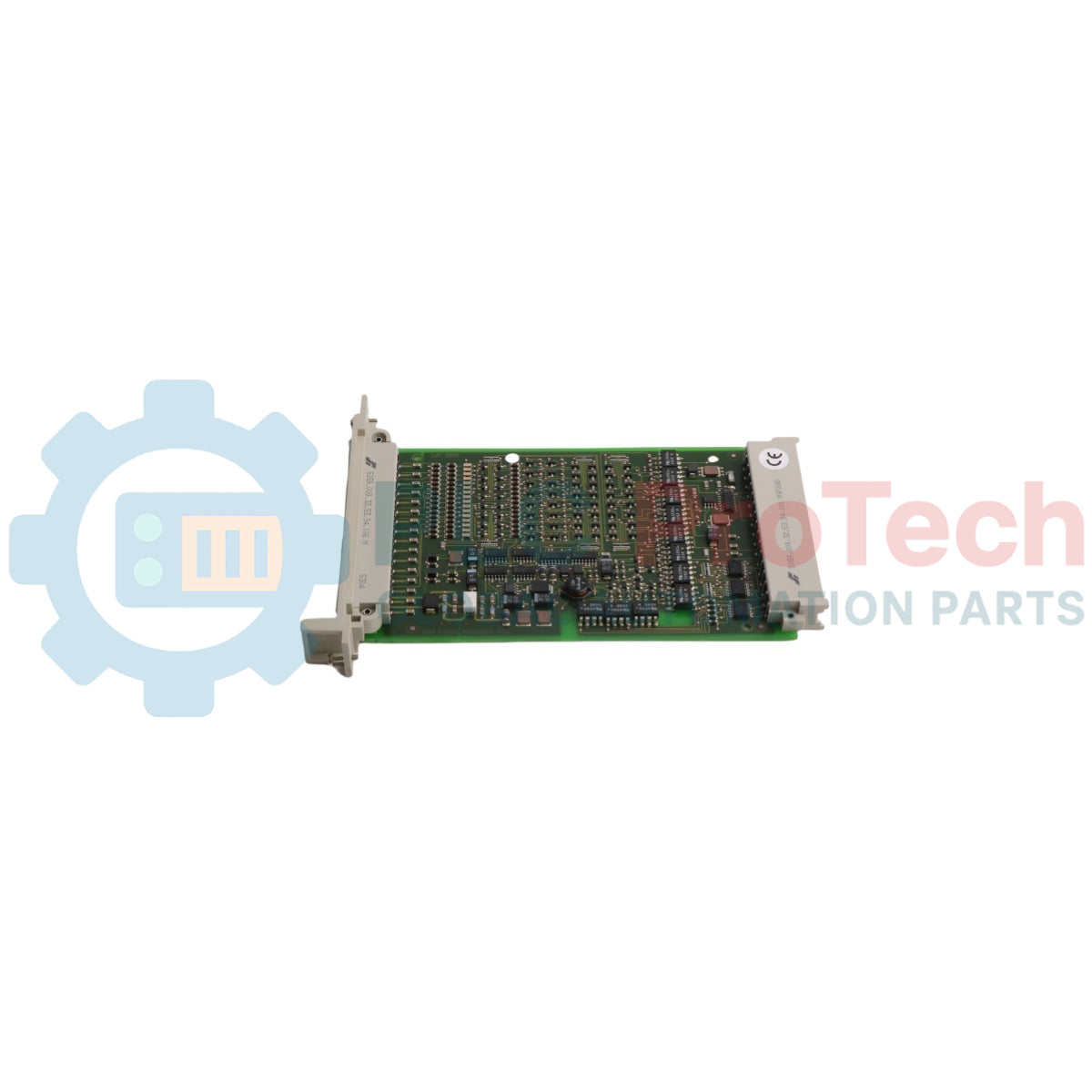

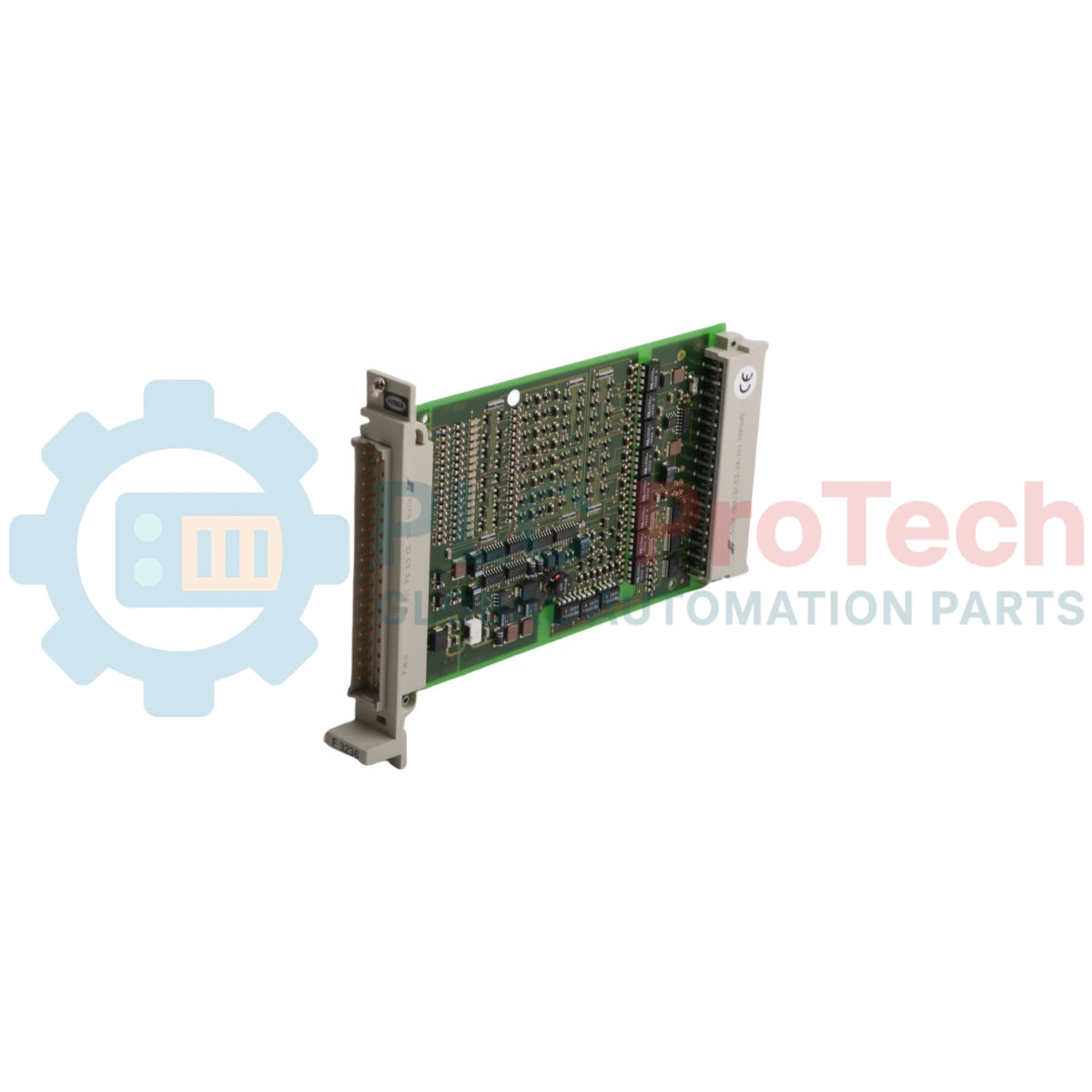

HIMA F 3236 HIQuad X 16-Channel Digital Input Module

SKU F3236

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: HIMA
  • Product No.: F3236
  • Origin Germany
  • Product Type: Digital Input Module
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.5 kg
  • Dimensions: 2cm x 19cm x 12.7cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Digital Input Modules HIQuad X

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

HIMA F 3236 HIQuad X 16-Channel Digital Input Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The F 3236 (also designated as F3236) is a safety-related 16-channel digital input module engineered for integration within the HIQuad X programmable electronic system. This hardware device acts as a safe separation component for processing binary data from field instrumentation sensors or mechanical contacts into the central system logic. The module automatically executes self-testing subroutines during operation, performing cross-talking checks with a walking-zero test sequence and inspecting internal filter capacitor health to maintain predictable safety parameters. To ensure direct signal routing to marshalling cabinets or field accessories, the assembly utilizes custom-matched HIQuad X system cables with dedicated front cable plug connections.

Features

  • Provides 16 safety-related digital input processing channels
  • Automated full operational self-testing covering walking-zero input cross-talking parameters
  • Continuous hardware diagnostic monitoring of onboard filter capacitor functionality
  • Safe separation architecture certified for safety-critical plant application deployment

Applications

  • Safety-related automation input signal monitoring
  • High-integrity plant discrete loop processing
  • Emergency shutdown and safety isolation sensor setups

Ordering Information

Part Type Designation Alternative Designation Compatible System Cable
F 3236 F3236 Z 7116/3236/..

Technical Specifications

Input Parameters

Parameter Value
Number of Inputs 16 channels
Input Type 1-signal, 6 mA (including cable plug) or mechanical contact 24 V
Switching Time typ. 8 ms

Operating Power Requirements

Parameter Value
5 V DC Supply Current 120 mA
24 V DC Supply Current 200 mA

Mechanical Properties

Parameter Value
Manufacturer HIMA Paul Hildebrandt GmbH + Co KG
Space Requirement 4 TE
Connection Interface Front cable plug connector

Connections/Interfaces

Connector Pin Function Colour
d2 Channel 1 Connection ws
d4 Channel 2 Connection br
d6 Channel 3 Connection gn
d8 Channel 4 Connection ge
d10 Channel 5 Connection gr
d12 Channel 6 Connection rs
d14 Channel 7 Connection bl
d16 Channel 8 Connection rt
d18 Channel 9 Connection sw
d20 Channel 10 Connection vio
d22 Channel 11 Connection ws-br

Installation Guidelines

  • Module Insertion: Slide the hardware card carefully into the specified rack position along the chassis guide tracks, confirming the 4 TE space requirement constraints are met.
  • Cable Interface: Connect the specific system cable plug matching the Z 7116/3236/.. standard directly to the front faceplate interface receptacle.
  • Signal Line Management: Group and route the multi-core input lines cleanly toward marshalling cabinets to avoid ambient electromagnetic coupling.

Compliance and Certifications

  • CE Mark
  • Requirement Class AK 1 to 6
  • DNV Type Approval (Certificate No. TAA000032E)
  • Environmental Categories: Temperature: B (from 0 Celsius), Humidity: B, Vibration: A, EMC: B
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What diagnostic functions are performed automatically during operation?
The module automatically runs full functional checks covering input cross-talking via a walking-zero test routine and monitors the status of internal filter capacitors.
What are the specific operational current draws for this device?
The hardware draws a typical operating current of 120 mA from the 5 V DC line and 200 mA from the 24 V DC power line.
Which specific system cable configuration is required for front connection?
The front cable plug connector requires the standard system cable interface variant designated as Z 7116/3236/..
