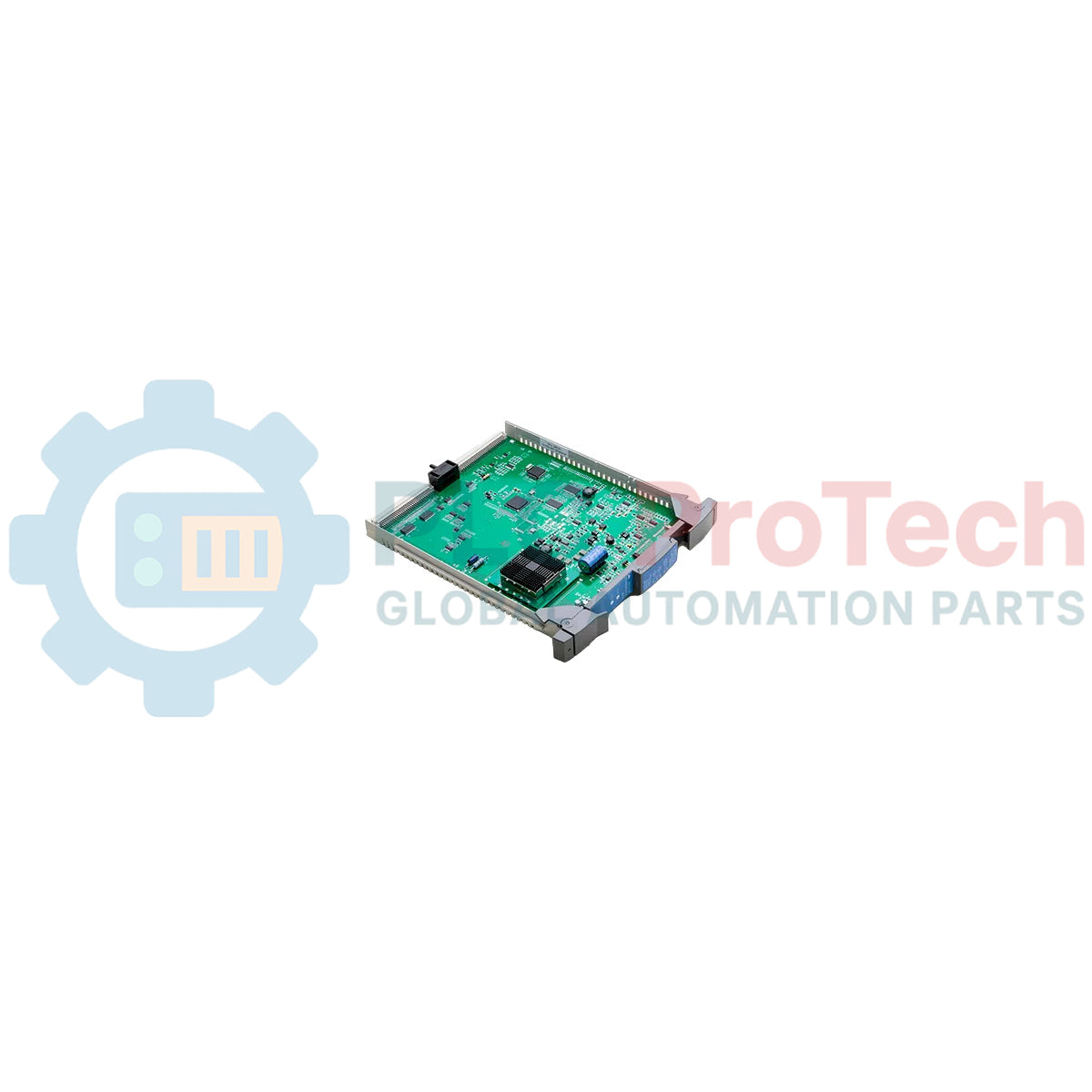

Honeywell 51307190-150 HPM I/O Link Communication Module

SKU 51307190-150

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Honeywell
  • Product No.: 51307190-150
  • Origin United States
  • Product Type: I/O Link Communication Modules
  • Payment: T/T, Western Union
  • Weight: 2.0 kg
  • Dimensions: 280 mm x 150 mm x 50 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Description

Managing critical field communications within Honeywell TDC 3000 systems, the Honeywell 51307190-150 serves as a dedicated High-Performance Process Manager (HPM) I/O Link interface. This module coordinates deterministic data transfers between High-Performance Process Manager controllers and physical field I/O card files, ensuring synchronized processing and minimal signal propagation delay. By utilizing integrated hardware arbitration, the module maintains dual-path redundancy to protect against communication path failures in continuous process environments. The module mounts directly into the HPM card file, establishing clean, high-speed data pathways across the system bus without additional external protocol converters.

Features

  • Dual-Redundant Architecture: Integrates dual link channels to automatically execute failover procedures without host controller intervention.
  • Deterministic Processing: Synchronizes communications to prevent latency spikes during high-density I/O scans.
  • Direct Backplane Interface: Connects directly to the controller chassis, minimizing signal loss and eliminating external cabling.
  • Dynamic Diagnostics: Continuously monitors link health, physical layer integrity, and internal transceiver operations.

Applications

  • Continuous chemical processing facilities requiring uninterruptible loop control.
  • Oil and gas refining distributed control systems (DCS) with high-availability demands.
  • Power generation plant turbine and auxiliary control architectures.
  • Pulp and paper processing machinery requiring coordinated system bus monitoring.

Technical Specifications Table

Parameter Specification Value
Manufacturer Honeywell
Model Number 51307190-150
System Compatibility High-Performance Process Manager (HPM) / TDC 3000
Module Type I/O Link Communication Interface Module
Communication Interface Dual Redundant I/O Link Channels
Mounting Configuration HPM Card File Chassis Slot
Operating Temperature 0 to 60 degC
Relative Humidity 5% to 95% (non-condensing)
Shipping Weight (Calculated) 2.0 kg (4.4 lbs)
Package Dimensions (Calculated) 280 mm x 150 mm x 50 mm
Country of Origin United States

Connections and Interfaces

Connector / Pin Function / Circuit Assignment
Port A Link Primary I/O Link Coaxial Connection
Port B Link Redundant I/O Link Coaxial Connection
Rear Card Connector Proprietary Chassis Backplane Interface (Power and Logic Bus)
Shield Terminal Chassis Frame Ground Reference

Empirical Engineering Insights

Alternative Models & Compatibility

This module is a drop-in replacement for older revisions within the standard HPM catalog. Users upgrading from legacy APM (Advanced Process Manager) units must verify that their HPM card file backplane firmware supports the faster baud rates associated with this newer module. Ensure matching revision states on dual-redundant pairs to prevent synchronization errors during failover execution.

Application Pitfalls & Engineering Notes

A common issue encountered on-site is link deterioration caused by incorrect cable termination. The coaxial paths for Link A and Link B must be terminated at their physical limits with high-precision 75-ohm resistors. Leaving a line unterminated or utilizing degraded couplers causes high RF signal reflection, generating false checksum faults and triggering unintended, rapid card-failover cycles.

Commissioning & Wiring Tips

When deploying redundant modules, always verify that the OK LEDs on both units stabilize before testing manual switchover control via the engineering workstation console. Route the primary and redundant coaxial cables through separate physical conduits or cable trays to minimize the probability of simultaneous physical damage to both communication links.

Installation Guidelines

CRITICAL WARNING: Verify complete physical de-energization of the field card files and chassis ground links before executing any module replacement. Failure to shut down control power or strictly follow ESD grounding steps can permanently damage the sensitive backplane communication transceivers.
1
Attach an approved static dissipative wrist strap to an unpainted grounded surface on the HPM cabinet frame.
2
Align the card with the target slot guides on the HPM chassis backplane, ensuring the component side faces correct alignment marks.
3
Press the module firmly into the slot until the backplane connectors seat completely. Do not use excessive force.
4
Secure the retaining fasteners at the top and bottom of the front panel, then attach the redundant coaxial cables to the Link A and Link B terminals.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the HPM I/O Link module?
It serves as the deterministic communication interface between the HPM controller and the field card files, enabling dual-path serial data transfer.
Can this unit be hot-swapped under live power?
Yes, hot-swapping is supported inside redundant HPM configurations, provided the active partner card has taken over communication duties and synchronization is active.
What cable standard and terminator impedance are required for setup?
The module requires high-quality coaxial cables and must be properly terminated with 75-ohm terminal resistors at each physical boundary of the link.
How do I identify a communication line degradation issue?
Frequent, unexpected failovers between the redundant cards, accompanied by link diagnostic errors on the console, typically indicate bad cable terminations or signal attenuation.
