Description

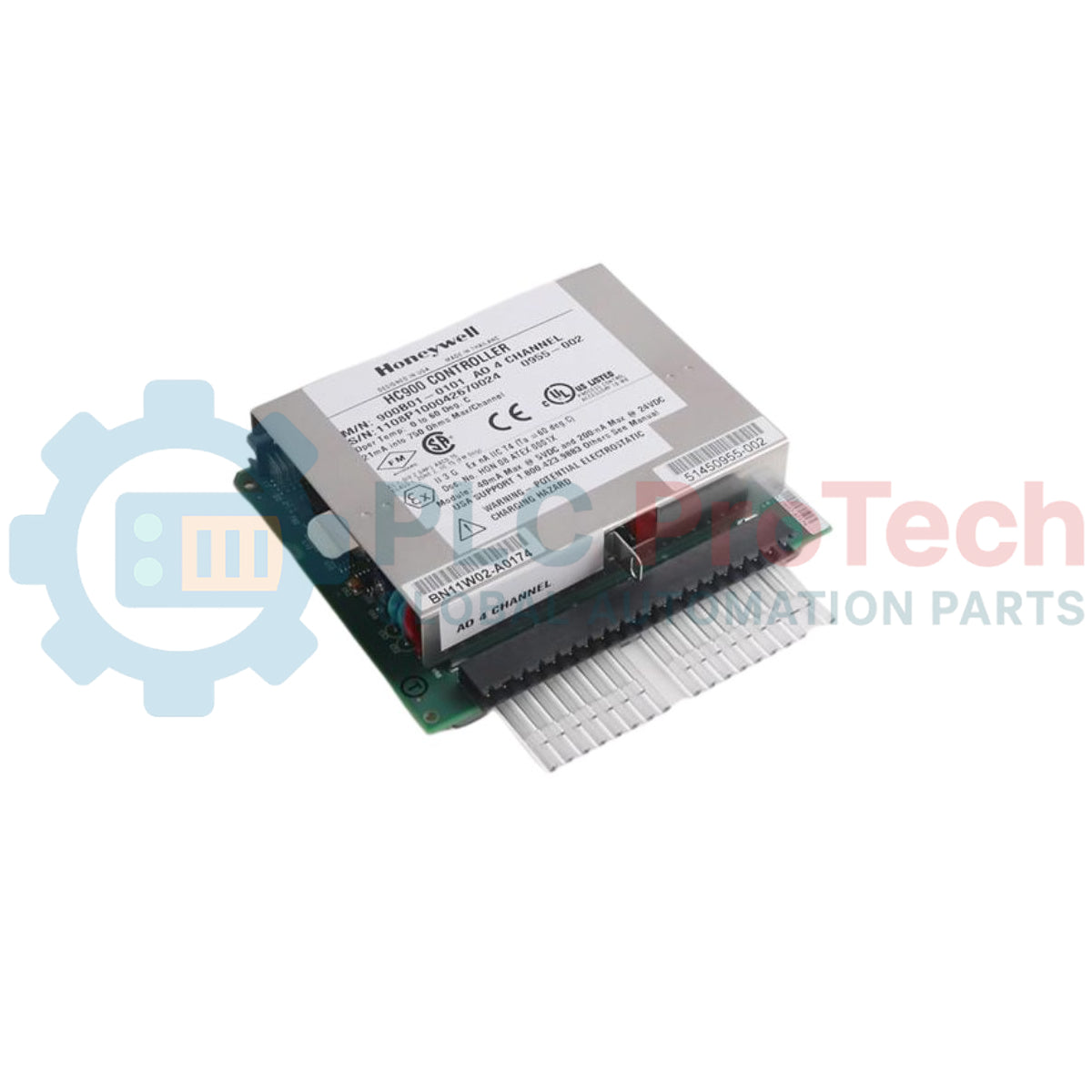

Designed for high-availability process control, the Honeywell 900C75S-0460 serves as a central processing unit within the ControlEdge 900 and HC900 automation platforms. This module handles execution of control logic, data acquisition, and communication tasks. It is configured to license up to 460 function blocks, allowing engineers to deploy complex regulatory control, sequence execution, and safety logic on a unified hardware backplane. With integrated support for redundant controller configurations, this CPU ensures continuous process uptime by facilitating seamless hot-standby switchovers without process interruption.
Features
-
460 Function Block Capacity: Licensed to execute up to 460 standard and advanced control algorithms.
-
Redundancy Ready: Supports dual-CPU configurations with automatic bumpless transfer for critical process operations.
-
Dual Ethernet Interfaces: Integrated RJ45 ports facilitate direct peer-to-peer and host communications.
-
Non-Volatile Memory: Safeguards system configurations and operational state data during power loss.
-
Modbus TCP/IP Support: Native industrial protocol handling for straightforward integration with HMI, SCADA, and third-party networks.
Applications
- Thermal processing, industrial furnaces, and boiler control systems.
- Water and wastewater chemical dosing and filtration processes.
- Batch chemical reactors requiring precise loop tuning and sequencing.
- Oil and gas pipeline monitoring and secondary recovery operations.
Technical Specifications
| Specification Parameter |
Value / Rating |
| Manufacturer |
Honeywell |
| Model Number |
900C75S-0460 |
| Product Series |
ControlEdge 900 / HC900 |
| Module Type |
Central Processing Unit (CPU) Module |
| Function Block Capacity |
460 Function Blocks |
| Communication Interfaces |
2x RJ45 Ethernet Ports, 1x RS485 Serial Port |
| Operating Temperature |
0 to 60 degC (32 to 140 degF) |
| Storage Temperature |
-40 to 70 degC (-40 to 158 degF) |
| Relative Humidity |
5% to 95% RH, non-condensing |
| Power Dissipation |
2.5W (Typical) |
| Shipping Weight (Calculated) |
0.8 kg |
| Package Dimensions (Calculated) |
180mm x 150mm x 50mm |
Connections and Interfaces
| Interface Port |
Physical Type |
Protocol / Function |
| Ethernet 1 |
RJ45 |
ELAN connection, Modbus TCP/IP Master/Slave |
| Ethernet 2 |
RJ45 |
Configuration upload/download, Modbus TCP/IP, Peer-to-Peer |
| Serial Port S1 |
RS485 half-duplex |
Modbus RTU Master/Slave, connection to local operator interfaces |
Empirical Engineering Insights
Alternative Models & Compatibility: The 900C75S-0460 CPU can replace older C75-series modules, but both CPUs in a redundant chassis must match exactly in hardware revision and firmware build. Do not mix firmware levels (e.g., trying to pair a v6.x CPU with a v7.x CPU), as this prevents database synchronization and blocks redundancy setup.
Application Pitfalls & Engineering Notes: Redundant processing requires a dedicated redundant power supply and rack setup. Putting this module on a standard non-redundant backplane operates it as a single CPU without automatic switchover capabilities. To avoid memory battery drainage, store the CPU with the battery terminal disconnected if the unit is being kept as a cold warehouse spare.
Commissioning & Wiring Tips: Use shielded Category 5e or Category 6 Ethernet cables (STP) grounded at the switch to prevent industrial high-frequency noise from interrupting communication sync. Securely tighten the top and bottom mounting module screws to ensure the frame ground makes reliable contact with the rack DIN-rail.
Installation Guidelines
CRITICAL WARNING
Isolate and lock out all rack and external loop power sources prior to module installation. Inserting or extracting modules under load can damage the backplane connectors, cause control signal disruption on adjacent loops, or trigger unintended plant safety shutdowns.
1
Mount the module by sliding it into the designated CPU slot on the rack, ensuring alignment with the plastic guide rails.
2
Push the module firmly until the multi-pin connector on the rear is fully seated into the backplane board.
3
Tighten the upper and lower retaining screws to provide vibration resistance and establish a proper frame ground interface.
4
Connect the communication cables, verifying that the locking tabs click securely into the ports to prevent loose terminations.
