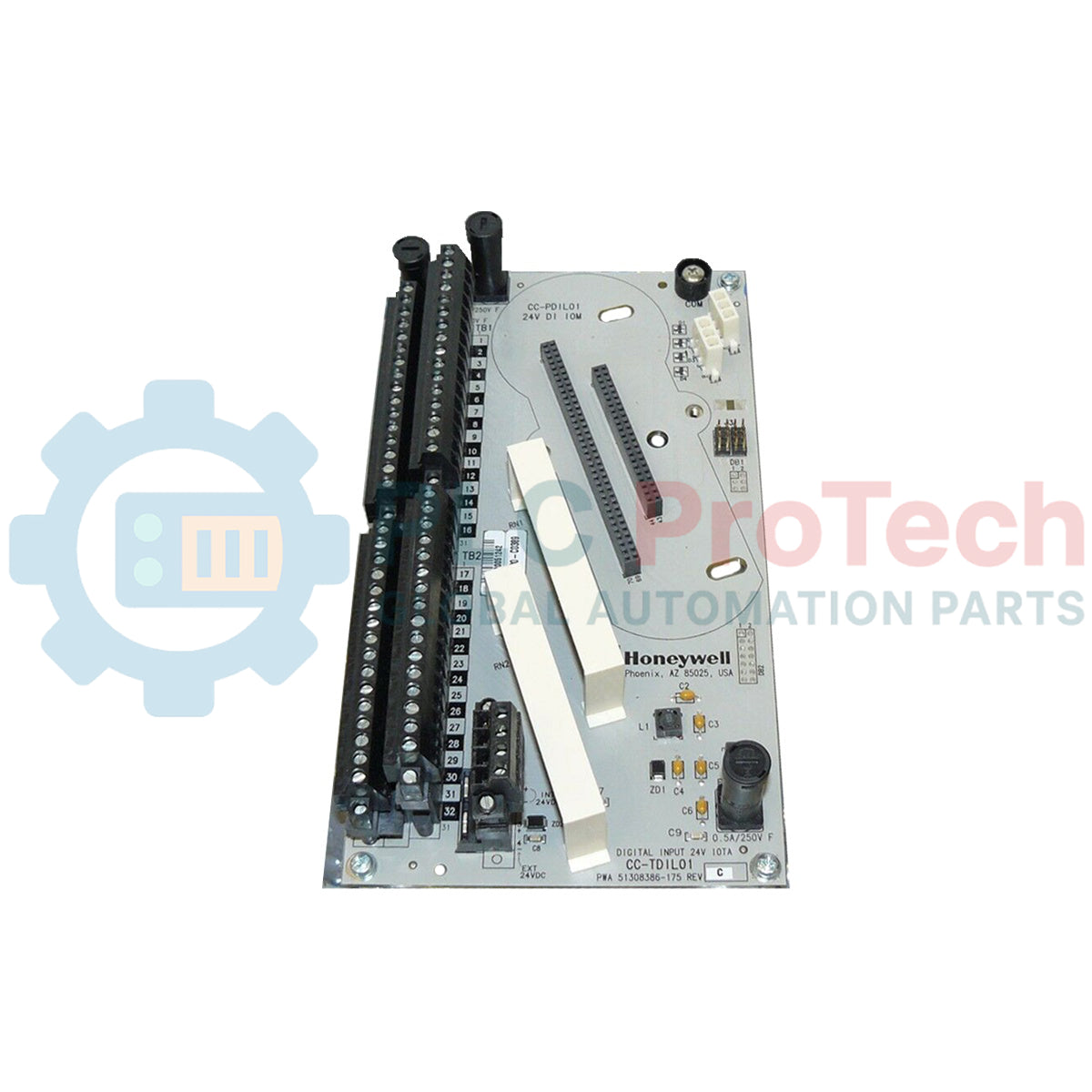

Engineered for high-density discrete signal processing within the Experion PKS C300 control system, the Honeywell CC-TDIL01 serves as a robust 24V DC Digital Input Output Termination Assembly (IOTA). This hardware component provides physical connection interfaces between field wiring and Series C Digital Input Modules, ensuring clean and reliable signal conditioning for critical industrial control applications. Designed specifically for non-redundant 32-channel configurations, it manages field signals effectively while maintaining the strict electrical isolation and signal path integrity required in modern automated process control environments.
| Parameter | Value |
|---|---|
| Manufacturer | Honeywell |
| Model Number | CC-TDIL01 |
| Series Alignment | Series C / Experion PKS C300 |
| Module Type | Digital Input 24V IOTA (Input Output Termination Assembly) |
| Channel Capacity | 32 Channels (Non-Redundant) |
| Nominal Operating Voltage | 24 VDC |
| Nominal Current Draw | 0.190 A @ 24 VDC |
| Thermal Dissipation | 4.22 Watts |
| Shipping Weight (Calculated) | 2.0 kg |
The CC-TDIL01 is standardly paired with the non-redundant Series C Digital Input Module CC-PDIL01. If your process requires high-availability configurations, you must select the CC-TDIL11 IOTA instead, which supports dual-redundant active/standby module pairings. Attempting to fit redundant digital input modules onto the CC-TDIL01 is physically prevented by the single-socket board layout.
When routing field power through the CC-TDIL01, ensure the external power distribution lines are sized appropriately to handle cumulative current surges. Sudden load drops on field switches can trigger minor EMI transients across adjacent terminals on the assembly board if the system's power supply lacks adequate surge-damping characteristics.
Ensure that all cable shields are terminated at a single point, preferably at the cabinet ground bar, and never daisy-chained across the module's 24V common terminal blocks. During commissioning, loop resistance checks must be completed before inserting the CC-PDIL01 active module to prevent damage to internal sensing resistors from short circuits in the field wiring.
CRITICAL WARNING
Isolate and verify the de-energization of all active 24V DC loop feeds and main controller power lines prior to inserting or removing field cables from the CC-TDIL01. Failure to comply can damage the internal termination tracks or cause ESD-related failures on connected active logic modules.
Mount the termination assembly securely onto the cabinet DIN rail and ensure proper grounding of the metal bracket.
Terminate your discrete field wires at the designated terminals, adhering to the specified wire gauge limits.
Verify wiring integrity and check for any potential ground faults before aligning and pressing the digital input module into the card interface socket.
Global Express Shipping
Returns & Warranty
Manufacturer: Honeywell
Product No.: CC-TDIL01
Country of origin:United States
Product Type: PLC I/O Termination Assemblies
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
