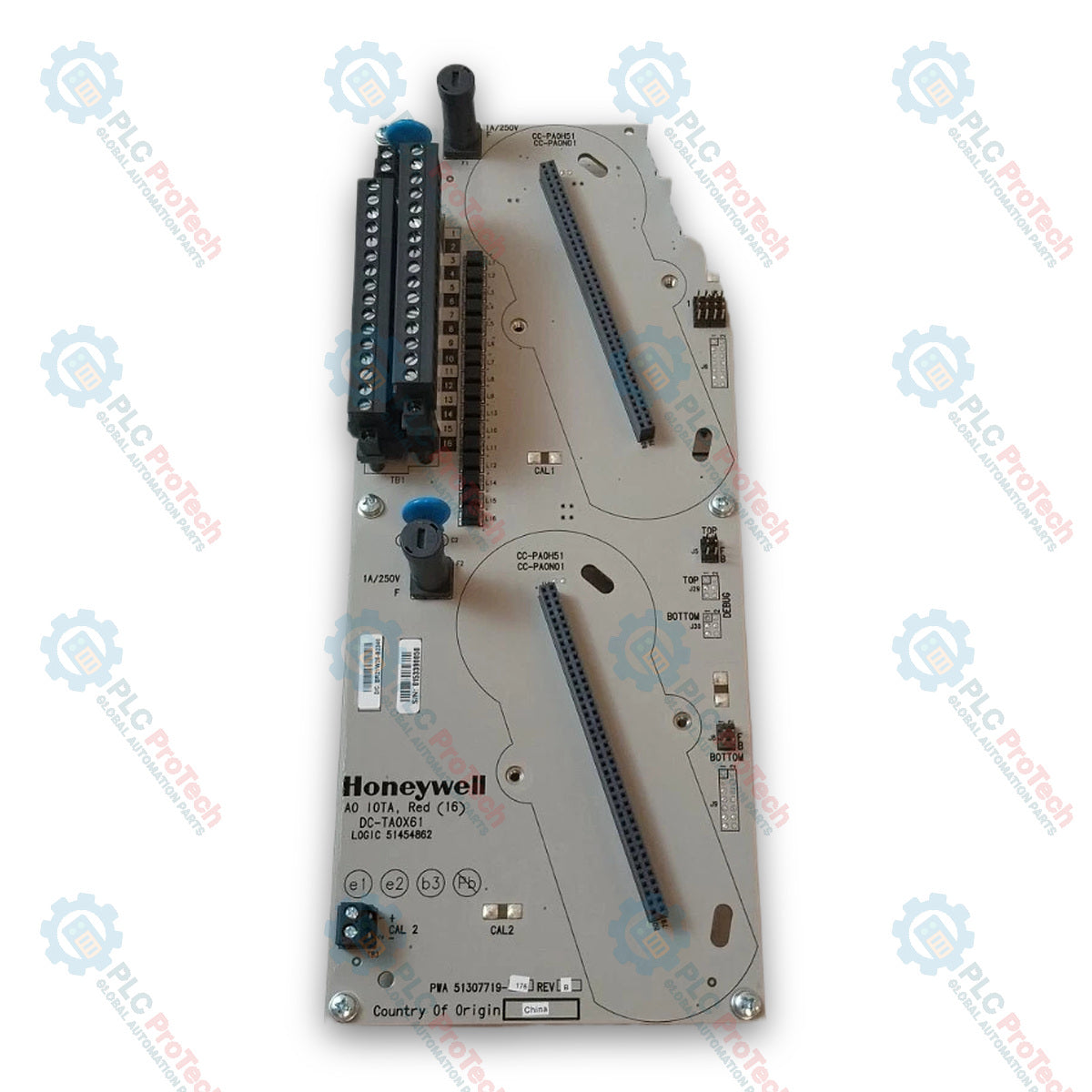

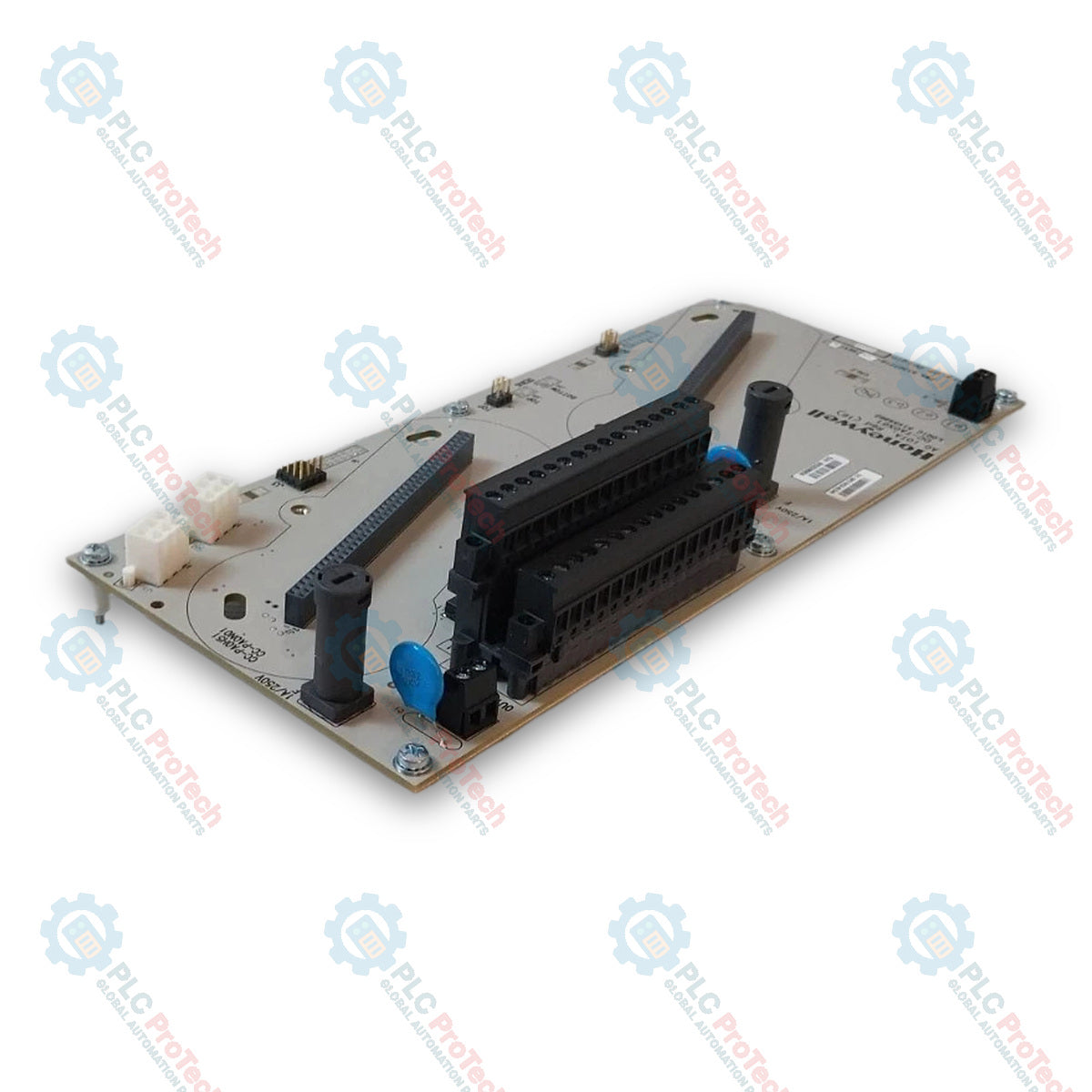

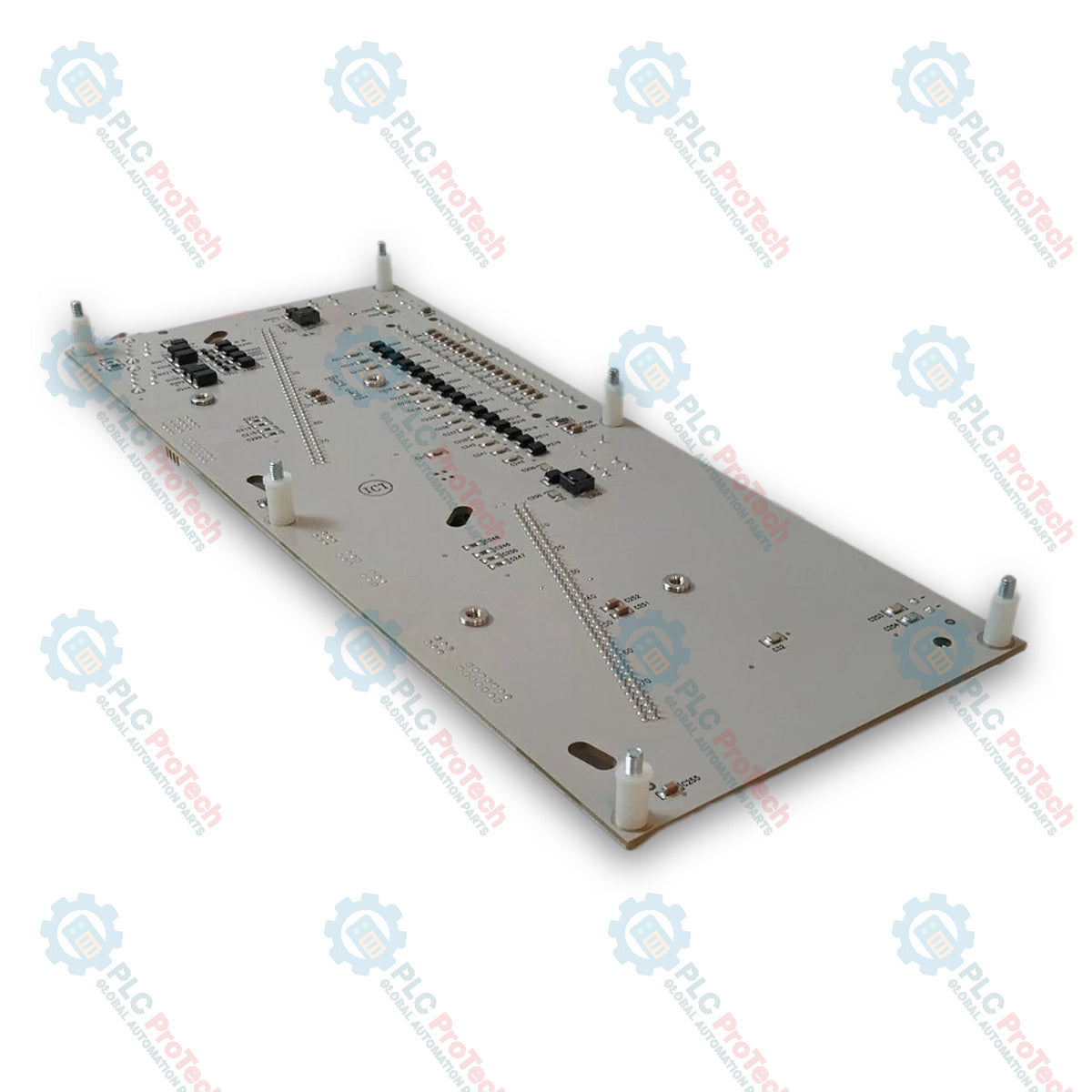

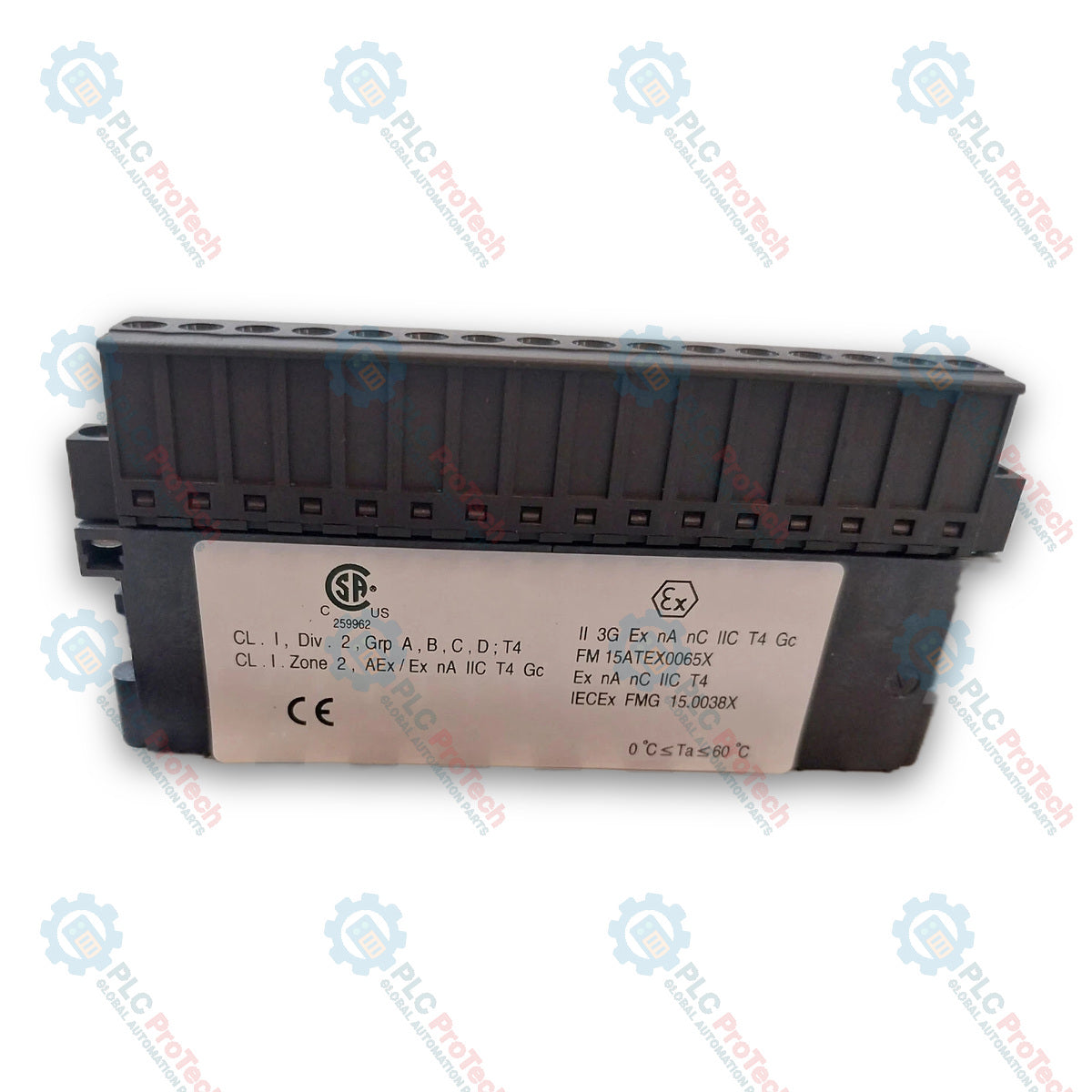

The Honeywell DC-TAOX61 is an Input Output Termination Assembly (IOTA) designed for process automation systems within the Universal Marshalling Solution EP-SCA-100 framework. It functions as an interface unit supporting Analog Output with non-HART and Analog Output with HART configurations when paired with compatible I/O modules like CC-PAON01 or CC-PAOH51 and the CC-UGAO02 Analog Output Barrier module. The assembly provides secure interconnectivity between field instruments in hazardous locations and DCS equipment on the safe side.
| IOTA Model | Supported IO Module | IO Type | Description |
|---|---|---|---|
| DC-TAOX61 | CC-PAON01 | AO | Analog Output with non-HART |
| DC-TAOX61 | CC-PAOH51 | AO-HART | Analog Output with HART |
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Country of Origin | China |
| Compatible Barrier Module | CC-UGAO02 |
| System Assembly | EP-SCA-100 / CC-UGIA01 |
| Operating Nominal Supply Voltage | 24 VDC |
| Barrier Rated Current | 69 mA at 24 V |
| Barrier Power Consumption | 1.628 W at field current of 21.1 mA with 200 ohm load |
| Isolation Voltage (Power/DCS to Field) | 1500 VAC |
| Maximum Load | 650 ohms (including cable resistance) |
| DCS Interface Connector | 37 pin DSUB connector on CC-UGIA01 |
| HAZLOC Terminal Type | 3 tier terminal blocks on CC-UGIA01 |
| Operating Temperature | -40 degC to +70 degC |
| Storage / Transport Temperature | -40 degC to +85 degC |
| Permissible Relative Humidity | 5% to 95% (non-condensing) |
| Operational Vibration | 0.5g at 10 Hz to 150 Hz |
| Non-Operational Vibration | 1g at 10 Hz to 150 Hz |
| Operational Shock | 5g |
| Non-Operational Shock | 15g |
| Ingress Protection Rating | IP20 (as per IEC 60529) |
| Flammability Rating | V0 (as per UL 94) |
| Maximum Safe Voltage (Um) | 250 V |
| Open Circuit Voltage (Uo) | 25.2 V |
| Short Circuit Current (Io) | 113.1 mA |
| Power (Po) | 712.7 mW |
Global Express Shipping
Returns & Warranty
Manufacturer: Honeywell
Product No.: DC-TAOX61
Country of origin:United States
Product Type: Analog Output IOTA Module
Payment: T/T, Western Union
Weight: 250g
Dimensions: 141.5 mm x 85.75 mm x 10 mm
Shipping port: Xiamen
Warranty: 12 months
