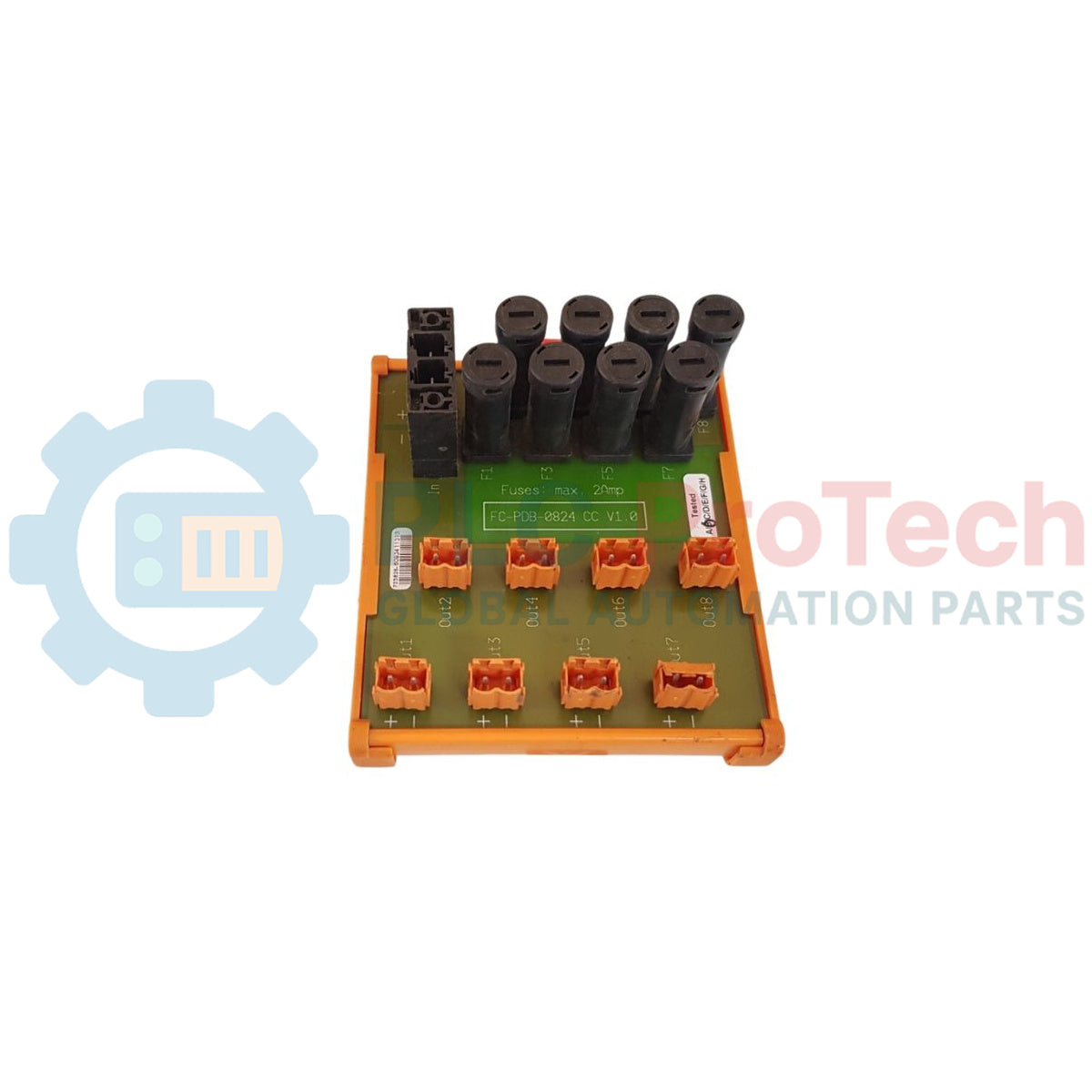

Honeywell FC-PDB-0824 Power Distribution Board

SKU FC-PDB-0824

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Honeywell
  • Product No.: FC-PDB-0824
  • Origin United States
  • Product Type: Power Distribution Boards
  • Payment: T/T, Western Union
  • Weight: 2.0 kg
  • Dimensions: 94 x 109 x 71 mm (L x W x H)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Power Distribution Boards Safety Manager

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Honeywell FC-PDB-0824 Power Distribution Board

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Honeywell FC-PDB-0824 is an 8-channel, 24 Vdc Power Distribution Board designed for process control and safety applications within the Honeywell Safety Manager architecture. The board provides fused DC power distribution from dual 24 Vdc supply buses to field termination assemblies (FTAs), modules, or internal cabinet loads. It features dual power input capability for redundant supply configurations, board-level status monitoring via an integrated alarm contact, and field-replaceable channel fuses with blown-fuse LED indicators.

Operating within the Safety Manager power distribution network, the FC-PDB-0824 ensures continuous, reliable DC voltage routing while maintaining circuit isolation and fault detection across system components.

Features

  • Dual 24 Vdc Inputs: Supports redundant primary DC supply feeds with diode isolation.
  • 8 Fused Output Channels: Distributes 24 Vdc power across eight individually fused branch circuits.
  • Visual Status Indication: Individual channel LED indicators light up upon fuse failure for fast diagnostic evaluation.
  • Integrated Alarm Contact: Form-C dry contact output triggers system-level alarms during power loss or blown fuse conditions.
  • Conformal Coating: Applied to protect internal electronic circuitry against harsh environmental conditions and airborne contaminants.
  • DIN Rail Mounting: Compact form factor designed for standard DIN rail installation within Safety Manager cabinets.

Applications

  • Safety Instrumented Systems (SIS)
  • Emergency Shutdown (ESD) Systems
  • Fire and Gas (F&G) Detection Networks
  • Power distribution for Field Termination Assemblies (FTAs)
  • Auxiliary cabinet load power routing in Experion PKS / Safety Manager environments

Technical Specifications

Parameter Specification
Manufacturer Honeywell
Model FC-PDB-0824
Product Type Power Distribution Board
Nominal Input Voltage 24 Vdc
Input Voltage Range 18 Vdc to 31.2 Vdc (+30% / -15%)
Number of Channels 8 channels
Maximum Current per Channel 2 A
Total Board Current Rating 16 A max
Input Redundancy Dual input (A / B)
Operating Temperature -5 degC to +70 degC (+23 degF to +158 degF)
Storage Temperature -40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity 5% to 95% (non-condensing)
Coating Conformal Coated (FC Prefix)

Installation Guidelines

  • Cabinet Mount: Securely latch the module onto the enclosure's standard DIN rail.
  • Power Cabling: Ensure 24 Vdc power feed lines match system gauge specifications and polarity assignments prior to energization.
  • Grounding: Connect the cabinet safety earth bar directly to the system grounding point to maintain EMC integrity.
  • Fuse Replacement: Always replace blown fuses with identical rated slow-blow or fast-acting fuses according to the specific branch load configuration.
  • Cooling: Maintain unobstructed vertical air gap spacing above and below the board assembly to support adequate convective heat dissipation.

Compliance and Certifications

  • Safety Instrumented Systems: Compliant with IEC 61508 / IEC 61511 (Up to SIL 3 applications)
  • Electrical Safety: IEC 61010-1, UL 508
  • Hazardous Locations: FM Class I, Division 2, Groups A, B, C, D
  • Electromagnetic Compatibility: IEC 61000-6-2
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the Honeywell FC-PDB-0824 used for?
The Honeywell FC-PDB-0824 is an 8-channel, 24 Vdc power distribution board used to route fused power feeds to modules and Field Termination Assemblies in Honeywell Safety Manager systems.
What system does the FC-PDB-0824 module belong to?
The FC-PDB-0824 belongs to the Honeywell Safety Manager system and integrates with its 24 Vdc power distribution architecture.
What voltage range does the Honeywell FC-PDB-0824 support?
The board operates on a nominal 24 Vdc supply with an acceptable voltage range of 18 Vdc to 31.2 Vdc.
How many channels does the FC-PDB-0824 board provide?
The FC-PDB-0824 board provides 8 individually fused 24 Vdc distribution output channels.
