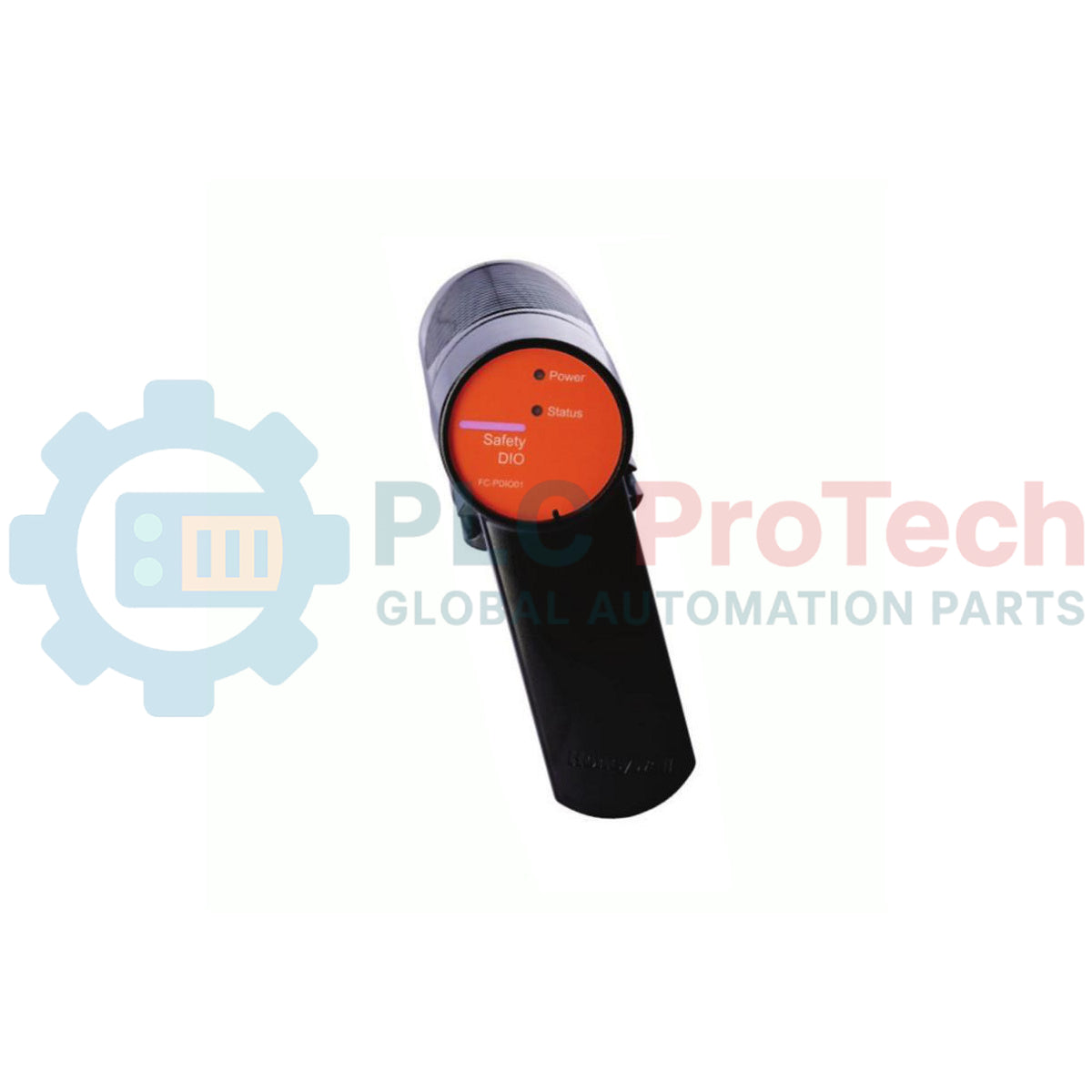

Designed to execute high-integrity digital input and output processing within the Honeywell Safety Manager control architecture, the Honeywell FC-PDIO01 serves as a critical interface for SIL 3 safety-instrumented functions. This module handles safety-critical field signals by monitoring input status and controlling output actuators under stringent fail-safe parameters. By integrating comprehensive internal diagnostics and dual-microprocessor monitoring, the Honeywell FC-PDIO01 ensures that physical loops are continuously evaluated for short-circuits, open-loops, and ground faults, guaranteeing high process availability and immediate shutdown execution when safety thresholds are breached.
| Parameter | Technical Specification Value |
|---|---|
| Manufacturer | Honeywell |
| Model Number | FC-PDIO01 |
| System Platform | Safety Manager / Fail Safe Control (FSC) |
| Module Type | Safety Digital Input/Output Module |
| Nominal Operating Voltage | 24 Vdc |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Internal Power Dissipation | 5 W (typical) |
| Galvanic Isolation | Tested to 1.5 kVac (Field to Logic) |
| Operating Temperature Range | 0 to 60 degC |
| Shipping Weight (Calculated) | 1.85 kg |
| Package Dimensions (Calculated) | 330 mm x 250 mm x 50 mm |
The FC-PDIO01 module operates inside standard Safety Manager chassis slots and mates directly with specific Field Termination Assemblies (FTAs). When migrating older FSC system hardware, verify your Safety Builder software release. Systems running firmware versions prior to R150 may require targeted block updates or hardware definition file updates to recognize the active diagnostics of the FC-PDIO01.
A common issue during field commissioning is the "Line Monitoring Fault" error. If your safety loops are configured in Safety Builder for active diagnostic line monitoring, you must install appropriate end-of-line (EOL) resistors at the field device. Running line-monitored loops without EOL termination will cause the module to flag an open-circuit fault, preventing the respective safety loop from closing.
Always ensure that field signal shields are terminated on the designated ground bar of the Field Termination Assembly (FTA) and never directly on the safety controller's logical ground. Grounding inconsistencies can introduce common-mode noise, which is interpreted by the high-speed microprocessor of the FC-PDIO01 as a hardware diagnostic anomaly, leading to false diagnostic alarms or module resets.
CRITICAL WARNING:
Ensure the Safety Manager rack power is locked out and de-energized before inserting or extracting the module if hot-swap capability is not explicitly enabled and verified in your safety controller's firmware config. Discharging static on an ESD-safe grounding point prior to handling the module is mandatory to prevent terminal destruction.
Global Express Shipping
Returns & Warranty
Manufacturer: Honeywell
Product No.: FC-PDIO01
Country of origin:United States
Product Type: Safety Digital I/O Modules
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 330 mm x 250 mm x 50 mm
Shipping port: Xiamen
Warranty: 12 months
