LG1093AA03

Honeywell

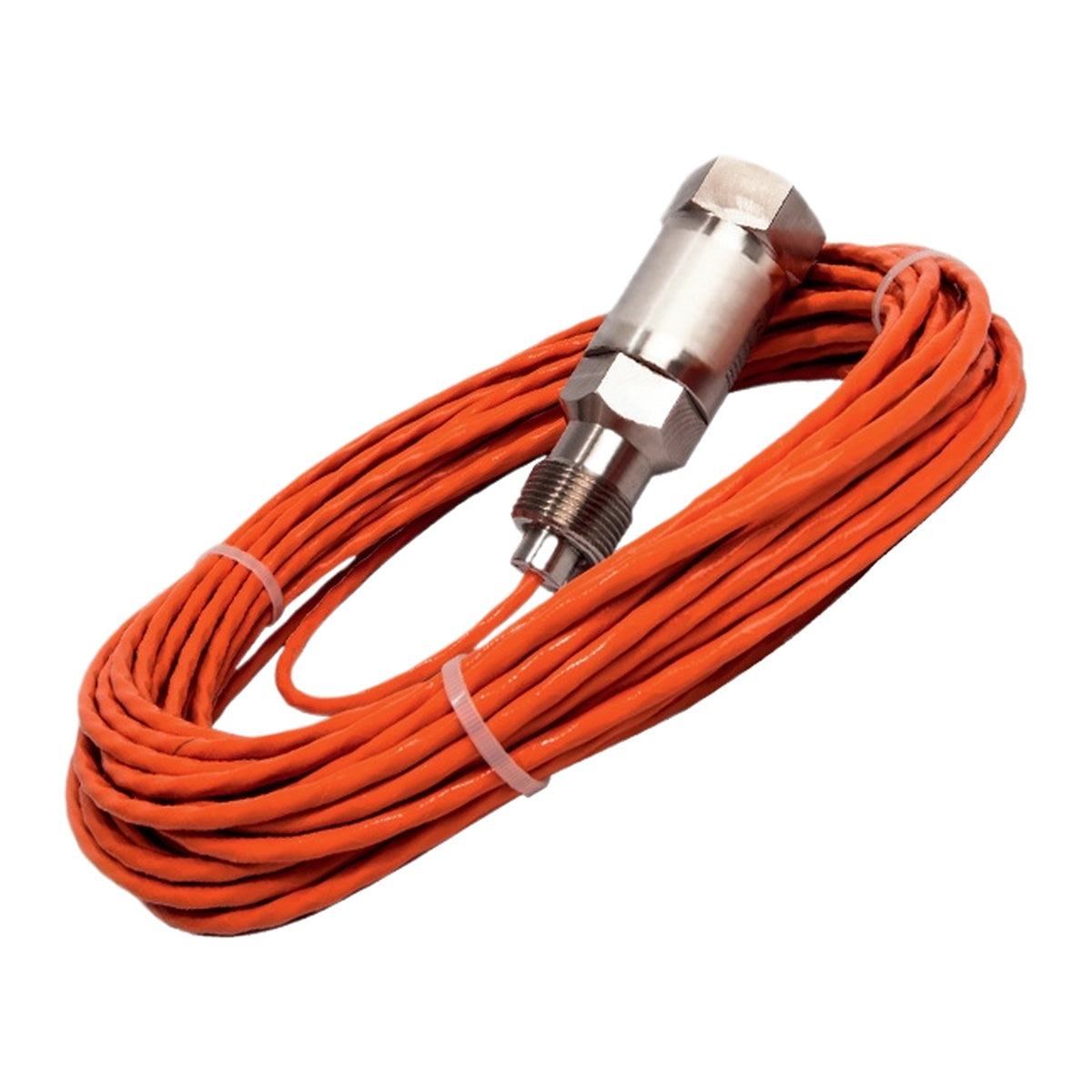

Honeywell LG1093AA03 LG1093 UV Flame Sensor

SKU LG1093AA03

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Honeywell
  • Product No.: LG1093AA03
  • Origin United States
  • Product Type: Flame Detectors
  • Payment: T/T, Western Union
  • Weight: 1.5 kg
  • Dimensions: 130 mm x 130 mm x 85 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Flame Detectors

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Honeywell LG1093AA03 LG1093 UV Flame Sensor

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Honeywell LG1093AA03 is an ultraviolet (UV) flame detector engineered for industrial power generation gas turbine installations. The LG1093AA03 senses ultraviolet radiation emitted by hydrocarbon flames and provides a signal indicating flame presence or absence. Utilizing a Geiger-Mueller phototube sensing element, the Honeywell LG1093AA03 delivers rapid detection times while maintaining tolerance to black body radiation. Note that model LG1093AA03 is replaced by model LG1093AA24.

Features

  • High sensitivity with fast response time (0.1 sec typical)
  • Geiger Mueller-type phototube sensor detecting ultraviolet band at 1800 to 2600 angstroms
  • Solar blind design tolerant to black body radiation
  • Long service life featuring two-year shelf life and 10,000 hours MTBF
  • Qualified component on General Electric gas turbines

Applications

  • Industrial power generation gas turbine installations
  • Land-based and offshore power generation facilities
  • Pumping stations
  • Shipboard power generation systems

Technical Specifications

Parameter Specification
Manufacturer Honeywell
Sensor Type Geiger Mueller-type phototube
Wavelength Band 1800 to 2600 angstroms
Response Time 0.1 sec (typical)
Operating Life / Reliability 10,000 hours MTBF
Shelf Life 2 years
Replacement Model LG1093AA24

Installation Guidelines

  • Ensure sensor-to-amplifier operating cable distances do not exceed 1000 feet.
  • Properly route signal and power wiring to mitigate potential electromagnetic or radio frequency interference (EMI/RFI).
  • Follow all applicable hazardous area precautions during handling and mounting.

Compliance and Certifications

  • Factory Mutual: Approval for explosive atmospheres
  • CE Mark: EMC Directive 89/336/EEC
  • European Directive: LVD 73/23/EEC
  • ATEX Directive: Explosive Atmosphere 94/9/EC
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What spectral range does the UV flame detector monitor?
The device detects ultraviolet radiation within the wavelength band of 1800 to 2600 angstroms.
What is the typical response time for this flame monitoring sensor?
The typical response time for the sensor is 0.1 seconds.
What is the replacement model for LG1093AA03?
The model LG1093AA03 has been replaced by LG1093AA24.
Reviews

More from this brand

Honeywell 8C-TAIXA1 51307125-175 Series 8 Non-Redundant Analog Input IOTA Assembly Coated
8C-TAIXA1Honeywell 8C-TAIXA1 51307125-175 Series 8 Non-Redundant Analog Input IOTA Assembly Coated
Honeywell CC-TDOD61 51307089-175 Experion Series C 12-inch Redundant Digital Output IOTA
CC-TDOD61 51307089-175Honeywell CC-TDOD61 51307089-175 Experion Series C 12-inch Redundant Digital Output IOTA
Honeywell 621-6550 IPC 621 Digital Output Module
621-6550Honeywell 621-6550 IPC 621 Digital Output Module
Honeywell 2MLT-DMMA MasterLogic-200 Dust Protection Module
2MLT-DMMAHoneywell 2MLT-DMMA MasterLogic-200 Dust Protection Module

LG1093AA03

Stock & lead time on request

Call
  • LG1093AA03
1 1

Honeywell LG1093AA03 LG1093 UV Flame Sensor

Only 2 item(s) left in stock

  • Manufacturer: Honeywell

  • Product No.: LG1093AA03

  • Country of origin:United States

  • Product Type: Flame Detectors

  • Payment: T/T, Western Union

  • Weight: 1500g

  • Dimensions: 130 mm x 130 mm x 85 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

The Honeywell LG1093AA03 is an ultraviolet (UV) flame detector engineered for industrial power generation gas turbine installations. The LG1093AA03 senses ultraviolet radiation emitted by hydrocarbon flames and provides a signal indicating flame presence or absence. Utilizing a Geiger-Mueller phototube sensing element, the Honeywell LG1093AA03 delivers rapid detection times while maintaining tolerance to black body radiation. Note that model LG1093AA03 is replaced by model LG1093AA24.

Features

  • High sensitivity with fast response time (0.1 sec typical)
  • Geiger Mueller-type phototube sensor detecting ultraviolet band at 1800 to 2600 angstroms
  • Solar blind design tolerant to black body radiation
  • Long service life featuring two-year shelf life and 10,000 hours MTBF
  • Qualified component on General Electric gas turbines

Applications

  • Industrial power generation gas turbine installations
  • Land-based and offshore power generation facilities
  • Pumping stations
  • Shipboard power generation systems

Technical Specifications

Parameter Specification
Manufacturer Honeywell
Sensor Type Geiger Mueller-type phototube
Wavelength Band 1800 to 2600 angstroms
Response Time 0.1 sec (typical)
Operating Life / Reliability 10,000 hours MTBF
Shelf Life 2 years
Replacement Model LG1093AA24

Installation Guidelines

  • Ensure sensor-to-amplifier operating cable distances do not exceed 1000 feet.
  • Properly route signal and power wiring to mitigate potential electromagnetic or radio frequency interference (EMI/RFI).
  • Follow all applicable hazardous area precautions during handling and mounting.

Compliance and Certifications

  • Factory Mutual: Approval for explosive atmospheres
  • CE Mark: EMC Directive 89/336/EEC
  • European Directive: LVD 73/23/EEC
  • ATEX Directive: Explosive Atmosphere 94/9/EC
Key Features:
#Flame Detectors

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Honeywell LG1093AA03 LG1093 UV Flame Sensor

Download Open in new tab

What spectral range does the UV flame detector monitor?
The device detects ultraviolet radiation within the wavelength band of 1800 to 2600 angstroms.

What is the typical response time for this flame monitoring sensor?
The typical response time for the sensor is 0.1 seconds.

What is the replacement model for LG1093AA03?
The model LG1093AA03 has been replaced by LG1093AA24.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
