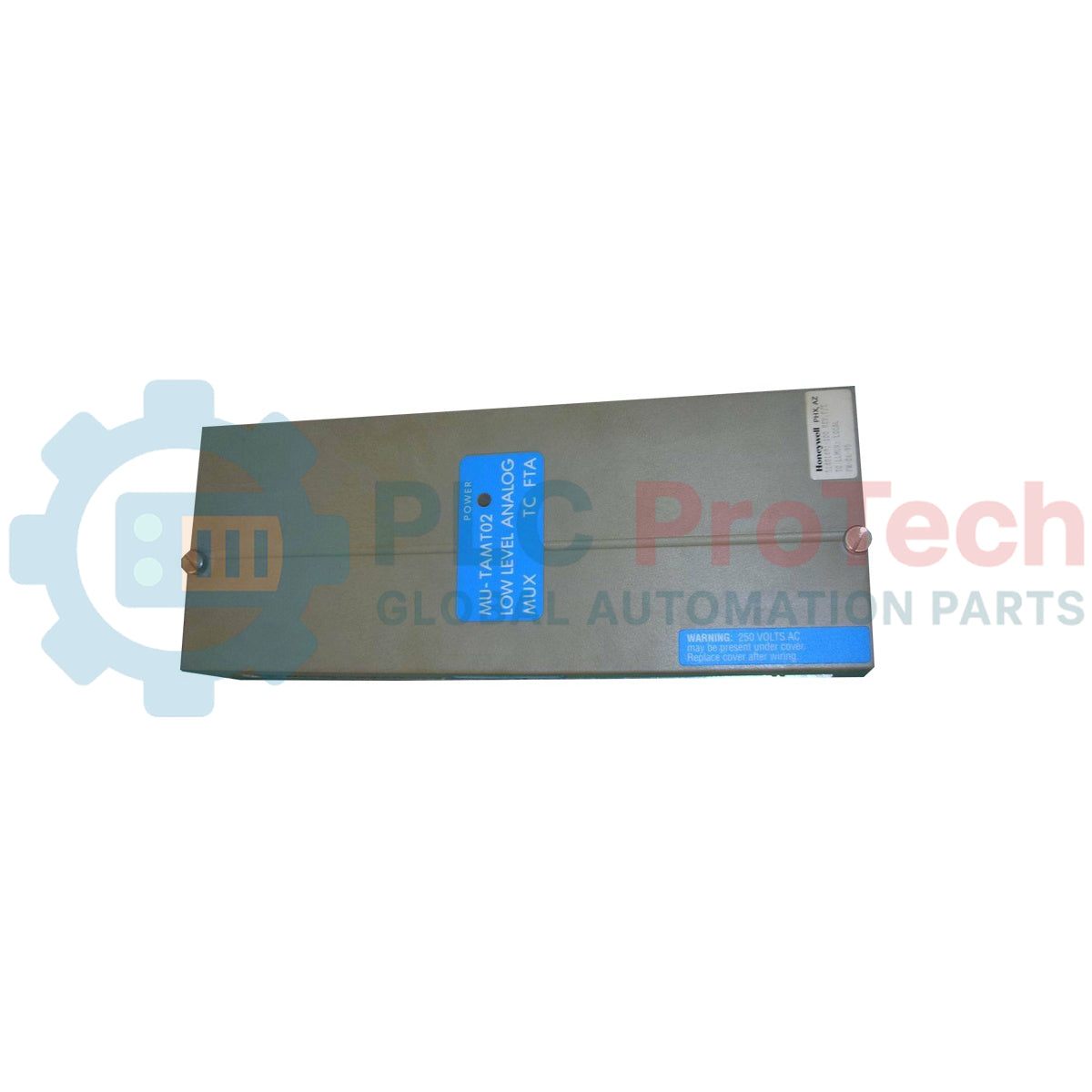

Distributed control systems rely on robust field termination architectures for clean signal processing. The MU-TAMT02 functions as a specialized low level analog input multiplexer Field Termination Assembly (FTA) within the legacy Honeywell TDC 3000 control system framework. This module is engineered to consolidate up to 16 low-level analog input channels, primarily interfacing with thermocouple (TC) field sensors. By multiplexing these field signals, the unit significantly reduces physical field wiring footprints and minimizes the number of high-level I/O channels required back at the controller rack.
Operating as a critical interface link, the MU-TAMT02 provides essential signal routing, isolation, and integrated cold junction compensation (CJC). These functions preserve the signal integrity of weak millivolt inputs across long transmission lines before digitization. Designed for high availability industrial process plants, this FTA ensures stable communication between field-level thermal sensors and the primary DCS processor.
| Honeywell |
| MU-TAMT02 |
| TDC 3000 |
| Low Level Analog Input Multiplexer Field Termination Assembly (LLMUX FTA) |
| 16 channels |
| Low-level millivolt / Thermocouple (TC) |
| Onboard Cold Junction Compensation (CJC) |
| Standard FTA Mounting Channel / Panel Mount |
| 5.0 kg |
| Terminal Group | Function Description |
|---|---|
| Terminals 1 to 16 | Low-level Analog / Thermocouple Input Channels (Positive / Negative pairs) |
| Shield Terminals | Dedicated shield-drain ground connections for noise reduction |
| System Cable Interface | Multi-pin connector interfacing directly with LLMUX controller cards |
