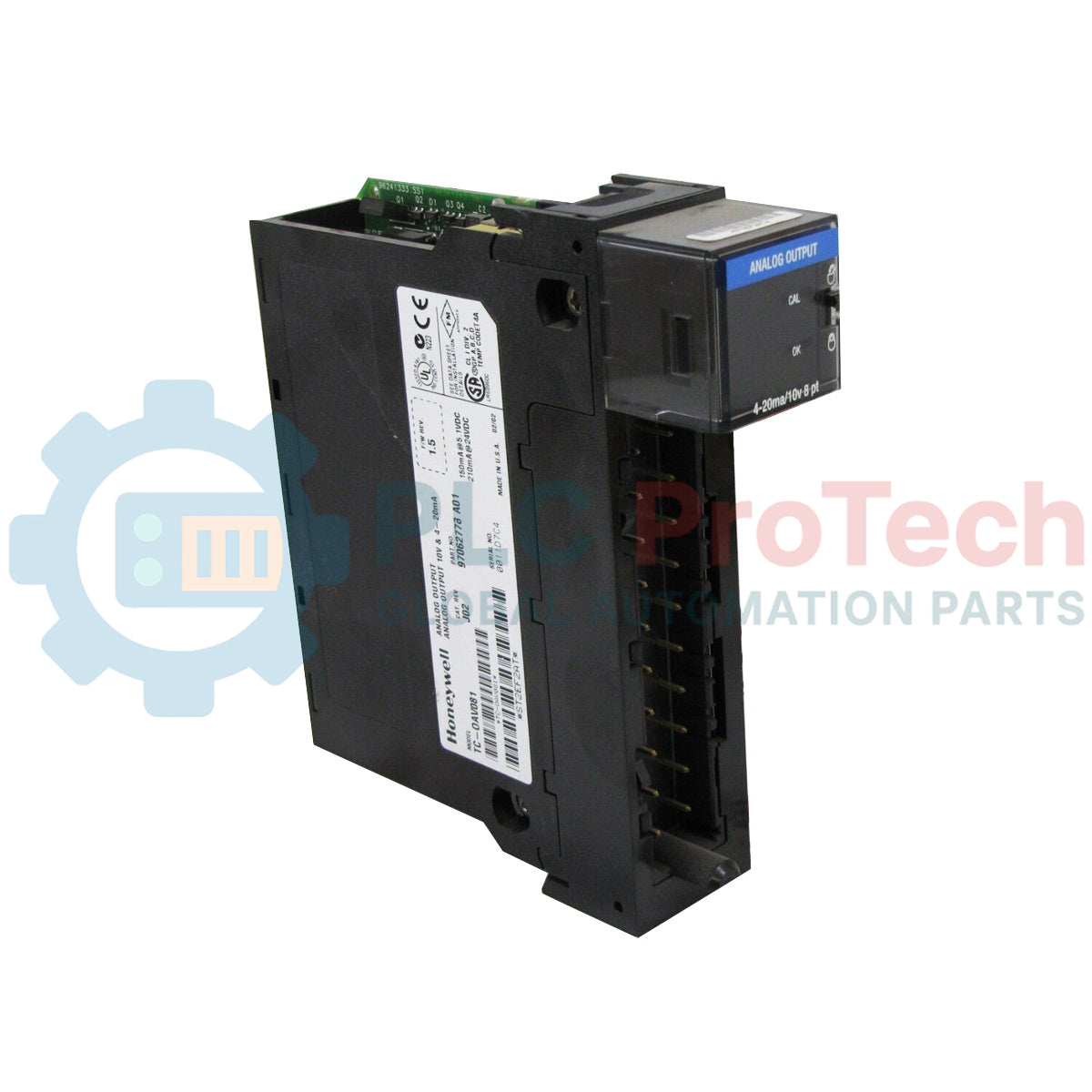

Engineered for seamless integration within Honeywell control systems, the TC-OAV081 serves as a high-precision analog output interface. This module provides reliable digital-to-analog conversion to drive final control elements such as control valves, actuators, and variable speed drives. Utilizing eight independent channels, it supports both voltage and current output configurations to accommodate diverse field device requirements.
The TC-OAV081 is designed to maintain signal integrity in demanding industrial environments, featuring robust open and short-circuit electronic protection alongside continuous overvoltage safety features. Its modular form factor ensures straightforward installation and maintenance within standard system chassis layouts.
| Manufacturer | Honeywell |
| Part Number | TC-OAV081 |
| Module Type | Analog Output |
| Number of Channels | 8 |
| Voltage Output Range | ±10.4 V |
| Current Output Range | 0 to 21 mA |
| Voltage Resolution | 320 µV per count |
| Current Resolution | 650 nA per count |
| Overvoltage Protection | 24 VAC/VDC continuous |
| Short Circuit Protection | Electronically current limited to 21 mA or less |
| Power Dissipation | 6.9 W maximum |
| Compatible Terminal Block | TC-TBNH (20-position) |
| Shipping Weight | 1.5 kg |
| Connection Component | Specification / Compatibility |
|---|---|
| Terminal Block Type | TC-TBNH, 20-position terminal block |
| Signal Type | Shielded twisted pair (recommended) |
Ensure the control system chassis is powered down before inserting or removing the TC-OAV081 module. Secure the module firmly into its slot and verify that the front-facing latch is engaged. When wiring the TC-TBNH 20-position terminal block, maintain separation between low-voltage analog signal lines and high-voltage power cables to prevent electromagnetic interference. Properly ground all cable shields at the designated chassis grounding point.
