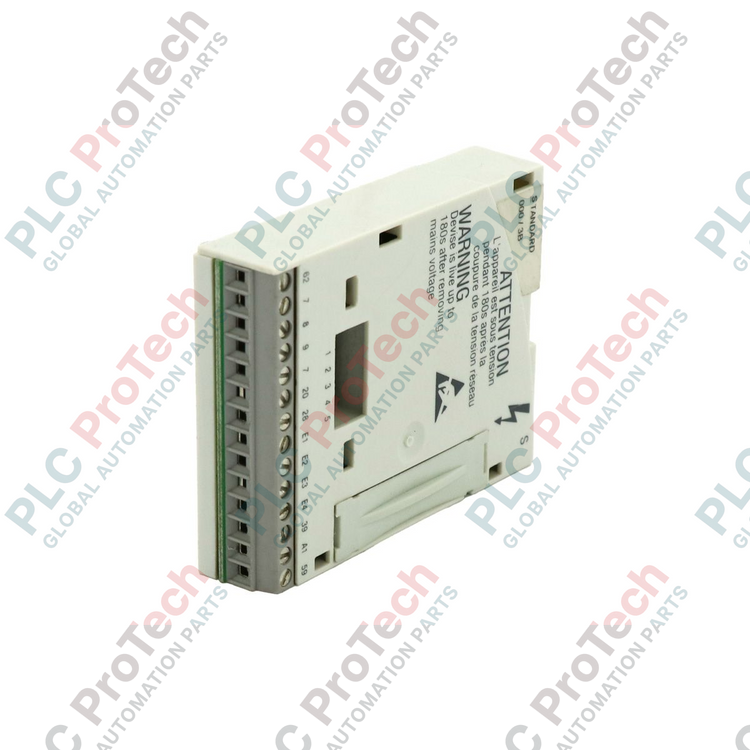

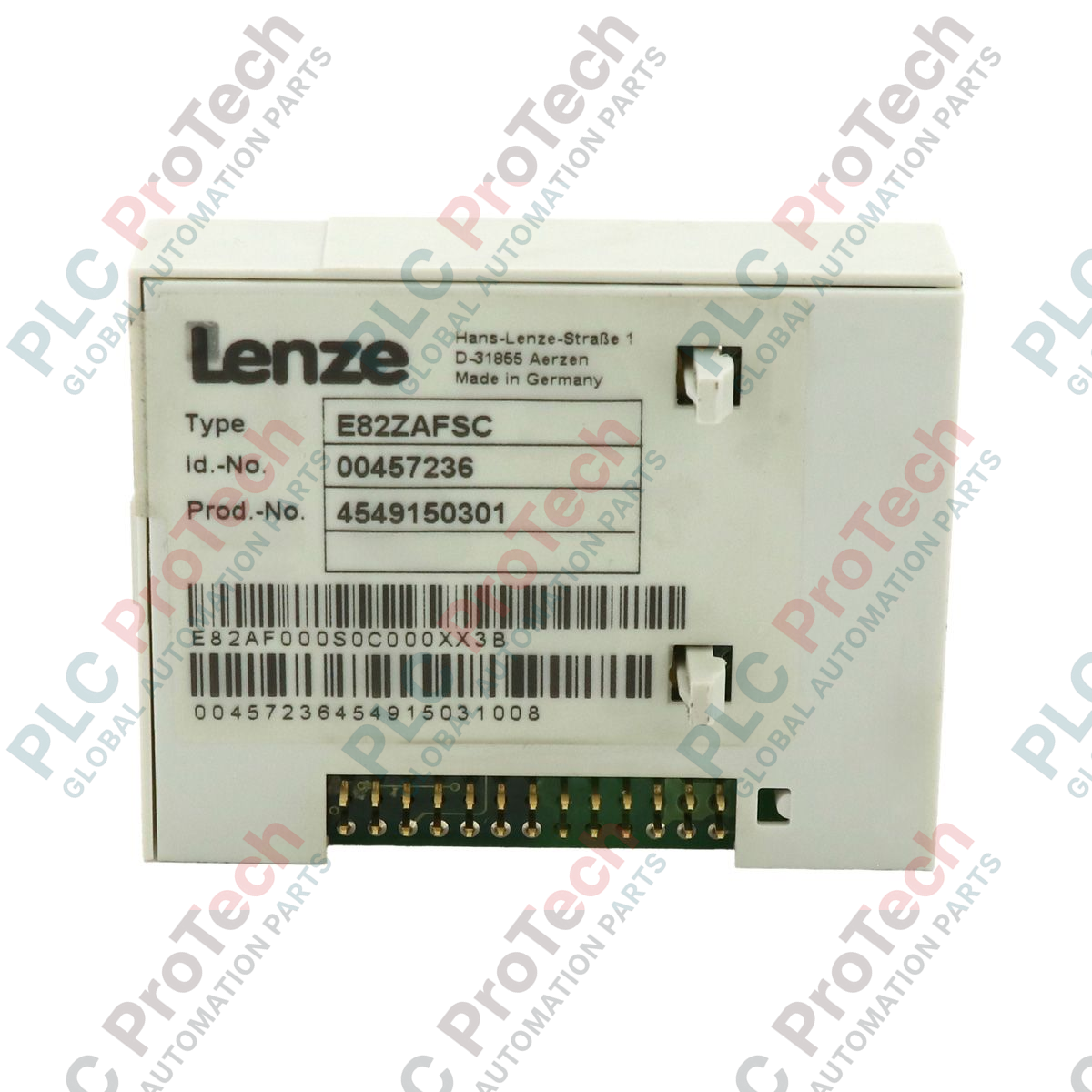

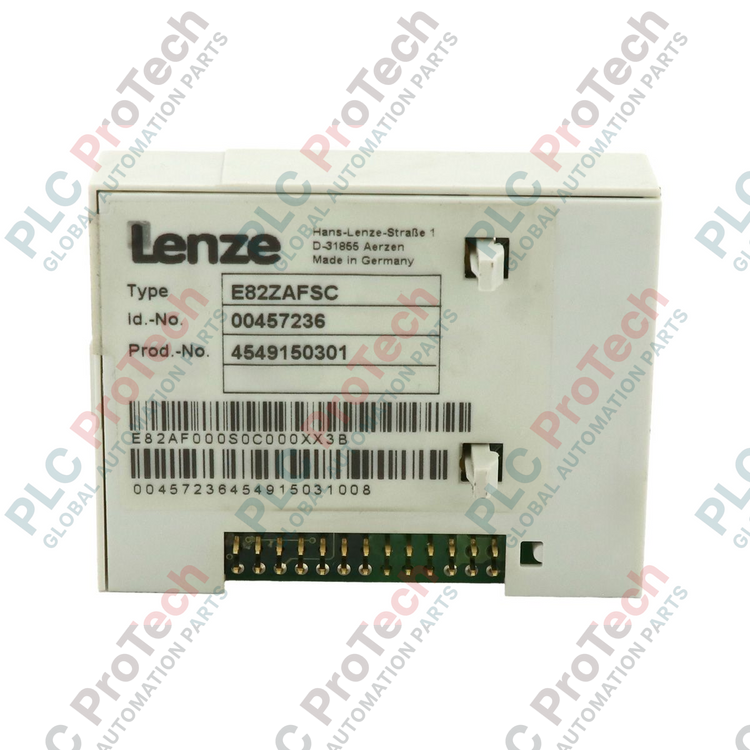

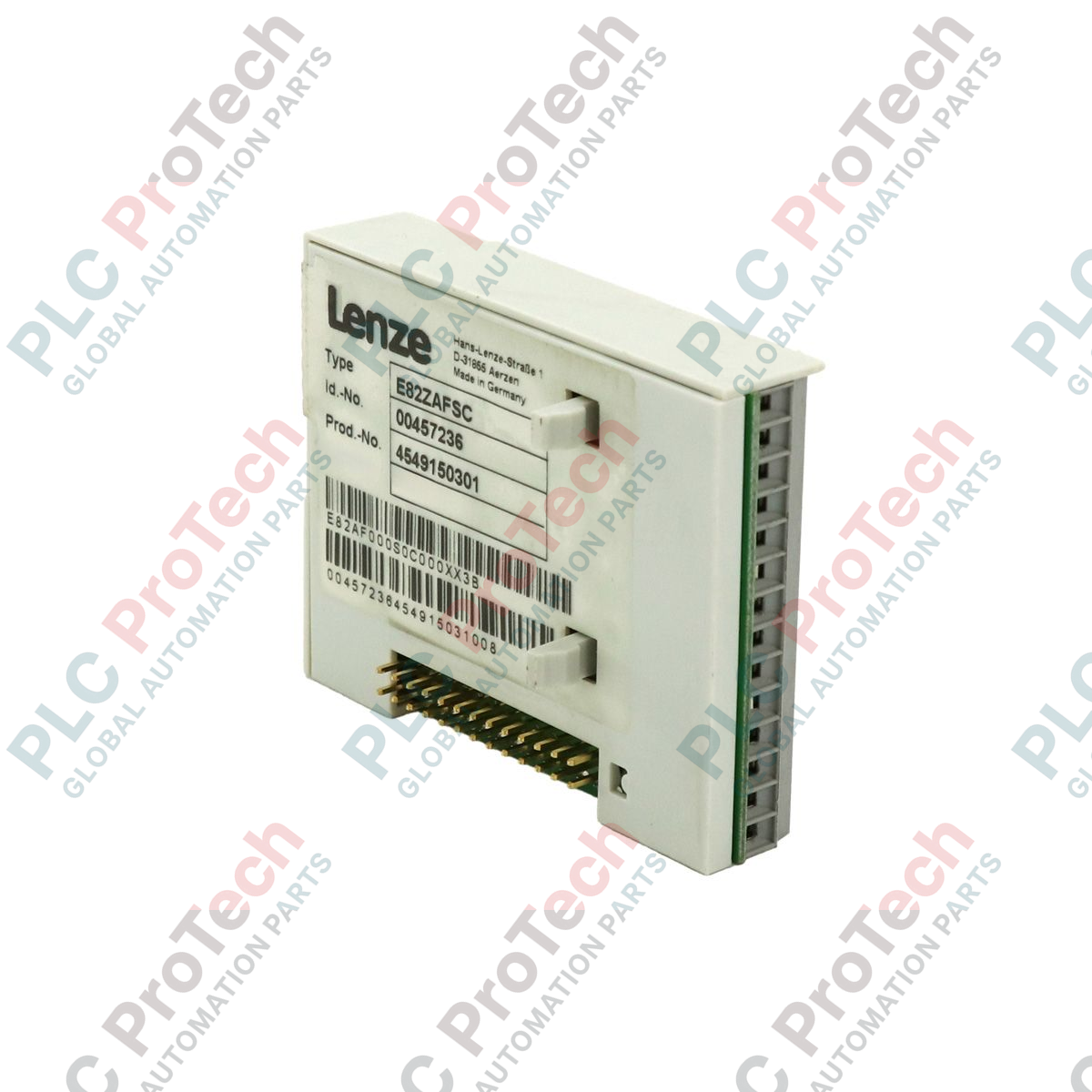

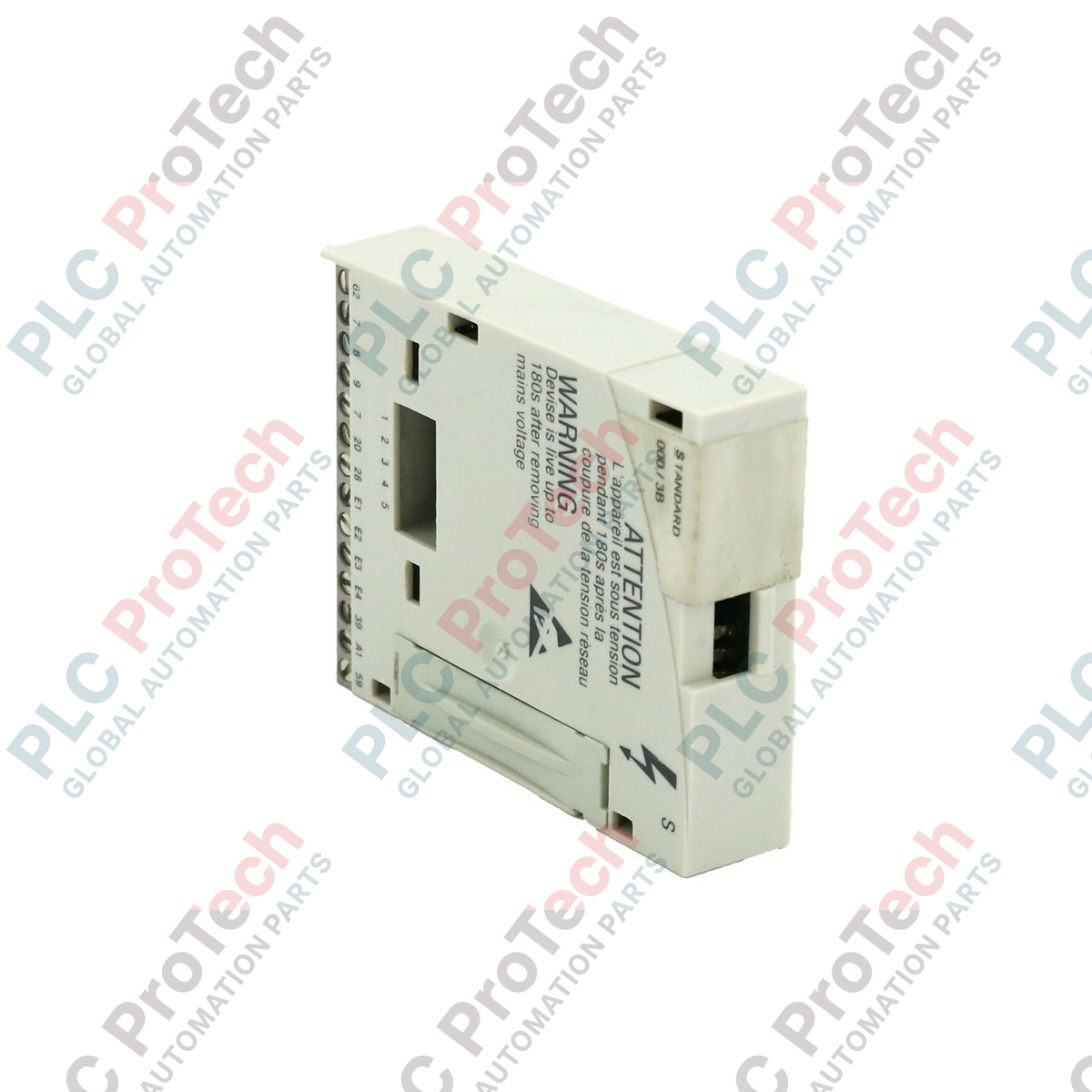

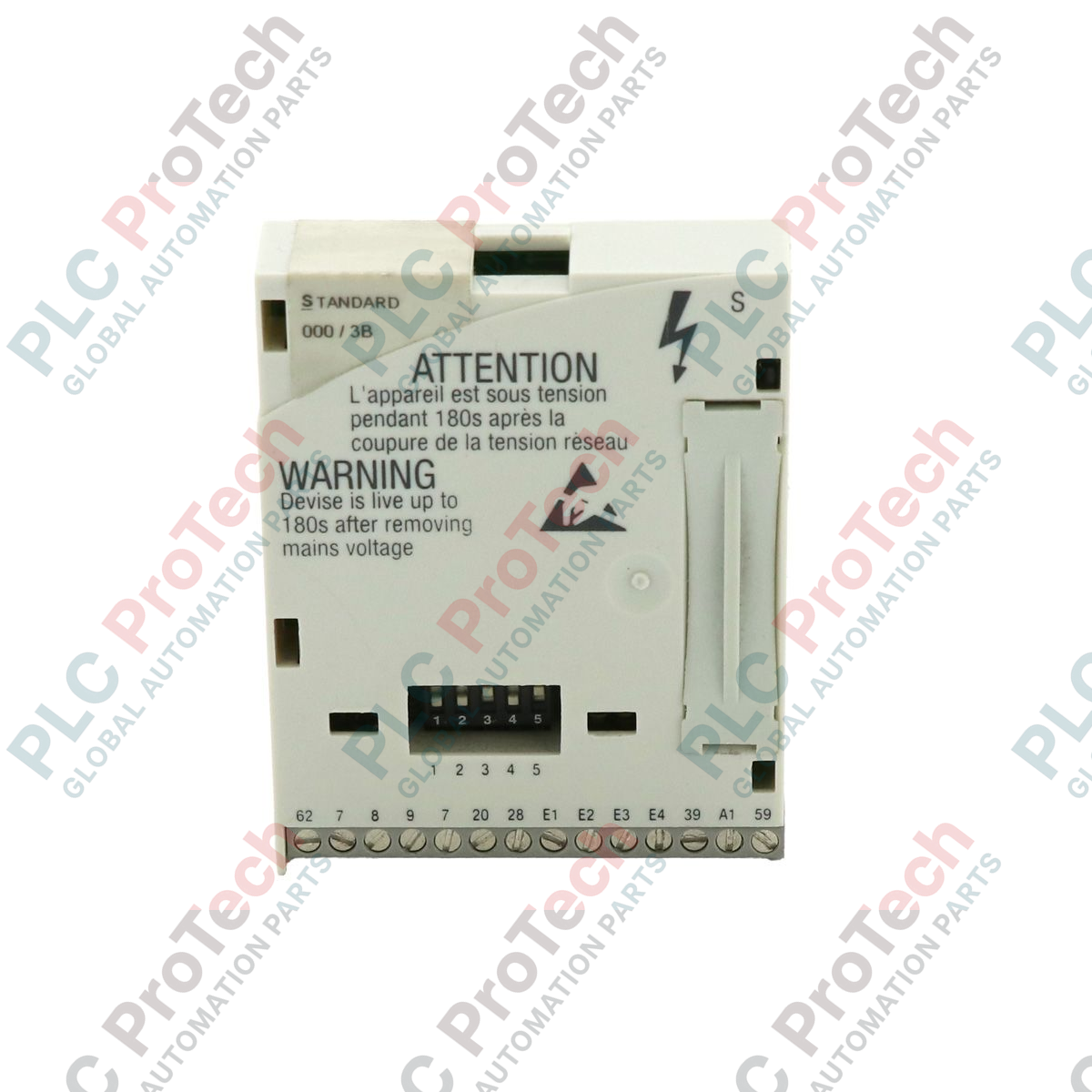

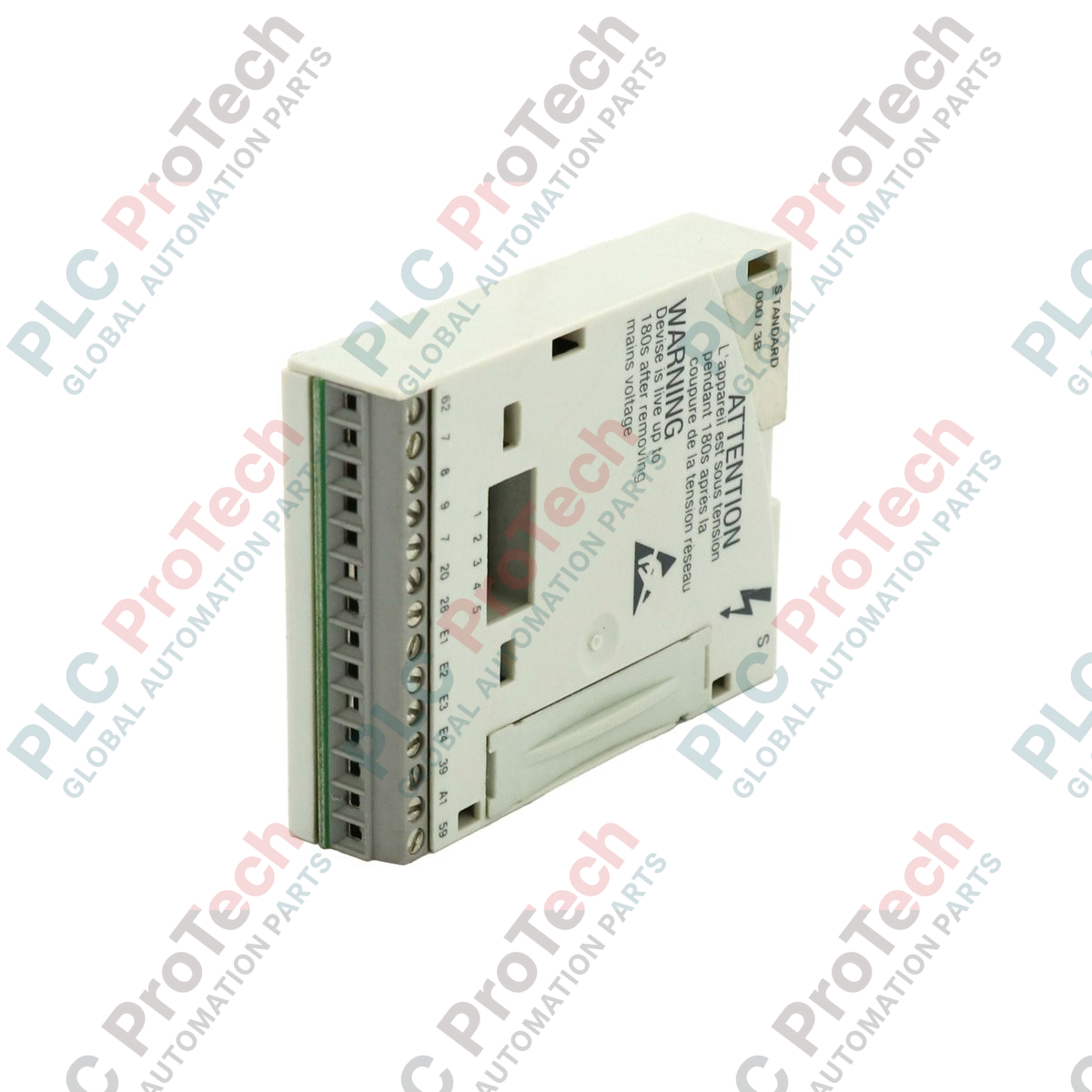

Designed to expand the control capabilities of Lenze 8200 vector frequency inverters, the E82ZAFSC function module provides a versatile interface for analog and digital control signals. This plug-in module mounts directly onto the inverter's front interface slot, enabling seamless integration with external sensors, PLCs, and actuators. By supporting both analog and digital I/O channels, it facilitates precise speed control, status monitoring, and system integration without requiring external signal converters.
The E82ZAFSC is engineered for high reliability in demanding industrial environments, ensuring stable signal transmission and robust noise immunity. It serves as a cost-effective expansion option for legacy automation setups utilizing the 8200 vector drive series, maintaining operational efficiency and system longevity.
| Manufacturer | Lenze |
| Part Number/Model | E82ZAFSC |
| Series | 8200-series |
| Module Type | Standard I/O Function Module |
| Analog Inputs | 1 (0 to 10 V, 0 to 20 mA, 4 to 20 mA) |
| Analog Outputs | 1 (0 to 10 V) |
| Digital Inputs | 4 (PLC level, HTL) |
| Digital Outputs | 1 (PLC level, HTL) |
| Dimensions | 5.10 x 7.60 x 2.50 cm |
| Weight | 0.05 kg |

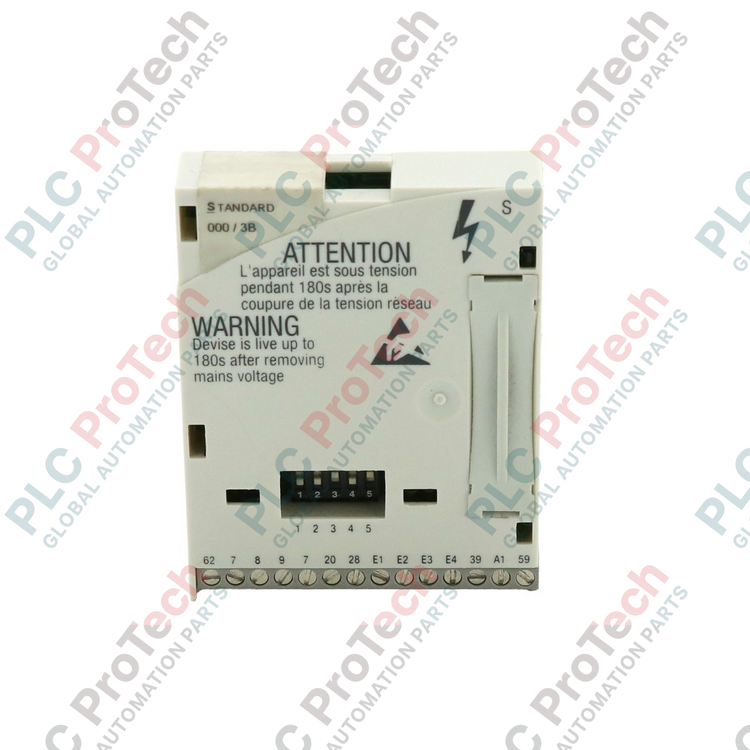

| Terminal Designation | Function |
|---|---|
| 1U | Analog Input (0 to 10 V) |
| 1I | Analog Input (0 to 20 mA or 4 to 20 mA) |
| 2U | Analog Output (0 to 10 V) |
| E1 | Digital Input 1 |
| E2 | Digital Input 2 |
| E3 | Digital Input 3 |
| E4 | Digital Input 4 |
| A1 | Digital Output 1 |
| GND | Reference Ground |
Global Express Shipping
Returns & Warranty
Manufacturer: Lenze
Product No.: E82ZAFSC
Country of origin:Germany
Product Type: Analog Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 50g
Dimensions: 5.10 x 7.60 x 2.50 cm
Shipping port: Xiamen
Warranty: 12 months
