Description

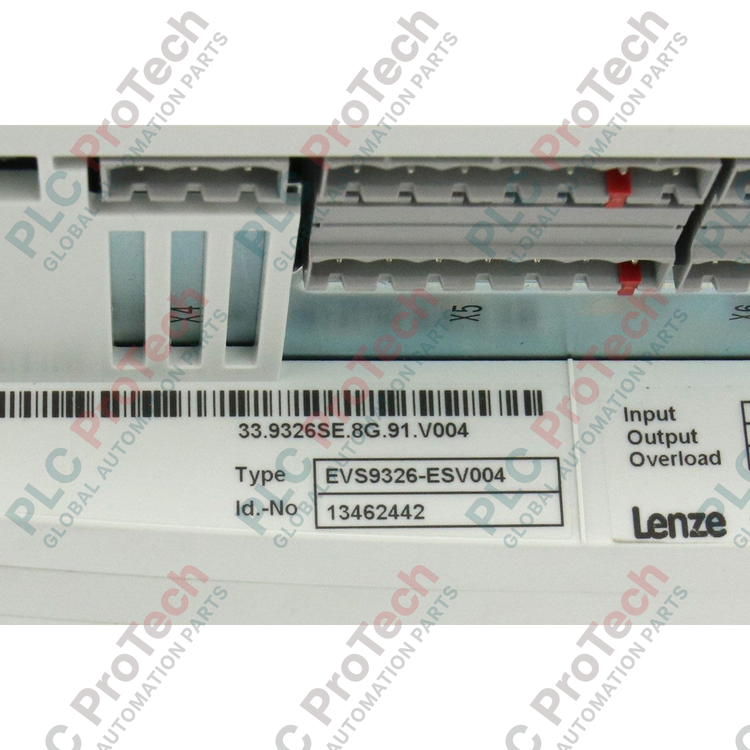

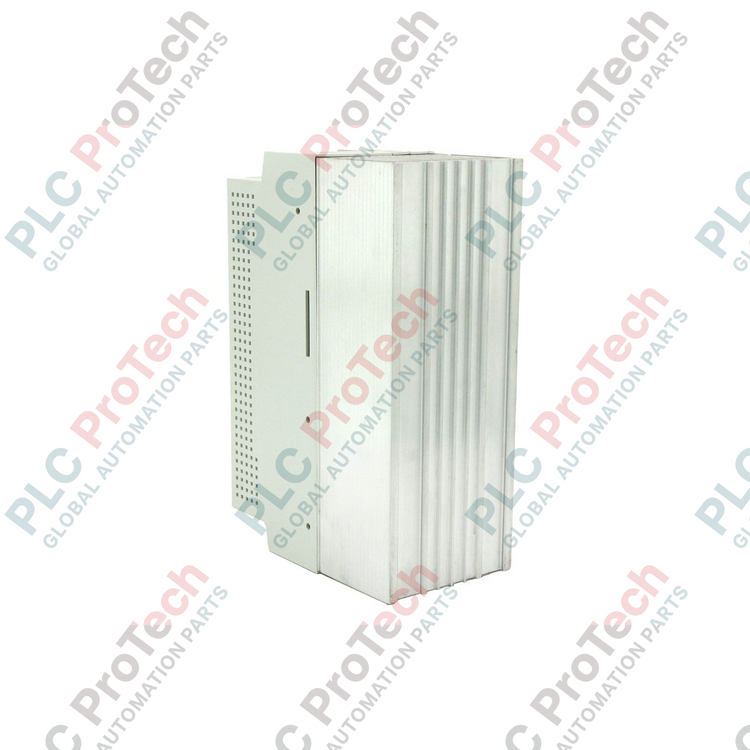

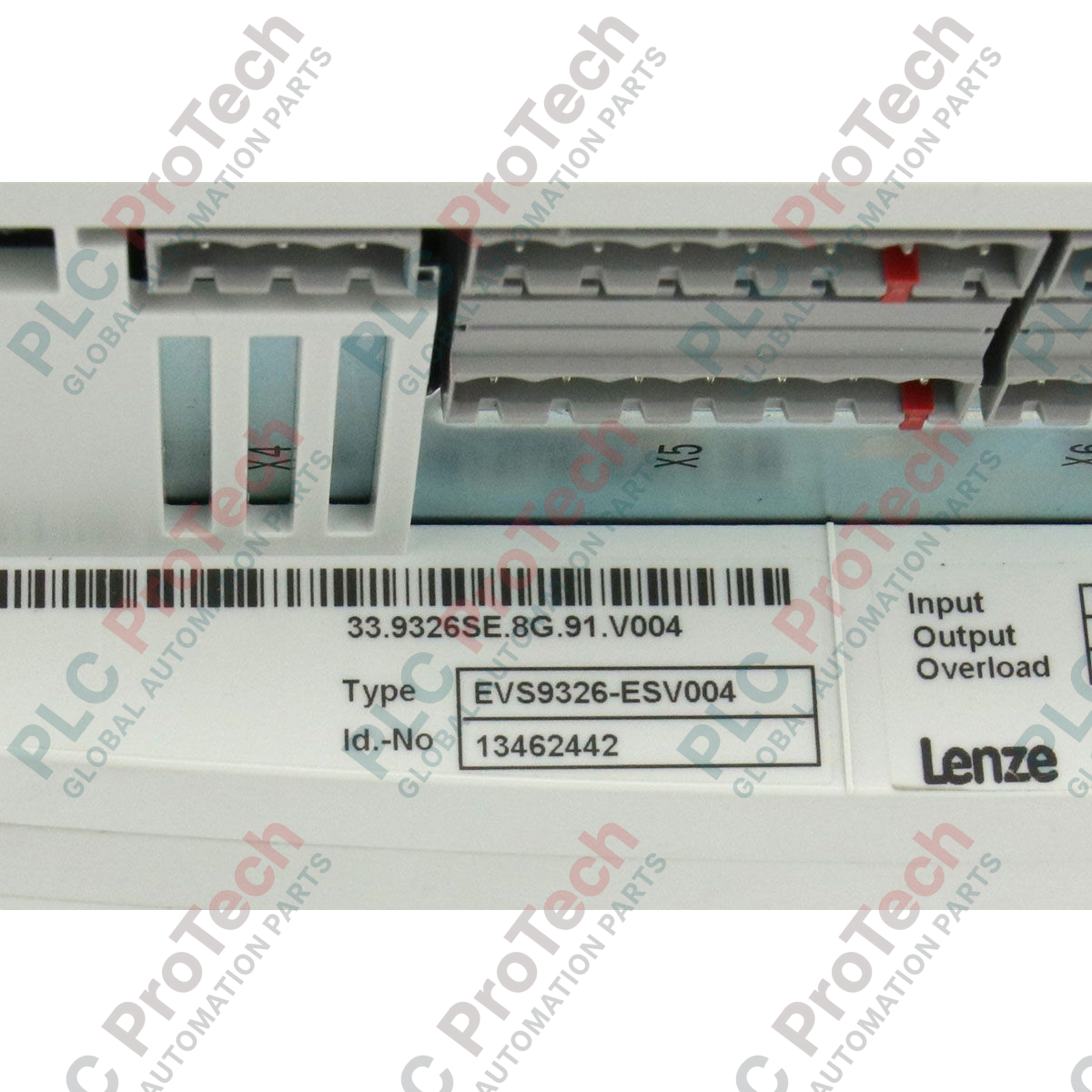

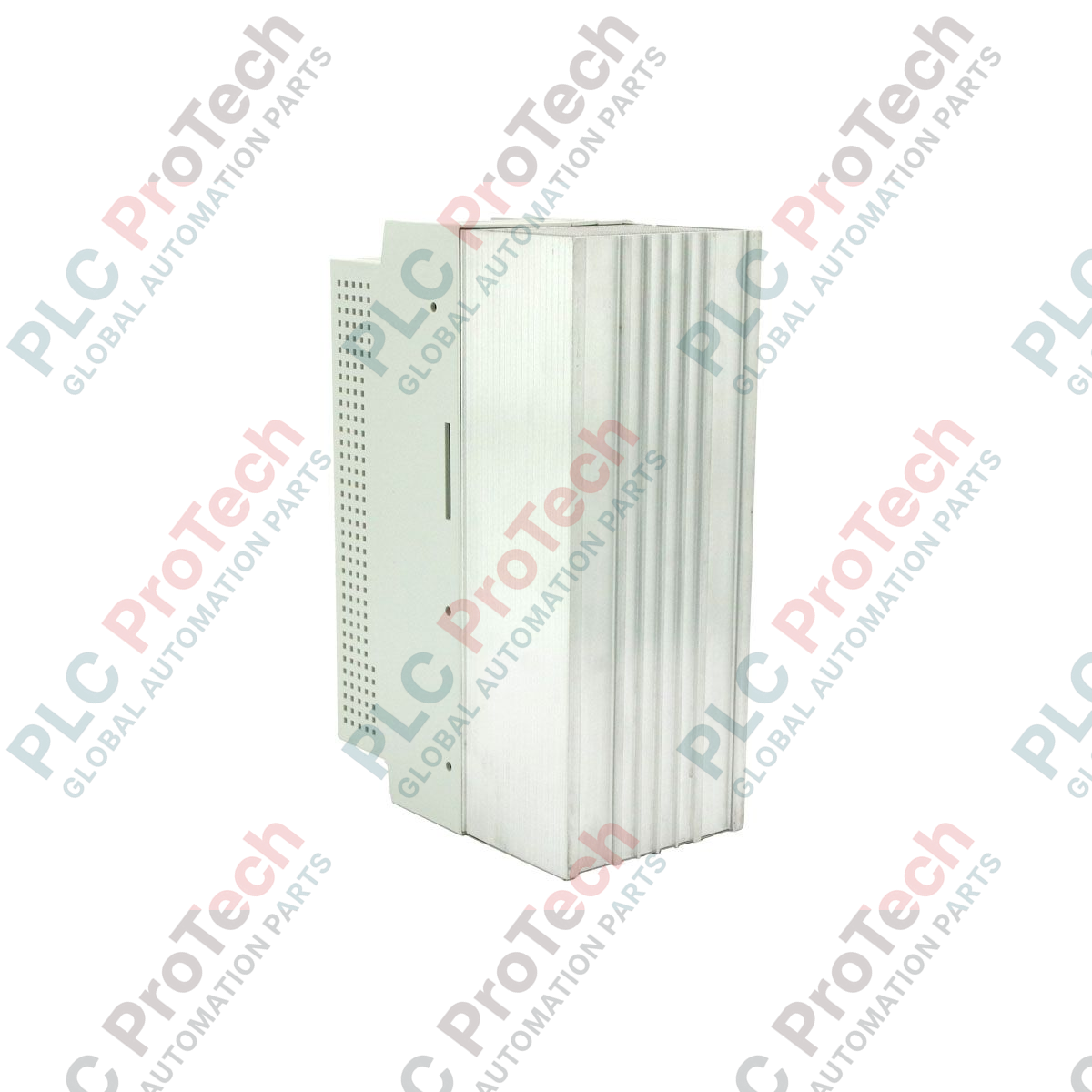

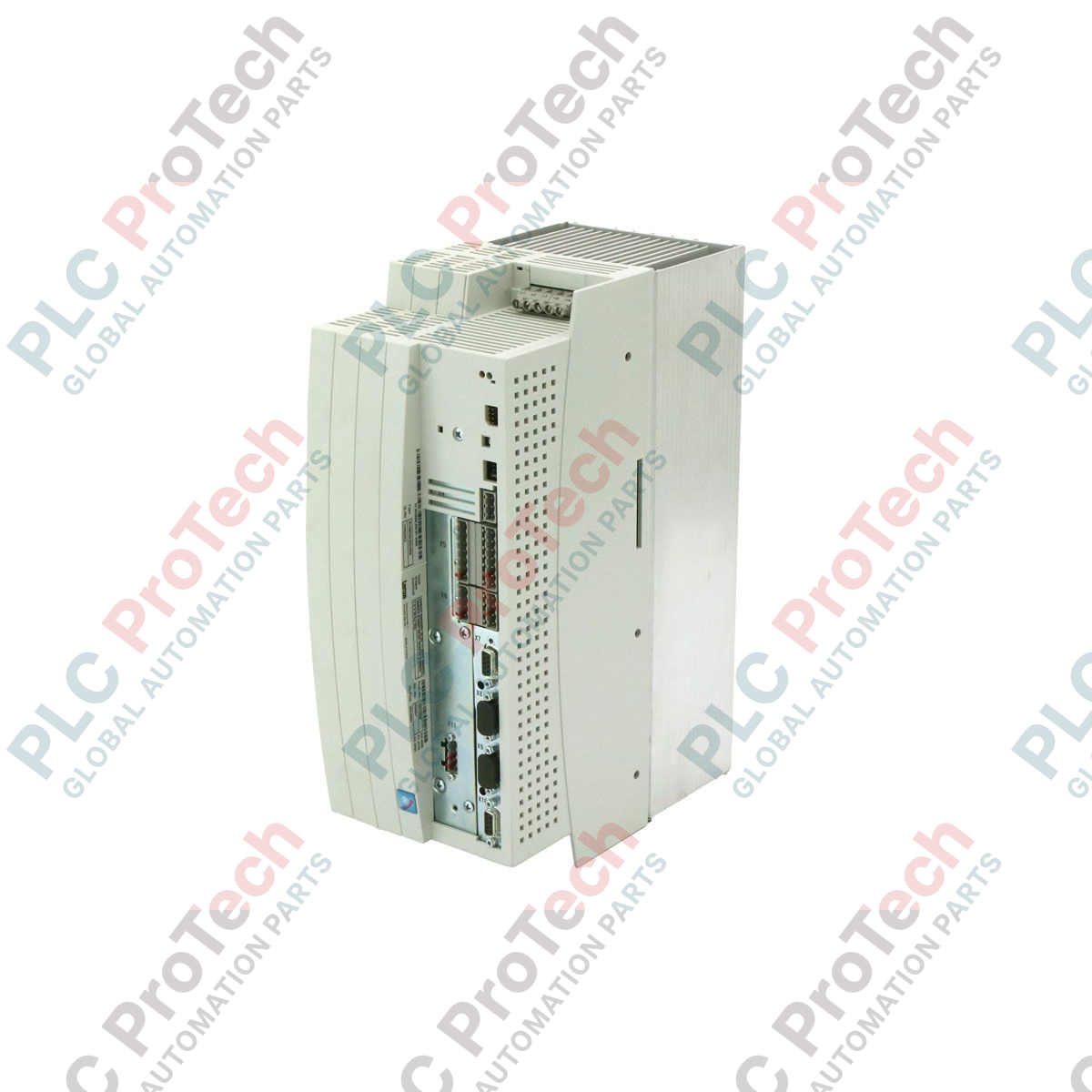

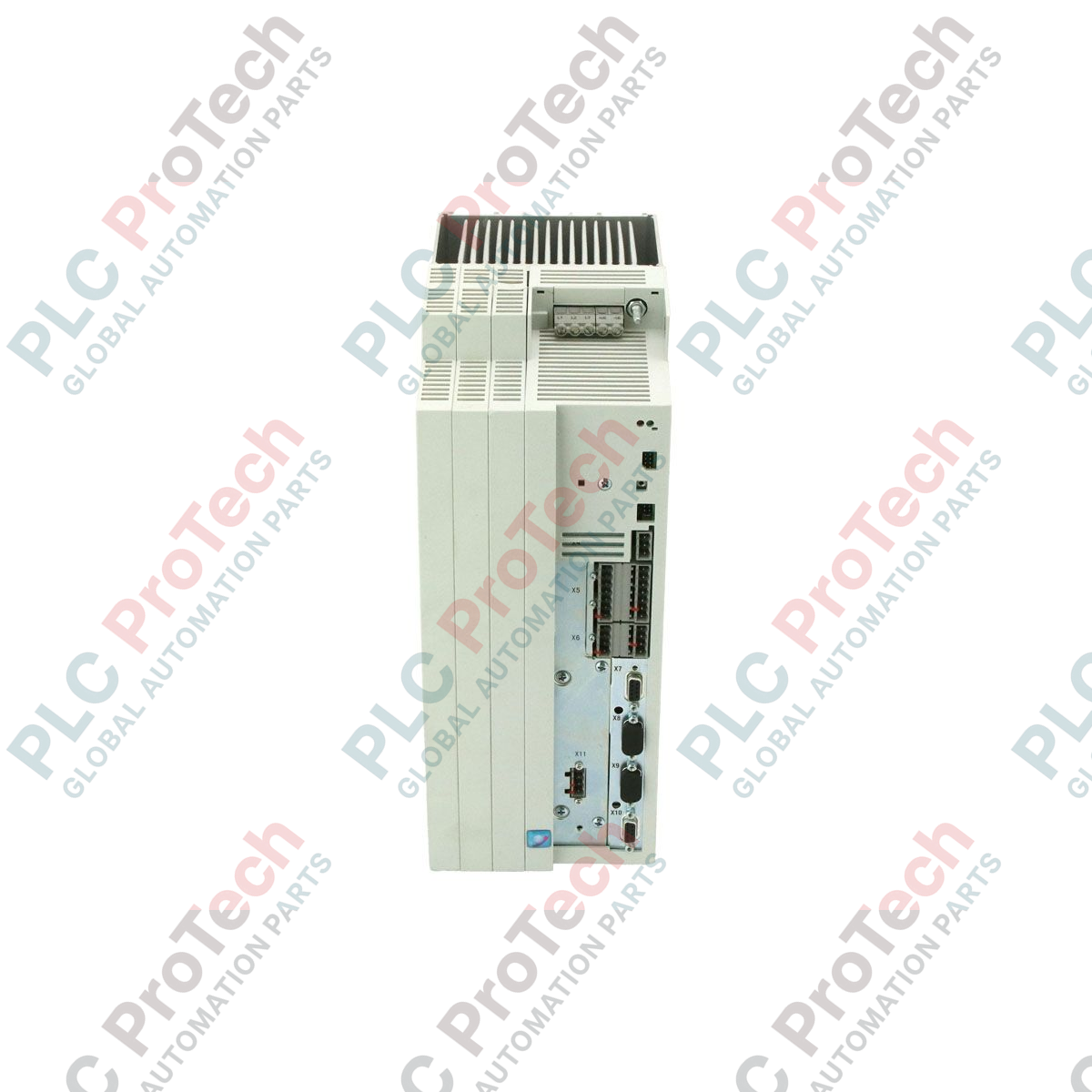

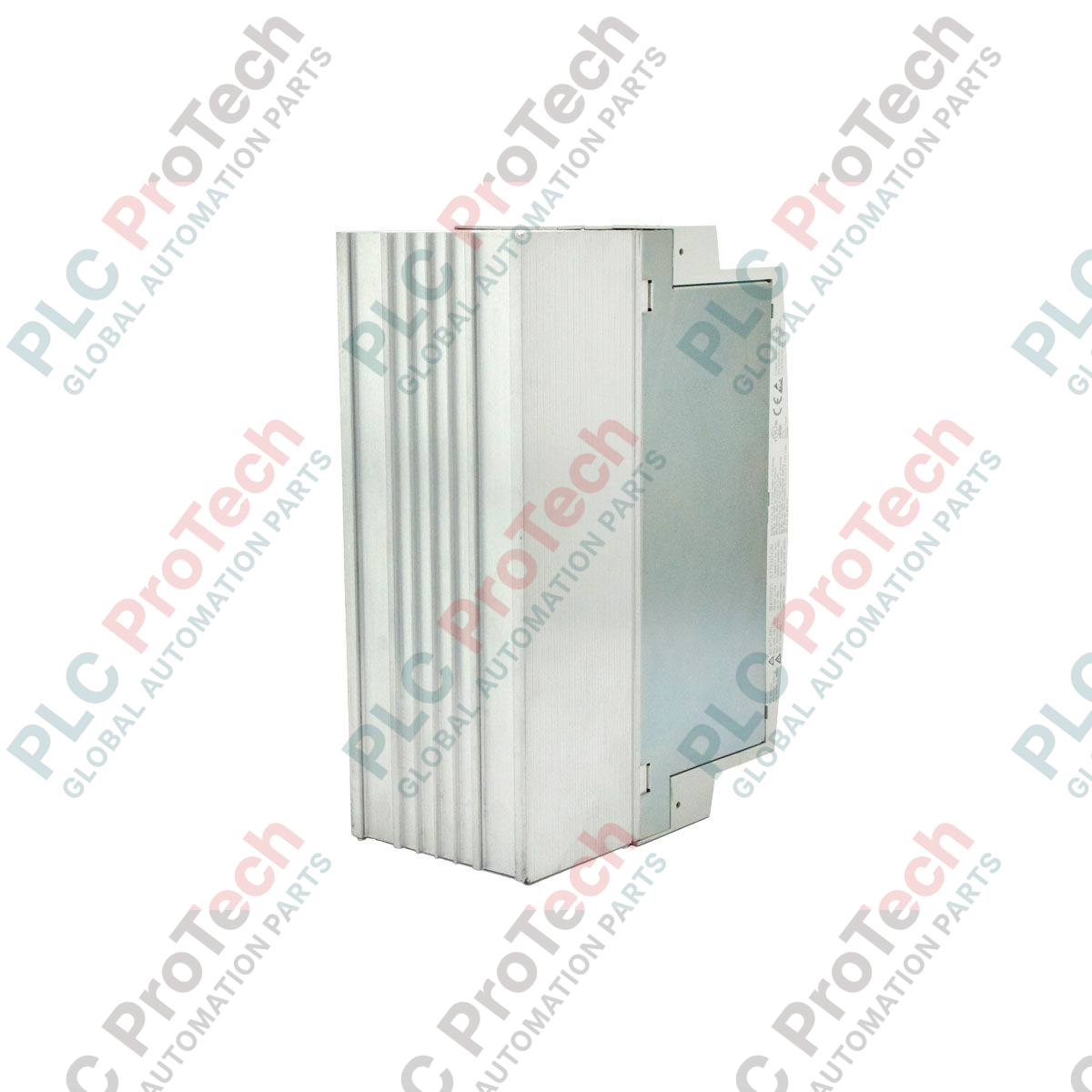

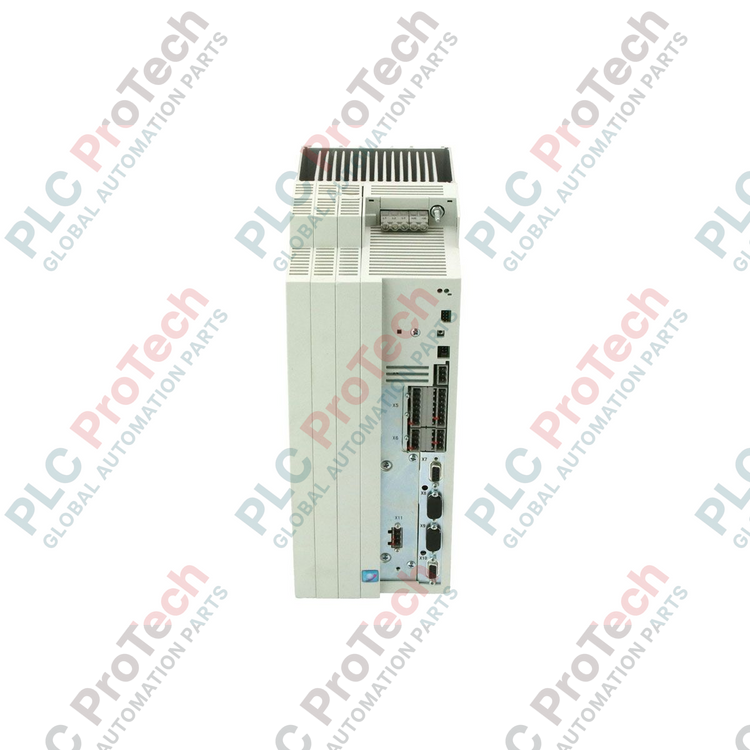

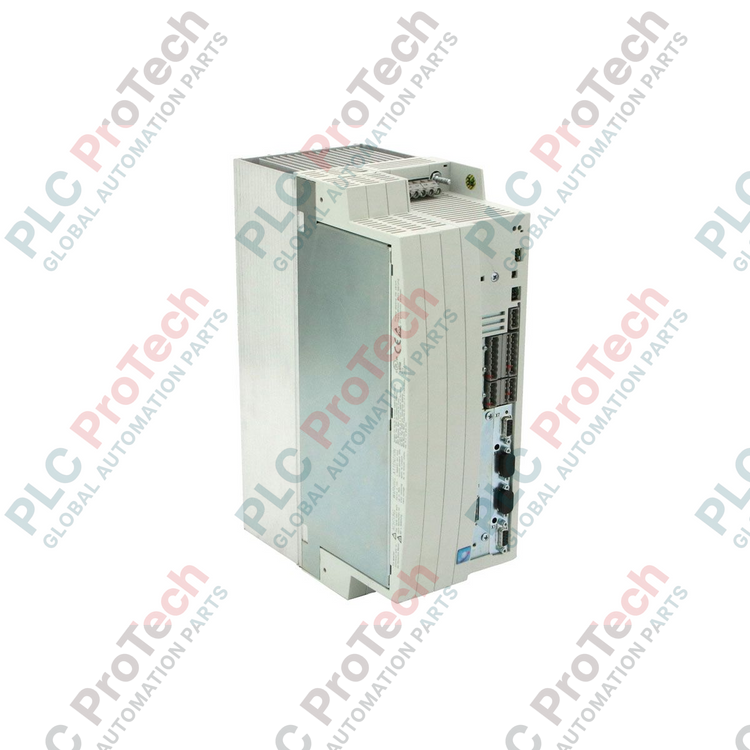

Operating as a core component within industrial motion control architectures, the Lenze EVS9326-ESV004 is a high-performance servo inverter designed for precise speed, torque, and position control. Part of the established 9300-Series, this unit provides reliable vector control and servo functionality for demanding automation systems. It features an IP20 protection rating, making it suitable for control cabinet installation where space optimization and thermal management are critical. The controller supports complex motion profiles and integrates seamlessly with standard industrial communication networks and feedback systems to ensure closed-loop accuracy.

Features

• Rated power output of 11.0 kW for heavy-duty industrial drive applications.
• Integrated IP20-rated enclosure designed for clean, dry control cabinet environments.
• Part of the legacy Lenze 9300-Series ecosystem, ensuring compatibility with existing system architectures.
• Compact mechanical footprint to maximize cabinet space efficiency.
• Supports precise dynamic response and high-accuracy speed/torque regulation.

Applications

• Packaging machinery and automated wrapping systems.
• Material handling, conveyors, and gantry positioning systems.
• Printing and paper processing machinery.
• General industrial machine tool axes requiring precise servo control.

Technical Specifications

Installation Guidelines

• Mounting: Install vertically inside a control cabinet to ensure optimal convection cooling.
• Clearance: Maintain recommended top and bottom clearances for unobstructed airflow.
• Environmental: Ensure the installation environment remains within non-condensing limits and does not exceed the rated operating temperature.
• Wiring: Use shielded motor cables to minimize electromagnetic interference (EMI) and ensure proper system grounding.
