Description

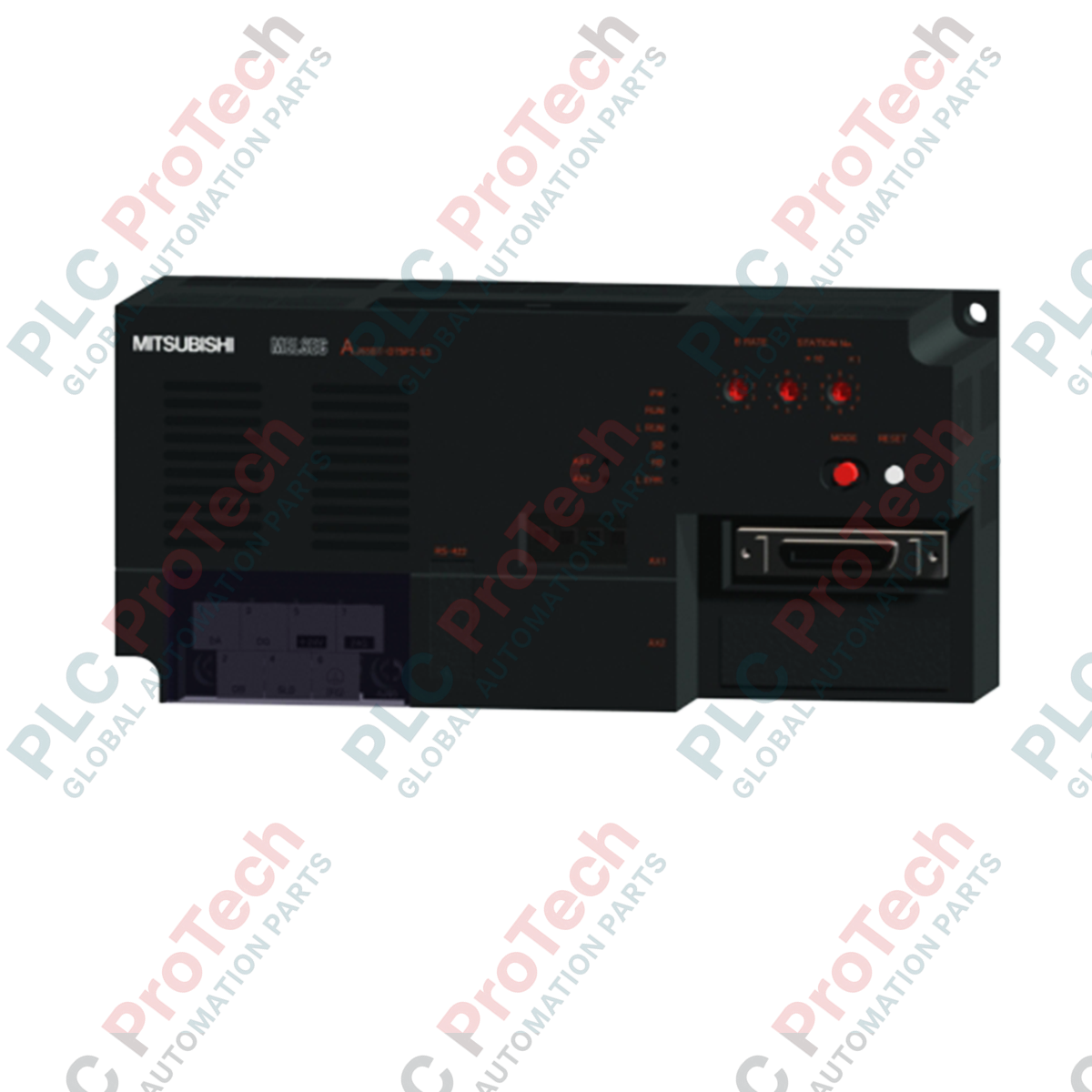

Designed to execute multi-axis motion profile sequences across decentralized control architectures, the Mitsubishi Electric AJ65BT-D75P2-S3 serves as an intelligent 2-axis positioning module engineered specifically for CC-Link networks. Operating as a CC-Link Ver. 1.00 Intelligent Device Station, this unit interfaces directly with servo amplifiers or stepping motor drives that accept open collector pulse train commands. Featuring built-in linear and circular interpolation, the hardware provides high-precision motion trajectories without relying on local CPU execution cycles. Non-volatile parameters and motion profiles are retained directly in internal Flash ROM, neutralizing data loss risks from control panel power failures and eliminating the dependency on back-up batteries.

Features

• Dual-Axis Motion Profiles: Independent or coordinated 2-axis linear and circular interpolation for complex mechanical routing.
• Flexible Control Methods: Supports Point-To-Point (PTP) execution, path control, continuous speed control, and real-time speed/position switching.
• Battery-Less Maintenance: On-board Flash ROM stores up to 600 positioning data profiles per axis, safeguarding operational parameters indefinitely.
• Network-Based Configurability: Managed directly as a 4-station Intelligent Device Station over standardized CC-Link fieldbus installations.
• Four-Pattern Acceleration/Deceleration: Selectable automatic trapezoidal or smooth S-curve profiles minimize mechanical shock.

Applications

• Pick-and-Place Gantry Systems: Coordinates X-Y axis movement for heavy-duty material transfer.
• Rotary Indexing Alignment: Manages degree-based angular positioning in rotary assembly tables.
• Packaging and Cartoning Machinery: Executes high-speed speed-to-position switching on conveyor feed lines.
• Automated Tool Positioners: Feeds slide tables and tool changers with precise incremental step movements.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

When selecting motion units, ensure proper identification of the pulse train driver format. The AJ65BT-D75P2-S3 uses an open collector output circuit design. If your servo or stepper amplifier requires differential receiver inputs (long-distance transmission or high-noise environments), you must utilize the line-driver model version (such as AJ65BT-D75P2-S1) instead. Upgrading older line-driver networks to open collector units requires modifying system signal conditioning to accommodate the physical output differences.

Application Pitfalls & Engineering Notes

Because open collector outputs exhibit higher vulnerability to electrical noise than differential lines, the physical cable length between this positioning unit and the motor drive must be strictly restricted to a maximum of 2 meters. Running these signal lines parallel to high-power motor phases or AC variable frequency drive (VFD) output cables causes motor jitter, positional drift, or false signal triggers. Always house this module within the same enclosure as the drive amplifiers to keep cable lengths short and signals secure.

Commissioning & Wiring Tips

During initial configuration over CC-Link, avoid triggering repetitive Flash ROM writes inside your cyclic master PLC logic. The Flash memory on the module has a maximum physical write cycle limit. Parameter modifications should be updated in the unit's local buffer memory (BFM) during routine runs, and written to Flash ROM exclusively when permanent system tuning changes are finalized.
