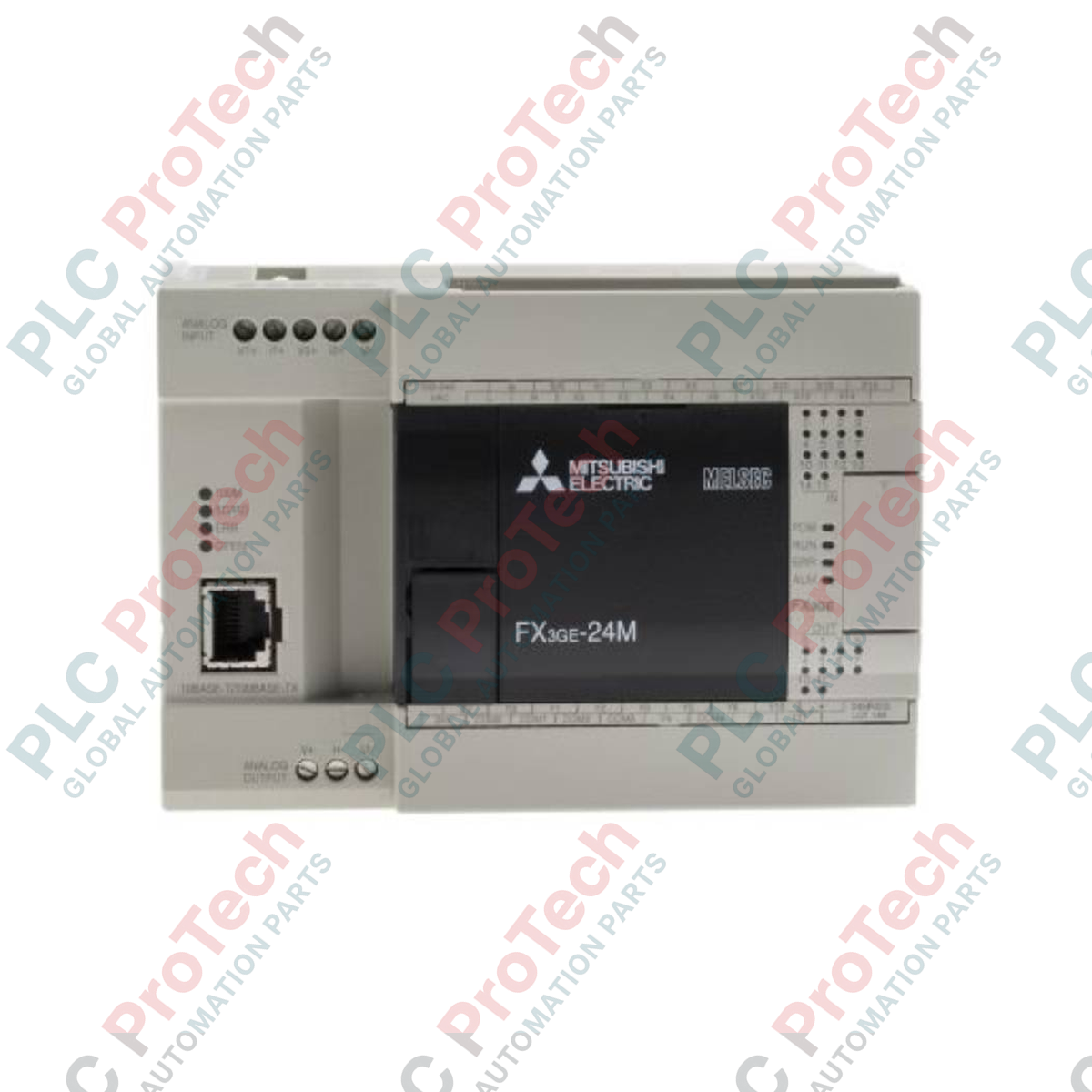

Designed to deliver high-performance automation in a compact footprint, the FX3GE-24MR/ES central processing unit integrates built-in analog inputs/outputs and dual communication ports directly into a single MELSEC FX series PLC platform. This controller combines the proven architecture of the FX3G series with integrated Ethernet and analog functionalities, eliminating the need for additional expansion adapters in basic networking and process control scenarios.
The FX3GE-24MR/ES features 24 integrated I/O points, configured as 14 digital inputs and 10 relay outputs. It serves as a highly efficient control node for manufacturing, water treatment, and specialized machinery, providing robust processing speed, built-in USB and RS-422 ports, and seamless connection to supervisory control systems via its integrated RJ45 Ethernet interface.
| Manufacturer | Mitsubishi Electric |
| Model/Part Number | FX3GE-24MR/ES |
| Series | MELSEC FX3GE |
| Device Type | Programmable Logic Controller (PLC) CPU |
| Supply Voltage | 100 to 240 V AC (+10% / -15%), 50/65 Hz |
| Total I/O Points | 24 points (14 inputs / 10 outputs) |
| Input Specifications | 24 V DC (sink / source selectable) |
| Output Type | Relay |
| Output Connection Type | Terminal block (M3 screw terminals) |
| Maximum Switching Load (Resistive) | 2 A per point |
| Maximum Switching Load (Inductive) | 80 VA |
| Minimum Load | 5 V DC, 2 mA (reference value) |
| Circuit Isolation | Mechanical relay insulation |
| Weight | Approx. 0.60 kg |
| Interface / Port | Functionality |
|---|---|
| Ethernet Port (RJ45) | Modbus/TCP, MC Protocol, programming, and monitoring (10/100 Mbps) |
| USB Port (Mini-B) | Direct connection for GX Works2 programming and diagnostics |
| RS-422 Port | Connection to HMI (GOT) or programming peripherals |
| Analog Inputs | 2 channels (voltage/current inputs) |
| Analog Output | 1 channel (voltage/current output) |
| Screw Terminals | M3 size, for power supply and field I/O connections |
