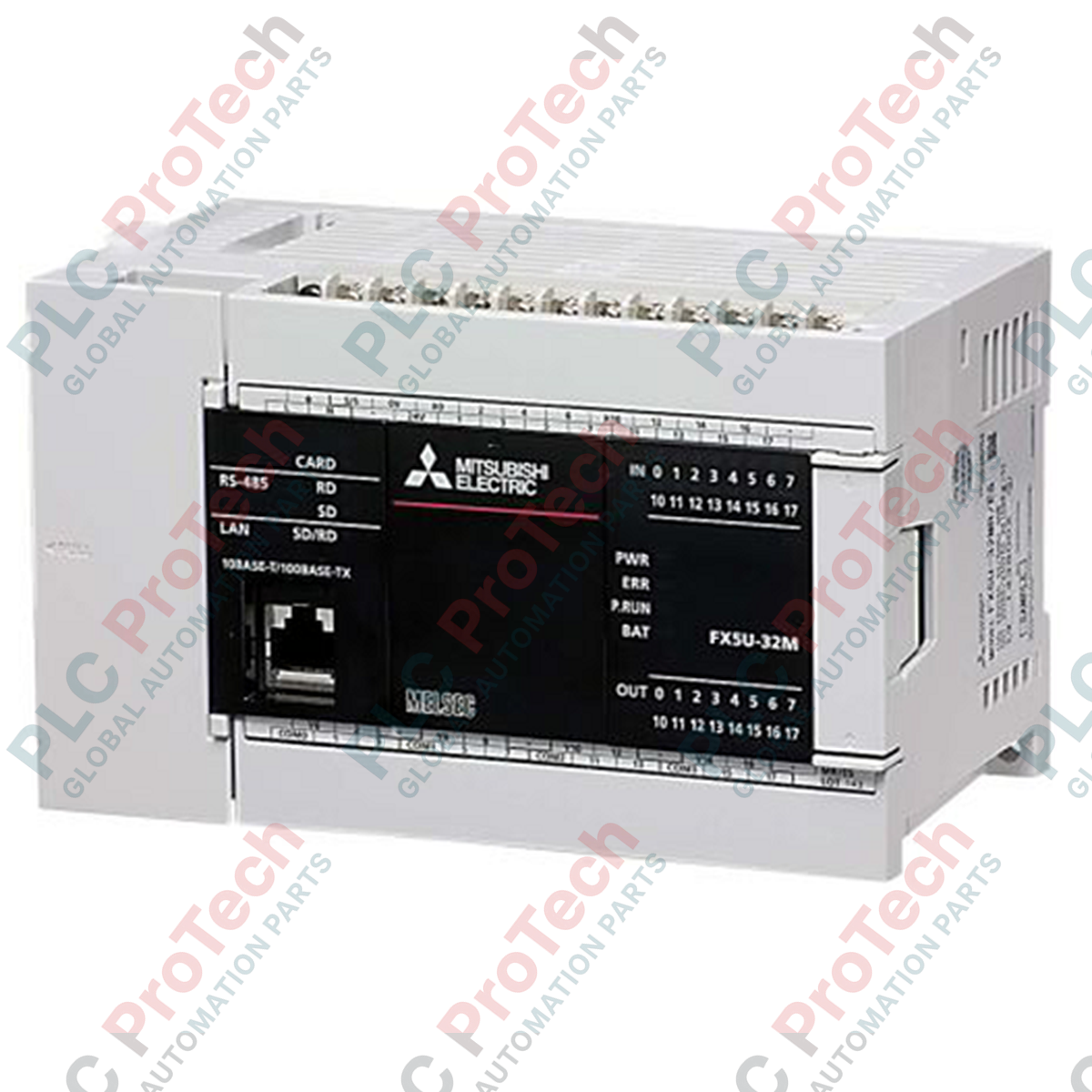

Mitsubishi Electric FX5U-32MT/ESS MELSEC iQ-F Series CPU Unit

SKU FX5U-32MT/ESS

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: FX5U-32MT/ESS
Origin United States
Product Type: PLC CPU Units
Payment: T/T, Western Union
Weight: 0.7 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

System designers requiring high-performance industrial control utilize the FX5U-32MT/ESS as a central processing hub within the MELSEC iQ-F automation platform. This programmable logic controller (PLC) CPU module features integrated high-speed analog and digital processing capabilities, delivering execution speeds suited for complex motion control, process synchronization, and machine automation.

The unit integrates 16 digital inputs (24 V DC, sink/source configurable) and 16 transistor outputs (source type), permitting direct interfacing with standard sensors and actuators. It operates on a universal AC power supply (100 to 240 V AC) and provides built-in Ethernet and RS-485 communication interfaces to ensure seamless networking across industrial systems without requiring additional communication cards.

Features

Built-in Ethernet port for network configuration, program monitoring, and Modbus TCP communication.
Integrated RS-485 serial port supporting Modbus RTU and MELSOFT protocols.
Dedicated SD memory card slot for data logging, diagnostic storage, and program transfer.
Support for up to 4 channels of 200 kHz high-speed pulse output for precise positioning control.
Built-in analog I/O featuring 2 channels of analog input (0 to 10 V DC) and 1 channel of analog output (0 to 10 V DC).
Expandable system configuration through backplane expansion modules and local I/O cards.

Applications

Packaging and labeling machinery
Material handling and conveyor systems
Pumping, water treatment, and fluid control systems
HVAC and building environmental automation
Assembly lines and testing equipment

Technical Specifications

CategorySpecification ParameterValue / Rating

Manufacturer	Mitsubishi Electric	MELSEC iQ-F Series
Model / Part Number	FX5U-32MT/ESS	FX5U CPU Unit
Power Supply Rating	Power Supply Range	100 to 240 V AC (+10% / -15%), 50/60 Hz
Power Consumption	Maximum Consumption	30 W
Digital Inputs	Input Channels	16 points (24 V DC, Sink/Source)
Digital Outputs	Output Channels	16 points (Transistor, Source type)
Output Current Rating	Current Limit	0.1 A per point (5 to 30 V DC)
Built-in Analog Inputs	Analog Input Channels	2 channels (0 to 10 V DC, 12-bit conversion)
Built-in Analog Outputs	Analog Output Channels	1 channel (0 to 10 V DC, 12-bit conversion)
Program Capacity	Memory Capacity	64,000 steps
Operating Temperature	Temperature Limits	0 to 55 degC
Storage Temperature	Storage Limits	-25 to 75 degC
Physical Weight	Module Weight	0.7 kg

Installation Guidelines

Mount the unit horizontally on a standard 35mm DIN rail or attach it directly to a flat panel using the integrated mounting screw holes.
Maintain a minimum of 50 mm clearance above, below, and on both sides of the CPU module to facilitate adequate convection cooling.
Connect the protective ground terminal (Class D grounding, 100 Ohm or less resistance) using a dedicated ground wire with a cross-sectional area of at least 2 mm².
Separate all low-voltage signal lines (I/O, analog, and network communication cables) from main power lines or high-voltage wiring to minimize electromagnetic interference.

Compliance and Certifications

CE (EMC Directive, Low Voltage Directive)
UL / cUL Listed
KC Certification

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary power supply requirement for the FX5U-32MT/ESS?

The FX5U-32MT/ESS operates on an AC input voltage range of 100 to 240 V AC at 50/60 Hz.

What type of outputs are integrated into the FX5U-32MT/ESS CPU?

This module features 16 source-type transistor outputs rated for 5 to 30 V DC with a limit of 0.1 A per point.

Does this CPU unit have built-in analog capabilities?

Yes, it has 2 channels of built-in analog inputs (0 to 10 V DC) and 1 channel of built-in analog output (0 to 10 V DC) with 12-bit resolution.

What communication interfaces are integrated on-board?

The FX5U-32MT/ESS includes one built-in Ethernet port (100BASE-TX/10BASE-T) and one RS-485 port.
