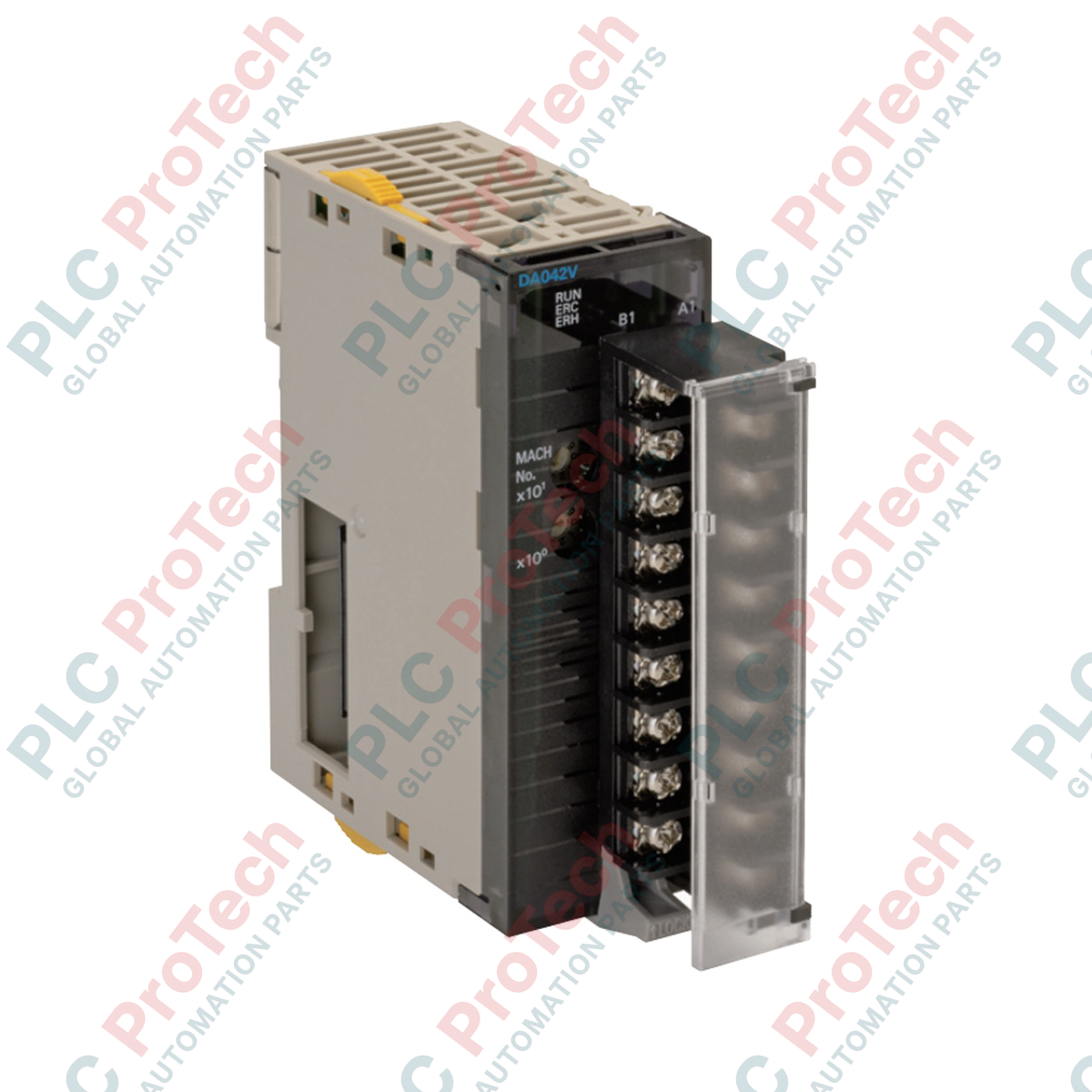

Designed for precise digital-to-analog signal conversion within industrial automation systems, the CJ1W-DA041 serves as a high-performance analog output module for the Omron CJ series. This module enables programmable controllers to interface directly with analog control devices by converting digital process values into corresponding voltage or current signals.
Equipped with four high-accuracy channels, the CJ1W-DA041 supports standard industrial output ranges including 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V, and 4 to 20 mA. It features a removable 18-point terminal block that facilitates direct wiring and convenient system maintenance, minimizing downtime during module replacement.
| Parameter | Value |
|---|---|
| Manufacturer | Omron |
| Part Number/Model | CJ1W-DA041 |
| Module Type | Analog Output Unit (CJ-series Special I/O Unit) |
| Number of Analog Outputs | 4 |
| Output Signal Range (Voltage) | 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V |
| Output Signal Range (Current) | 4 to 20 mA |
| Output Impedance (Voltage) | 0.5 ohm max. |
| Maximum Output Current (Voltage) | 12 mA |
| Maximum Permissible Load Resistance (Current) | 600 ohm |
| Resolution | 4,000 (16-bit binary set data) |
| D/A Conversion Period | 1.0 ms per point |
| Accuracy (at 25 degC) | Voltage: +/-0.3% of F.S. | Current: +/-0.5% of F.S. |
| Accuracy (at 0 degC to 55 degC) | Voltage: +/-0.5% of F.S. | Current: +/-0.8% of F.S. |
| Isolation | Photocoupler between I/O and Controller signals (No isolation between individual I/O channels) |
| Power Consumption | 140 mA max. at 5 VDC |
| External Power Supply Requirements | 24 VDC, 200 mA max. (Inrush current: 20 A max., pulse width: 1 ms min.) |
| External Terminals | 18-point detachable terminal block (M3 screws) |
| Dimensions | 31 x 90 x 65 mm (W x H x D) |
| Weight | 150 g max. |
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: CJ1W-DA041
Country of origin:Japan
Product Type: Analog Output Units
Payment: T/T, Western Union
Weight: 150g
Dimensions: 31 x 90 x 65 mm
Shipping port: Xiamen
Warranty: 12 months
