Description

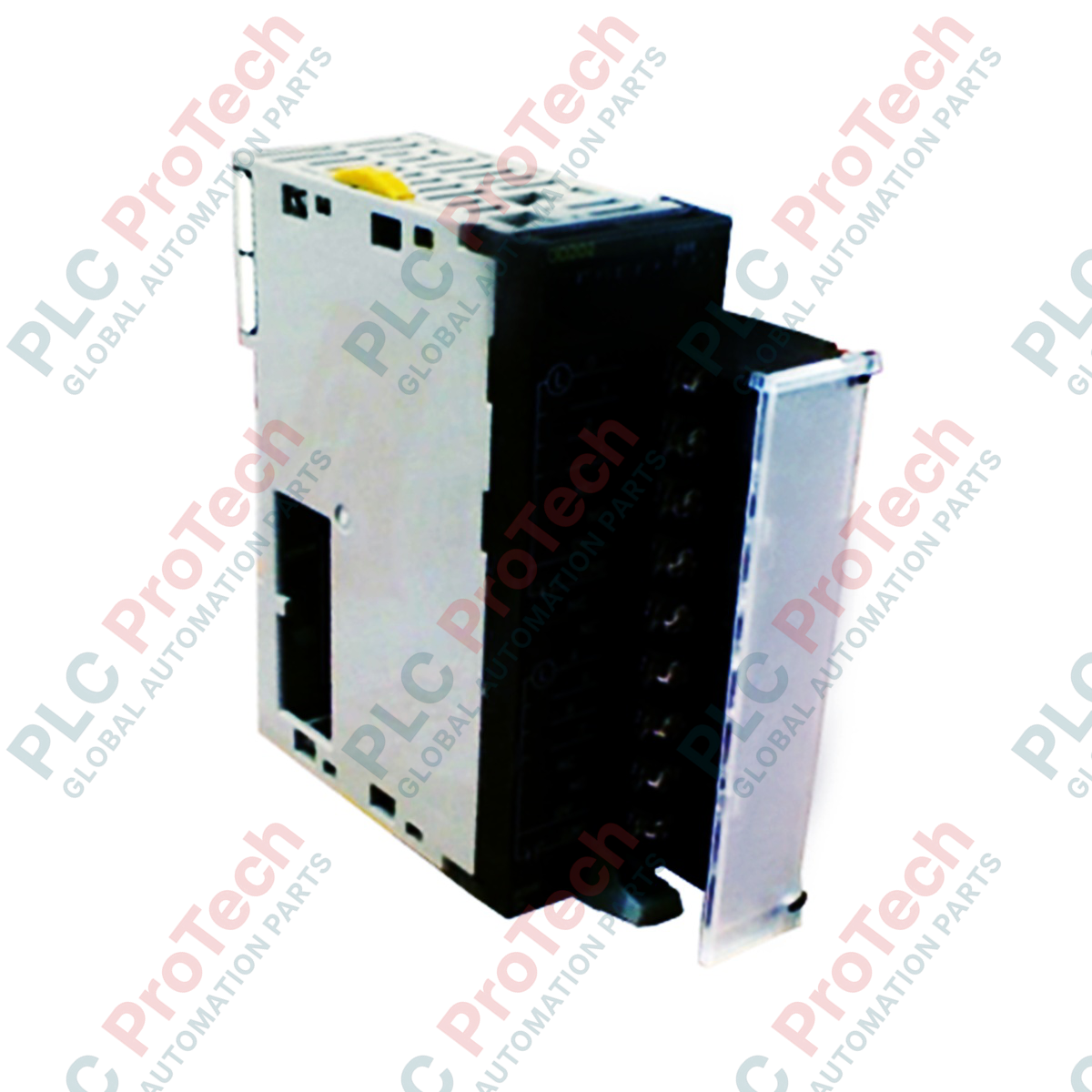

Integrating high-capacity switching capabilities directly into the Omron Sysmac architecture, the Omron CJ1W-OD202 provides eight robust sourcing transistor outputs for demanding industrial automation networks. This module is engineered to handle higher-current loads up to 2 A per point, bridging the gap between standard PLC control signals and heavy-duty field actuators. Featuring onboard load short-circuit protection and line disconnection detection, the unit ensures high operational safety and simplified troubleshooting within complex control cabinets.

Features

• High-Current Capacity: Delivers up to 2 A per output point (8 A maximum per module) for direct control of high-load field devices.
• Advanced Diagnostics: Built-in load short-circuit protection and line disconnection detection facilitate real-time fault isolation.
• Automatic Recovery: Features automatic restart functionality once a load short-circuit fault is resolved.
• Optocoupler Isolation: Protects internal PLC backplane circuitry from external field-side voltage spikes and noise.
• Removable Terminal Block: Simplifies field wiring and allows rapid module replacement without disconnecting individual terminal leads.

Applications

• High-load DC contactor and solenoid valve actuation
• Industrial pneumatic and hydraulic manifold control
• Heavy-duty indicator panels and signaling beacons
• Automated packaging systems and material handling machinery

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The CJ1W-OD202 is optimized for high-current loads, delivering 2 A per point over 8 points. This is distinct from standard high-density sourcing units like the CJ1W-OD212 (16 points, 0.5 A per point) or CJ1W-OD232 (32 points, 0.5 A per point). If upgrading from an OD212, verify total system current draws and note that terminal block allocations are not plug-and-play compatible due to the difference in point counts and terminal physical pitches.

Application Pitfalls & Engineering Notes

When switching highly inductive DC loads (such as large solenoid valves or heavy contactor coils), the built-in protection circuits can experience voltage spikes if external freewheeling diodes are omitted. Although the unit contains internal protection, mounting an external diode across the inductive load prevents premature deterioration of the internal sourcing transistors and stabilizes the module's diagnostic feedback loop.

Commissioning & Wiring Tips

Be aware of the short-circuit trip characteristics. The 6 A short-circuit trip mechanism is fast-acting. High-inrush loads (like cold incandescent bulbs or large capacitive circuits) can momentarily exceed this threshold and trigger a fault, causing the output to cycle. For loads with high initial inrush profiles, inline soft-start components or resistive current-limiters are recommended to avoid false trip states.
