Product Overview

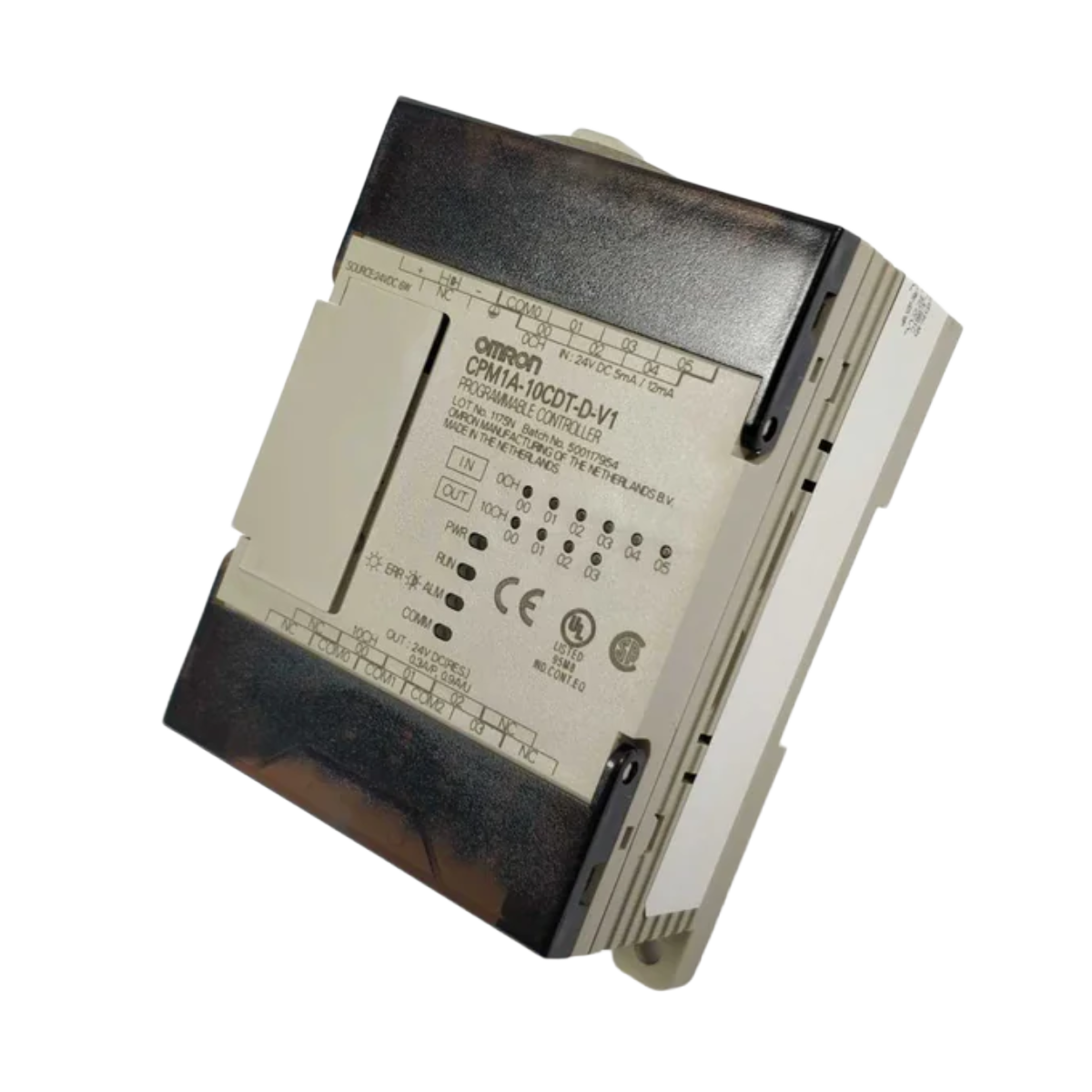

The Omron CPM1A-10CDT-D-V1 is the most compact entry-level controller in the CPM1A series, designed for simple "point-of-use" automation where minimal I/O is required. With 6 digital inputs and 4 transistor outputs, it provides a cost-effective solution for small-scale applications like automatic door sensors, small pumps, and simple indexing mechanisms. Despite its small footprint (only 66 mm wide), the CPM1A-10CDT-D-V1 maintains the high processing speed of its larger counterparts (0.72 μs）, ensuring reliable performance for time-sensitive tasks. It is specifically built for 24 VDC environments and utilizes NPN (Sink type) transistor outputs, making it ideal for high-speed switching without the mechanical wear associated with relay modules.

Technical Configuration

The architecture of the CPM1A-10CDT-D-V1 is streamlined for efficiency. It features a 2 kWord program capacity and 1 kWord of data memory, providing enough logic space for most stand-alone machine control tasks.

As a "Sinking" (NPN) module, the outputs act as switches to the negative rail (0V), a common standard in many sensor-heavy industrial environments. While this specific model does not support expansion modules, it includes high-value built-in functions: a 5 kHz encoder input for monitoring speed or position, and a 2 kHz pulse output for controlling small stepper motor drivers. The "V1" suffix denotes a hardware revision that offers improved stability and enhanced reliability over the original series.

Technical Specifications

Technical FAQs

Q1: Since this model doesn't support expansion, how do I add more I/O?

A1: If your project grows beyond 10 I/O points, you would need to upgrade to a CPM1A-20 or CPM1A-30 model. The 10-point version is physically designed to be a non-expandable, low-cost terminal controller.

Q2: What field devices are compatible with the "Sinking" output?

A2: You should use loads (like relays or solenoids) that have a "common positive" connection. The PLC will provide the path to the negative (0V) terminal to complete the circuit. This is the standard for NPN-type transistors.

Q3: Is the program compatible with other CPM1A models?

A3: Yes. Programs written for the 10-point model can be uploaded and used on larger CPM1A models (like the 30-point version), provided you re-map the I/O addresses to match the larger hardware.

Engineering & Installation Guide

• Wiring Compactness: Due to the extremely narrow 66 mm width, terminal access is tight. Use $0.5$ to $1.25$ $\text{mm}^2$ wire with insulated ferrules to ensure a clean installation and prevent stray wire strands from shorting across the 24 VDC supply and I/O terminals.

• Pulse Output Logic: The 2 kHz pulse output is suitable for low-speed positioning. If your stepper driver requires a higher frequency signal for smooth operation, ensure your gear ratios are calculated based on this 2 kHz limit to avoid "stuttering" in the motor movement.

• Mounting Protocol: The unit is designed for DIN-rail mounting. Given its light weight (0.30 kg), ensure the DIN rail clips are securely engaged; in high-vibration environments, add end-stops to prevent the PLC from sliding along the rail.

Engineering Advantages

The CPM1A-10CDT-D-V1 is distinguished by its "fit anywhere" design. It is one of the smallest industrial-grade PLCs on the market, allowing it to be tucked inside small control boxes or even directly onto a machine frame. Its transistor outputs are rated for high-frequency switching, which is a major advantage over relay-based micro PLCs that might fail after a few million cycles. Furthermore, the inclusion of a high-speed counter (5 kHz) in such a small device allows for precise monitoring of production counts or conveyor speeds at a fraction of the cost of a full-sized PLC system.
