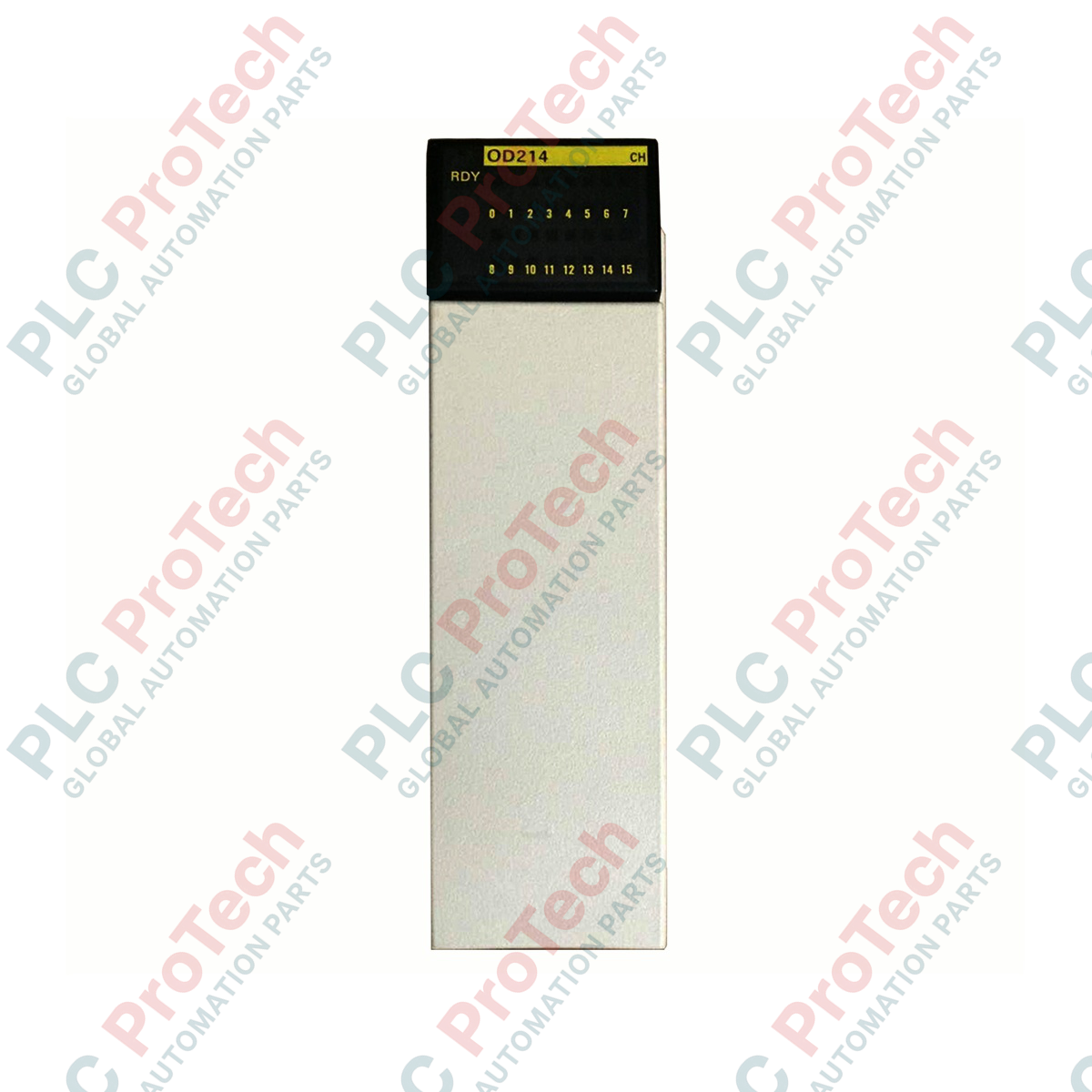

Omron CQM1-OD214 CQM1 Series Transistor Output Module

SKU CQM1-OD214

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Omron
  • Product No.: CQM1-OD214
  • Origin Japan
  • Product Type: Transistor Output Modules
  • Payment: T/T, Western Union
  • Weight: 1.3 kg
  • Dimensions: 145 mm x 115 mm x 50 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Description

Facilitating high-speed discrete control within the modular CQM1 architecture, the Omron CQM1-OD214 delivers 16 channels of solid-state PNP transistor output designed to drive solenoids, contactors, and indicating devices in industrial environments. This sourcing module interfaces directly with PLC CPU processors to execute millisecond-level switching commands, utilizing solid-state logic to eliminate the mechanical wear associated with traditional relay modules.

Features

  • Provides 16 sourcing (PNP) solid-state outputs on a single common bus.
  • Rapid switching response times under 0.4 milliseconds protect cycling equipment.
  • Built-in internal noise suppression networks minimize inductive load kickback.
  • Removable terminal block facilitates rapid module replacement without disconnecting field wiring.
  • Compact slot footprint mounts directly to the backplane without requiring separate power links.

Applications

  • Automated assembly systems requiring fast pneumatic solenoid actuation.
  • Packaging machinery control loops running high-speed product sorting and routing.
  • Material handling conveyor diverts and status indicator light banks.
  • High-density digital output expansion in confined machine control panels.

Technical Specifications

Parameter Specification
Manufacturer Omron
Model Number CQM1-OD214
Output Points 16 points (16 points/common, 1 circuit)
Output Type Transistor (Sourcing/PNP)
Operating Voltage Range 4.5 VDC to 26.4 VDC
Max. Switching Capacity 50 mA at 4.5 VDC to 300 mA at 26.4 VDC
Leakage Current 0.1 mA maximum
Residual Voltage 0.8 V maximum
ON Response Time 0.1 ms maximum
OFF Response Time 0.4 ms maximum
Internal Current Consumption 170 mA maximum at 5 VDC
Fuse Protection 3.5 A (one per common, internal, non-replaceable)
External Power Supply Rating 60 mA minimum at 5 to 24 VDC plus/minus 10%
Net Module Weight 210 grams maximum
Shipping Weight (Calculated) 0.55 kg (including protective packaging)
Package Dimensions (Calculated) 145 mm x 115 mm x 50 mm

Connections and Interfaces

Terminal Pin Signal Assignment Functional Details
0 to 15 OUT 00 to OUT 15 16 Sourcing Transistor Output Points
COM Common (V+) External load voltage supply terminal (positive rail)
0V 0V GND External load voltage return reference

Alternative Models & Compatibility

The module operates as a plug-and-play component within standard CQM1 backplanes. Systems originally built using NPN sink-type modules, such as the CQM1-OD211, are electrically distinct and cannot be swapped directly with the sourcing CQM1-OD214 without updating field wiring polarity. Ensure correct actuator coil configuration before executing swap procedures.

Application Pitfalls & Engineering Notes

This module features internal soldered 3.5 A fuses to protect internal traces against short circuits. Because these fuses are non-serviceable on-site, a severe external short on an output line will destroy the internal fuse, rendering the affected output bank inoperable and requiring board-level bench repairs or full unit replacement. Utilizing fast-acting external inline fuses for high-risk field actuators is highly recommended.

Commissioning & Wiring Tips

When driving highly inductive loads, such as DC contactor coils or solenoids, always install a commutation diode (flyback diode) in parallel with the load. Placing the diode close to the load prevents voltage transition spikes from generating excessive heat in the output transistors, ensuring structural component longevity over thousands of operating hours.

Installation Guidelines

CRITICAL WARNING:

Isolate and lock out all external power supplies feeding the PLC rack and output terminals prior to handling the unit. Performing installation or removing terminal blocks while power is applied can lead to device destruction, erratic logic states, or physical injury.

1 Power down the main CQM1 bus station completely.
2 Align the bottom claw of the module with the mating slot on the backplane rail.
3 Pivot the module forward until the top connector mechanism locks securely into place.
4 Secure the terminal block and connect the 24 VDC external load supply observing correct polarity.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the switching logic of this output module?
This module uses sourcing (PNP) switching logic. Current flows from the positive terminal of the external power supply, through the transistor switch inside the module, and out to the load.
Are the internal fuses user-replaceable?
No, the internal 3.5 A fuses are soldered to the circuit board and are not user-replaceable. If a fuse blows due to an external short circuit, the module must be serviced or replaced.
What is the maximum output current capacity per point?
Each output point can switch up to 300 mA at 24 VDC. However, the total current across all output points is limited by the common terminal capacity and the external power supply sizing.
Reviews

CQM1-OD214

Stock & lead time on request

Call
1 su 1

Omron CQM1-OD214 CQM1 Series Transistor Output Module

Only 5 item(s) left in stock
  • Manufacturer: Omron

  • Product No.: CQM1-OD214

  • Country of origin:Japan

  • Product Type: Transistor Output Modules

  • Payment: T/T, Western Union

  • Weight: 1300g

  • Dimensions: 145 mm x 115 mm x 50 mm

  • Shipping port: Xiamen

  • Warranty: 12 months

Quantità
Visualizza dettagli completi

Product Description

Description

Facilitating high-speed discrete control within the modular CQM1 architecture, the Omron CQM1-OD214 delivers 16 channels of solid-state PNP transistor output designed to drive solenoids, contactors, and indicating devices in industrial environments. This sourcing module interfaces directly with PLC CPU processors to execute millisecond-level switching commands, utilizing solid-state logic to eliminate the mechanical wear associated with traditional relay modules.

Features

  • Provides 16 sourcing (PNP) solid-state outputs on a single common bus.
  • Rapid switching response times under 0.4 milliseconds protect cycling equipment.
  • Built-in internal noise suppression networks minimize inductive load kickback.
  • Removable terminal block facilitates rapid module replacement without disconnecting field wiring.
  • Compact slot footprint mounts directly to the backplane without requiring separate power links.

Applications

  • Automated assembly systems requiring fast pneumatic solenoid actuation.
  • Packaging machinery control loops running high-speed product sorting and routing.
  • Material handling conveyor diverts and status indicator light banks.
  • High-density digital output expansion in confined machine control panels.

Technical Specifications

Parameter Specification
Manufacturer Omron
Model Number CQM1-OD214
Output Points 16 points (16 points/common, 1 circuit)
Output Type Transistor (Sourcing/PNP)
Operating Voltage Range 4.5 VDC to 26.4 VDC
Max. Switching Capacity 50 mA at 4.5 VDC to 300 mA at 26.4 VDC
Leakage Current 0.1 mA maximum
Residual Voltage 0.8 V maximum
ON Response Time 0.1 ms maximum
OFF Response Time 0.4 ms maximum
Internal Current Consumption 170 mA maximum at 5 VDC
Fuse Protection 3.5 A (one per common, internal, non-replaceable)
External Power Supply Rating 60 mA minimum at 5 to 24 VDC plus/minus 10%
Net Module Weight 210 grams maximum
Shipping Weight (Calculated) 0.55 kg (including protective packaging)
Package Dimensions (Calculated) 145 mm x 115 mm x 50 mm

Connections and Interfaces

Terminal Pin Signal Assignment Functional Details
0 to 15 OUT 00 to OUT 15 16 Sourcing Transistor Output Points
COM Common (V+) External load voltage supply terminal (positive rail)
0V 0V GND External load voltage return reference

Alternative Models & Compatibility

The module operates as a plug-and-play component within standard CQM1 backplanes. Systems originally built using NPN sink-type modules, such as the CQM1-OD211, are electrically distinct and cannot be swapped directly with the sourcing CQM1-OD214 without updating field wiring polarity. Ensure correct actuator coil configuration before executing swap procedures.

Application Pitfalls & Engineering Notes

This module features internal soldered 3.5 A fuses to protect internal traces against short circuits. Because these fuses are non-serviceable on-site, a severe external short on an output line will destroy the internal fuse, rendering the affected output bank inoperable and requiring board-level bench repairs or full unit replacement. Utilizing fast-acting external inline fuses for high-risk field actuators is highly recommended.

Commissioning & Wiring Tips

When driving highly inductive loads, such as DC contactor coils or solenoids, always install a commutation diode (flyback diode) in parallel with the load. Placing the diode close to the load prevents voltage transition spikes from generating excessive heat in the output transistors, ensuring structural component longevity over thousands of operating hours.

Installation Guidelines

CRITICAL WARNING:

Isolate and lock out all external power supplies feeding the PLC rack and output terminals prior to handling the unit. Performing installation or removing terminal blocks while power is applied can lead to device destruction, erratic logic states, or physical injury.

1 Power down the main CQM1 bus station completely.
2 Align the bottom claw of the module with the mating slot on the backplane rail.
3 Pivot the module forward until the top connector mechanism locks securely into place.
4 Secure the terminal block and connect the 24 VDC external load supply observing correct polarity.

What is the switching logic of this output module?

This module uses sourcing (PNP) switching logic. Current flows from the positive terminal of the external power supply, through the transistor switch inside the module, and out to the load.

Are the internal fuses user-replaceable?

No, the internal 3.5 A fuses are soldered to the circuit board and are not user-replaceable. If a fuse blows due to an external short circuit, the module must be serviced or replaced.

What is the maximum output current capacity per point?

Each output point can switch up to 300 mA at 24 VDC. However, the total current across all output points is limited by the common terminal capacity and the external power supply sizing.

Global Express Shipping

  • Standard Delivery: 4-6 Business Days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries, including rapid delivery to Saudi Arabia and UAE.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our professional technical warranty.

Orders are processed and delivered Monday-Friday (excluding public holidays).


For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .

TECHNICAL SPECIFICATIONS
