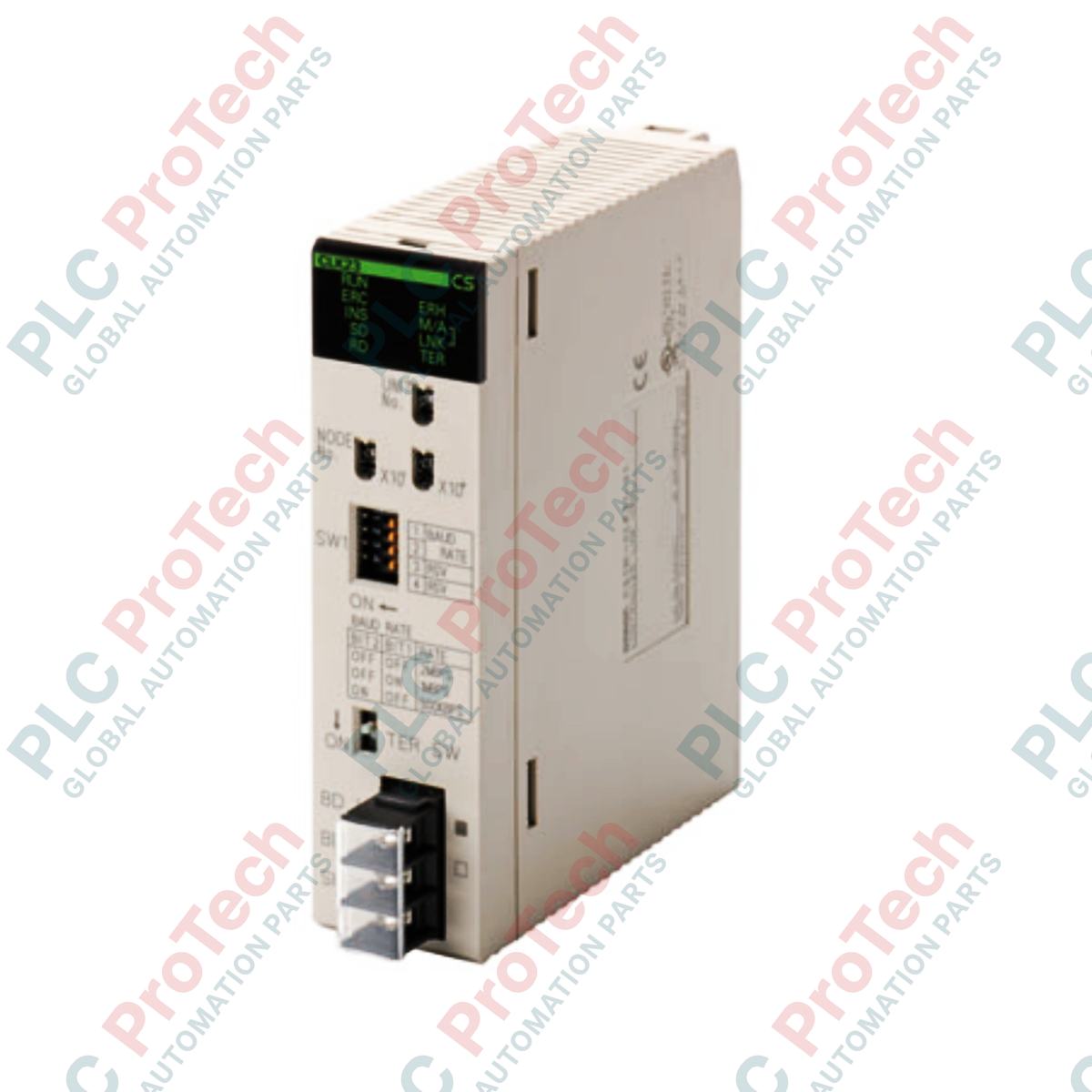

Facilitating high-speed, peer-to-peer data sharing and message exchanges across industrial networks, the Omron CS1W-CLK23 is a dedicated Controller Link Unit designed for seamless integration into CS1-series PLC systems. This module operates on a wired, shielded twisted-pair network, enabling robust communication between multiple PLCs and host computers without sacrificing processor cycle times. Built for high-density industrial control architectures, it allows systems engineers to establish reliable data links and handle intensive message services within demanding automation environments.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Omron |
| Model | CS1W-CLK23 |
| Unit Classification | CS1 CPU Bus Unit |
| Product Name | Controller Link Unit |
| Communications Cable | Wired shielded twisted-pair cable |
| Communications Type | Data links and message service |
| Duplex Support | No |
| Max. Units per CPU Unit | 8 |
| No. of Unit Numbers Allocated | 1 |
| Current Consumption | 0.33 A at 5 V DC |
| Compliance Standards | UC1, N, L, CE |
| Shipping Weight (Calculated) | 1.5 kg |
The CS1W-CLK23 replaces legacy Controller Link Units such as the CS1W-CLK21-V1. It maintains backwards compatibility with existing wired twisted-pair Controller Link modules on the same physical segment. However, engineers must verify that the CPU Unit's firmware is compatible with the routing table configurations required by this revision level to prevent routing communication fault codes during startup.
Network termination resistors (110 ohms) must be physically enabled at the two extreme end-nodes of the twisted-pair trunk. Failure to install or switch on these terminators will cause high packet-error rates and eventual token loss under heavy electromagnetic interference (EMI) conditions. Keep transmission speed settings uniform across all nodes on the network; unmatched baud rate settings will prevent the unit from joining the active token ring.
When routing the shielded twisted-pair communication line, ensure the cable shield is grounded at only one point of the network segment to avoid ground loops. Additionally, run the Controller Link cabling in dedicated, grounded metal conduits isolated from high-voltage AC lines or variable frequency drive (VFD) output motor cables to maximize signal integrity and prevent data corruption.
CRITICAL WARNING
Completely de-energize the PLC backplane and all associated power supplies before mounting or removing the CS1W-CLK23 module. Hot-swapping CPU bus units will cause irreversible hardware damage to the internal bus transceiver circuitry and corrupt running PLC memory structures.
