Omron E2C-EDR6-F E2C-EDA High Precision Positioning Inductive Proximity Sensor

SKU E2C-EDR6-F

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Omron
Product No.: E2C-EDR6-F
Origin Japan
Product Type: Proximity Sensors
Payment: T/T, Western Union
Weight: 0.12 kg
Dimensions: 5 x 5 x 3 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

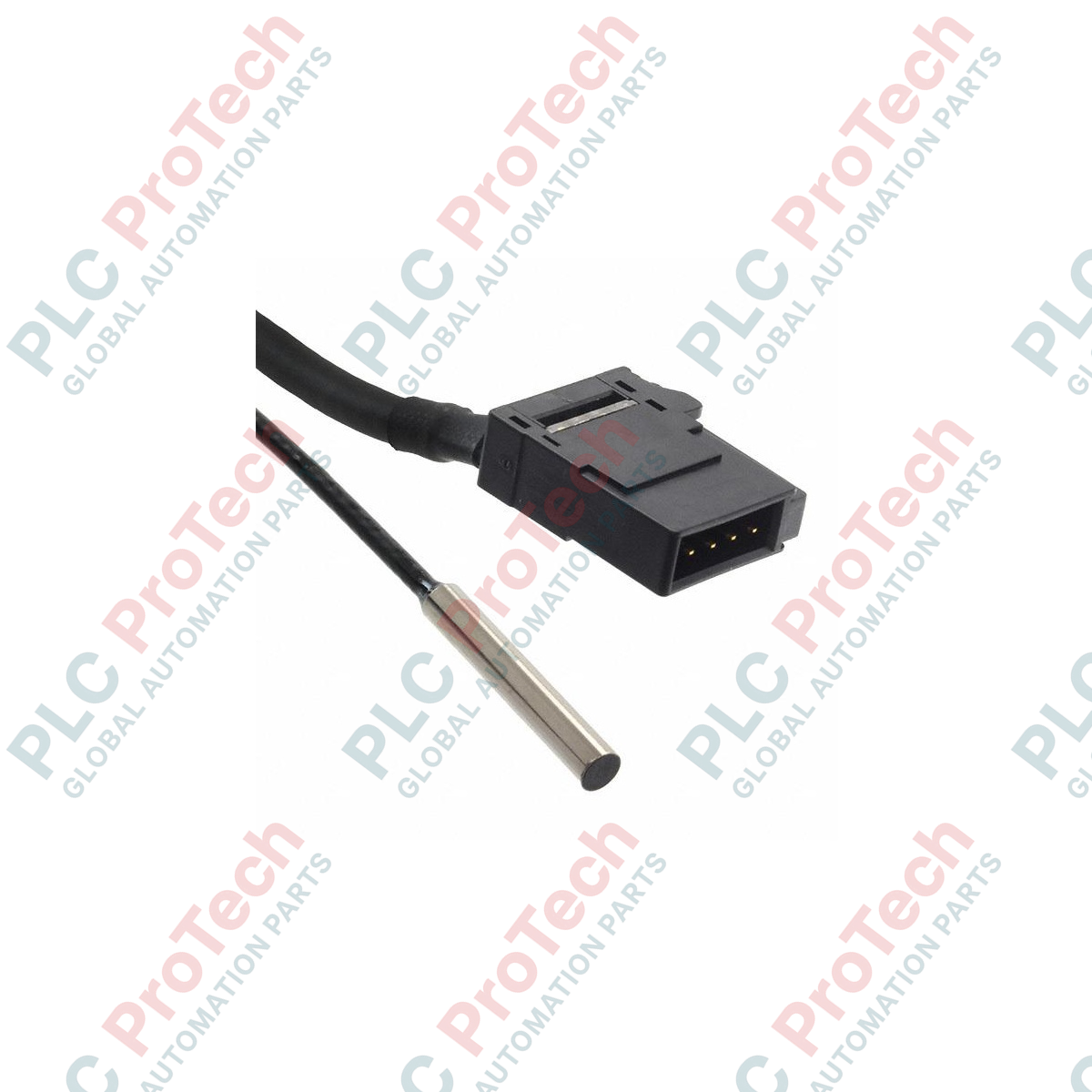

Engineered for micro-positioning and highly precise displacement detection, the E2C-EDR6-F sensor head interfaces directly with E2C-EDA series amplifiers. This high-resolution inductive proximity sensor features an ultra-compact 3 mm diameter cylindrical housing, enabling integration into highly confined mechanical assemblies. It provides sub-micron level repeatable accuracy, making it an excellent choice for tracking magnetic metals in precision automation, semiconductor handling, and quality control systems.

Features

Ultra-compact 3 mm diameter by 18 mm length cylindrical body for space-constrained installations.
Exceptional repeat accuracy of 1 micrometer for highly reliable micro-positioning tasks.
Optimized sensing characteristics for magnetic metal targets, specifically iron (S50C).
Variable hysteresis distance adjustable via compatible E2C-EDA amplifier configurations.
Low current consumption operating profile (10 mA maximum).

Applications

Semiconductor manufacturing (wafer alignment and carrier detection).
Precision electronic assembly and component inspection.
Automated tooling calibration and metal stamping die monitoring.
Laboratory instrumentation, micro-fluidics, and medical device assembly lines.

Technical Specifications

Manufacturer	Omron
Part Number / Model	E2C-EDR6-F
Compatible Series	E2C-EDA Series Amplifiers
Housing Diameter	3 mm
Housing Length	18 mm
Sensing Distance	0.6 mm
Sensing Target Type	Magnetic metal
Standard Target Size / Material	5 x 5 x 3 mm, Iron (S50C)
Repeat Accuracy	1 micrometer (1 um)
Hysteresis	Variable
Insulation Resistance	50 M Ohm minimum (at 500 VDC)
Current Consumption	10 mA maximum
Ambient Operating/Storage Humidity	35% to 85% RH (non-condensing)
Weight	0.12 kg

Installation Guidelines

Mounting: Ensure the sensor head is securely mounted using non-marring mounting brackets. Avoid over-tightening the 3 mm cylindrical body to prevent internal coil damage.
Shielding & Grounding: Always ground the companion E2C-EDA amplifier unit and use shielded cabling to shield the high-precision signal path from ambient electromagnetic interference (EMI).
Cable Routing: Route the sensor head cable separate from high-voltage AC lines or motor drive cables to prevent electrical noise coupling.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the repeat accuracy of the Omron E2C-EDR6-F sensor?

The E2C-EDR6-F sensor head features a high repeat accuracy of 1 micrometer (1 um) when detecting standard magnetic metal targets.

Which amplifiers are compatible with the E2C-EDR6-F sensor head?

This sensor head is designed for use with the Omron E2C-EDA series high-precision positioning inductive proximity amplifiers.

What are the physical dimensions of the E2C-EDR6-F sensor head?

The sensor head is cylindrical with an ultra-compact diameter of 3 mm and an overall length of 18 mm.
