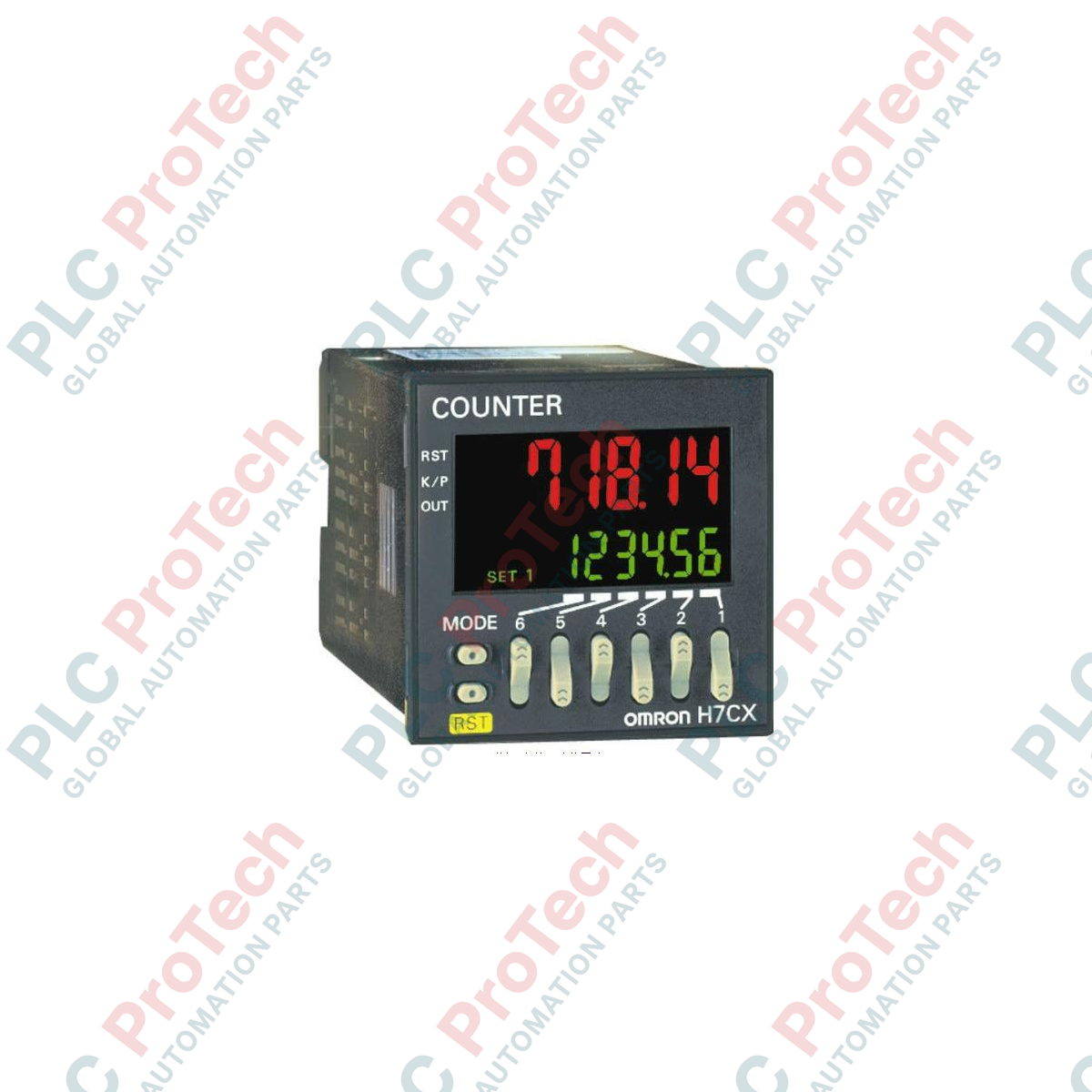

Designed for highly precise industrial counting and speed monitoring applications, the Omron H7CX-A11SD1-N serves as a highly versatile digital counter and tachometer module. Operating within standard automation panels, this 1/16 DIN panel-mounted instrument offers flexible configuration options including 1-stage preset counting, total counting, batch counting, dual counting, and tachometer functionality. Featuring a high-visibility 6-digit display, this unit ensures reliable monitoring in diverse manufacturing environments.
The device is built to facilitate seamless integration into low-voltage control circuits, accommodating both DC and AC supply voltages. Its 11-pin socket configuration streamlines installation and field replacements, reducing system downtime during maintenance cycles.
| Manufacturer | Omron |
| Part Number/Model | H7CX-A11SD1-N |
| Series | H7CX-N |
| Product Type | Multifunction Counter/Tachometer |
| Display Type | 6-digit LCD (Negative transmissive, backlite) |
| Supply Voltage | 12 to 24 VDC / 24 VAC (50/60 Hz) |
| Power Consumption | Approx. 4.1 W at 24 VAC, 3.1 W at 24 VDC |
| Input Method | No-voltage input (NPN) or voltage input (PNP) |
| Output Type | Transistor output (NPN open collector) |
| External Connection | 11-pin socket |
| Mounting Type | Panel mounting (1/16 DIN) |
| Dimensions | 48 mm x 48 mm x 84.1 mm |
| Operating Temperature | -10 to 55 degC (with no icing or condensation) |
| Storage Temperature | -25 to 65 degC (with no icing or condensation) |
| Pin Number | Signal Name | Description |
|---|---|---|
| 1 | COM | Common terminal for inputs |
| 2 | POWER | Power supply input (0V / Neutral) |
| 3 | RST | Reset input |
| 4 | CP1 | Count input 1 / Tachometer input |
| 5 | GATE | Gate input |
| 6 | CP2 | Count input 2 |
| 7 | POWER | Power supply input (+V / Phase) |
| 8 | OUT | Transistor output (Collector) |
| 9 | OUT COM | Transistor output common (Emitter) |
| 10 | NC / VOUT | No Connection / Sensor power supply output |
| 11 | KEY | Key protection input |
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: H7CX-A11SD1-N
Country of origin:Japan
Product Type: Multifunction Counters
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 48 mm x 48 mm x 84.1 mm
Shipping port: Xiamen
Warranty: 12 months
