Description

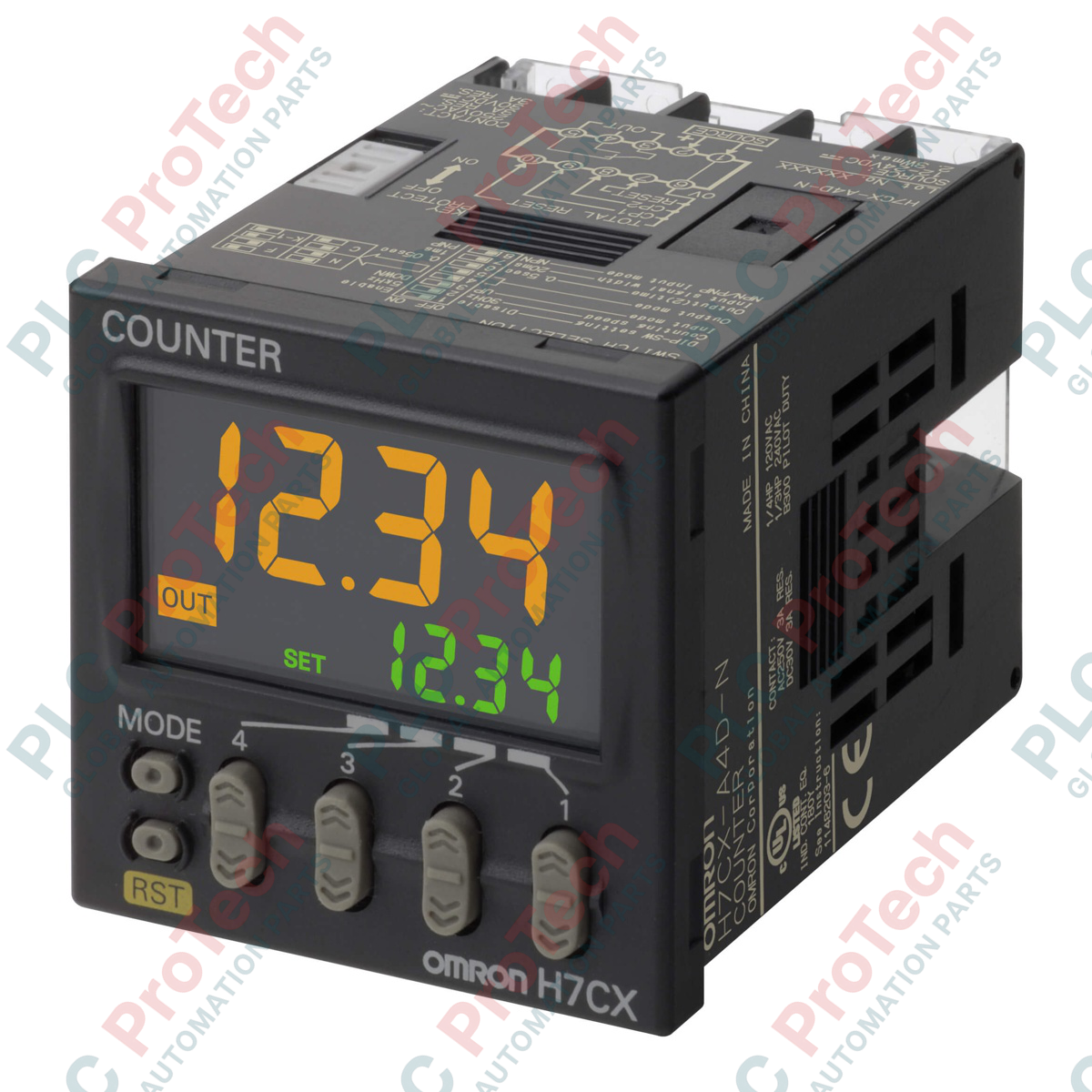

Designed for precise industrial timing and counting operations, the H7CX-A4W-N serves as a highly reliable 2-stage digital multifunction counter within the Omron H7CX series. This control component integrates a clear 4-digit display with robust contact outputs to handle dual-stage control configurations across diverse industrial processing lines. Utilizing secure screw terminal connections for field wiring, this device operates on a wide-range power supply of 100 to 240 VAC, allowing for seamless integration into standard control panels and automation networks.

Features

• Highly visible 4-digit layout for process value and preset visualization.
• Flexible 2-stage setting parameters supporting precise sequential process control.
• Contact output configuration featuring SPST and SPDT relay outputs.
• Robust industrial-grade screw terminals ensuring secure physical wire retention.
• Accepts input power voltages from 100 to 240 VAC for global electrical compatibility.

Applications

• Packaging, sorting, and sealing machinery.
• Batching systems and automated liquid or solid dispensing.
• Material handling systems and conveyor line monitoring.
• Cut-to-length processing systems in textiles, metals, and plastics.

Technical Specifications

Installation Guidelines

Ensure the mounting panel thickness is sufficient to support the unit securely. Connect field wiring to the designated screw terminals according to the system schematic, ensuring correct terminal torque is applied. Protect the unit from high-frequency electrical noise by routing signal lines away from high-voltage power cables. Keep the operating environment within standard manufacturer temperature and humidity tolerances.
