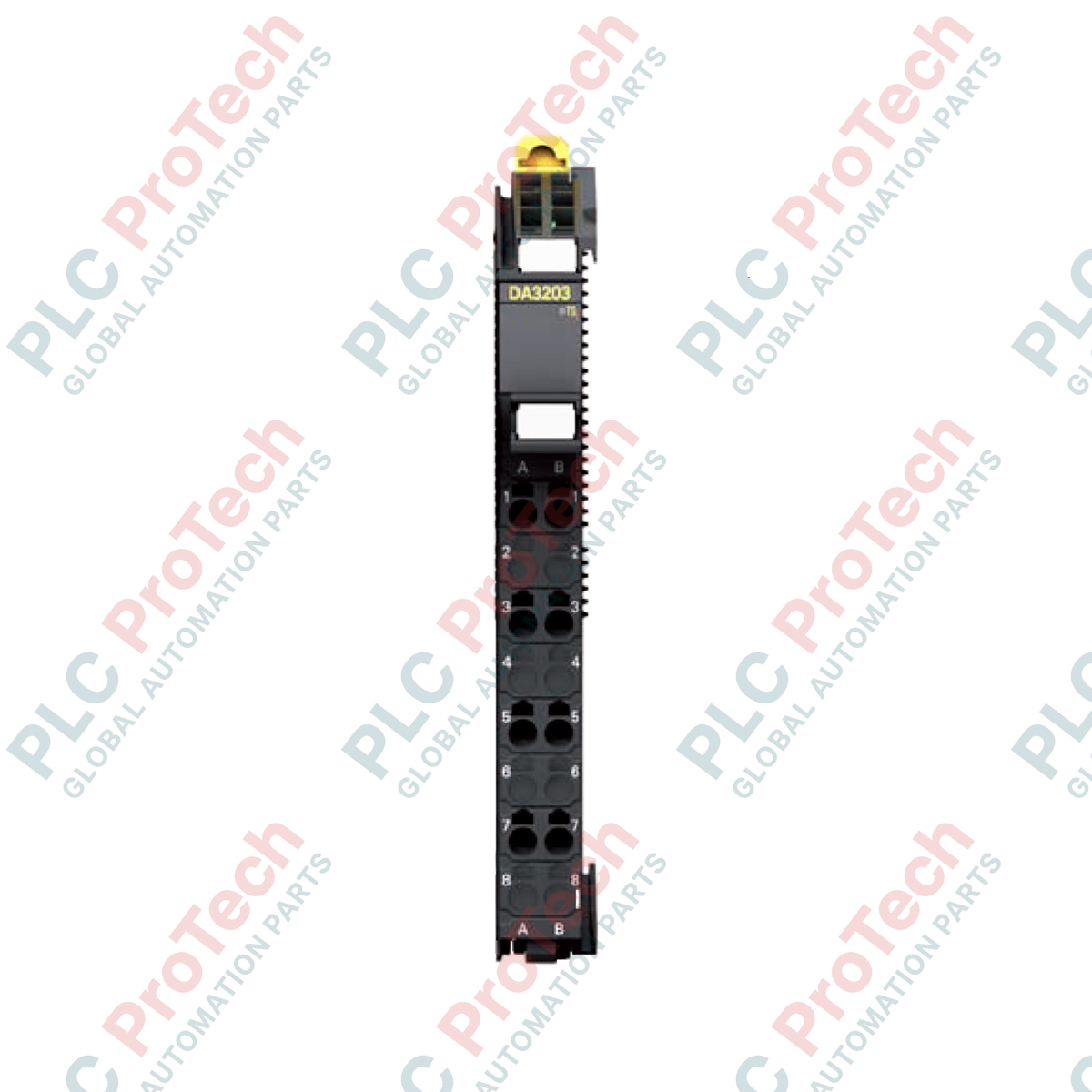

Facilitating precise signal transmission within Sysmac automation architectures, the Omron NX-DA3203 provides modular analog current outputs in a compact form factor. This high-density output channel interface mounts directly to the NX-series Bus Coupler, converting internal digital PLC variables into standard analog current signals for real-world field control. Featuring a 4 to 20 mA output range across four independent points, the module achieves highly repeatable loop control with an operational resolution of 1/8000. Built with space-saving 12 mm housing, it integrates seamlessly into decentralized industrial environments, minimizing panel footprint while ensuring stable signal integrity through modern Push-In Plus connection terminals.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Omron |
| Model Number | NX-DA3203 |
| Module Type | Analog Output Unit |
| Number of Outputs | 4 channels |
| Output Range | 4 to 20 mA |
| Output Resolution | 1/8000 (0 to 8000 decimal scaling) |
| Overall Accuracy (25 degC) | +/-0.3% of full scale |
| Conversion Time | 250 us per point |
| I/O Refreshing Method | Free-Run refreshing |
| Module Width | 12 mm |
| Unit Weight | 0.07 kg (70 g) |
| Shipping Weight (Calculated) | 0.20 kg |
The NX-DA3203 is designed strictly for standard 4 to 20 mA analog output loops. If your field equipment demands voltage regulation, specify the NX-DA3103 (0 to 10 V) or NX-DA3105 (-10 to +10 V) variations. Configuration parameters are stored globally in the EtherCAT coupler or master PLC, facilitating fast module replacement without requiring manual field unit recalibration.
This module relies on Free-Run I/O refreshing, which processes updates independently of the synchronous bus cycle. It is not suitable for high-speed synchronized motion control or precision multi-axis coordination requiring exact EtherCAT Distributed Clock (DC) synchronization. For synchronous multi-channel synchronization, choose a module designed for synchronous refreshing (such as the NX-DA3205).
Always route the 4 to 20 mA output signals through shielded twisted-pair (STP) cables to protect vulnerable analog commands from adjacent high-voltage variable speed drive output lines. Ground the cable shield at the control panel side only to eliminate parasitic ground loops that can cause drifting offsets at your actuators.
Global Express Shipping
Returns & Warranty
Manufacturer: Omron
Product No.: NX-DA3203
Country of origin:Japan
Product Type: Analog Output Modules
Payment: T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months
