NX-DA3605

Omron

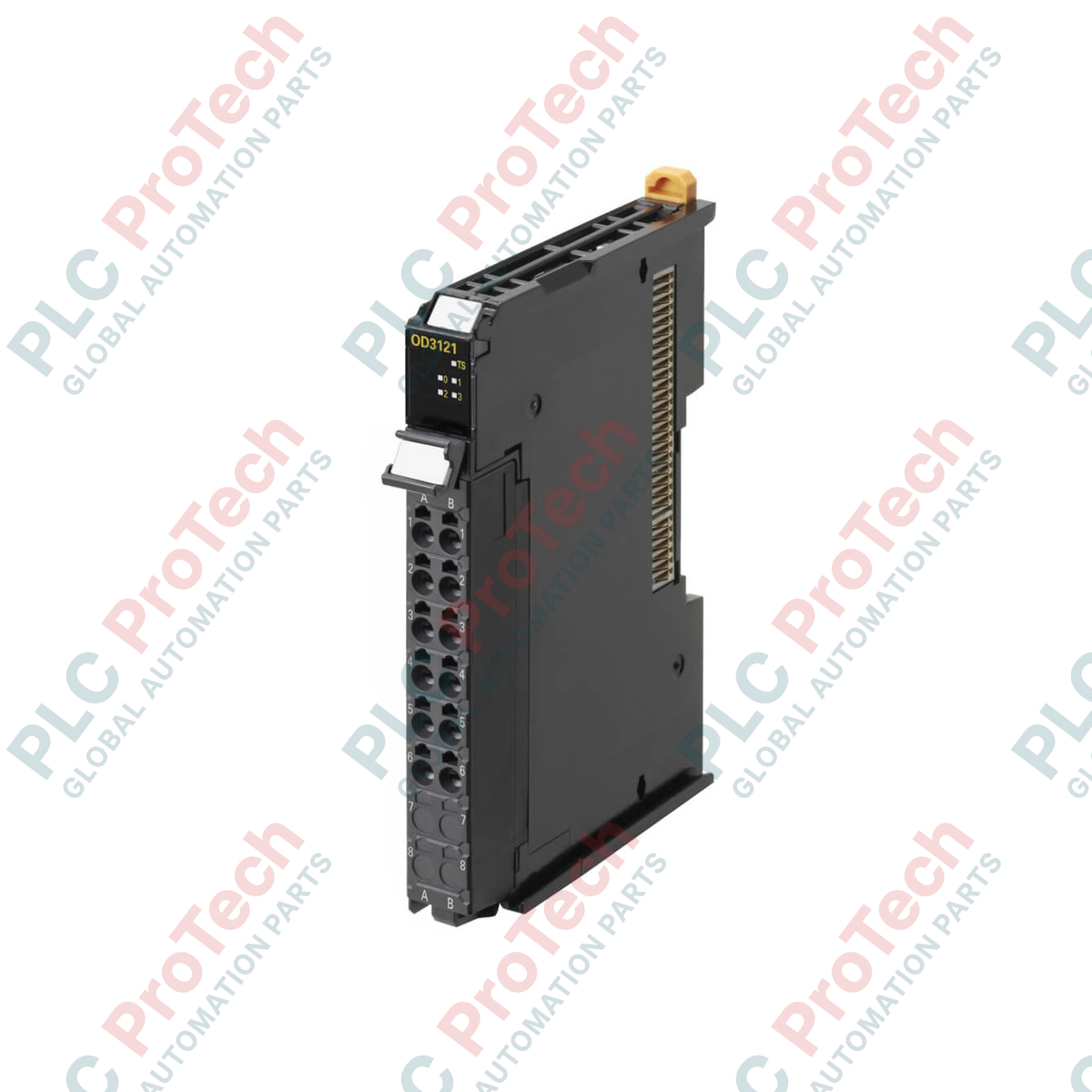

Omron NX-DA3605 NX Series Analog Output Unit

SKU NX-DA3605

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Omron
  • Product No.: NX-DA3605
  • Origin Japan
  • Product Type: Analog Output Modules
  • Payment: T/T, Western Union
  • Weight: 0.07 kg
  • Dimensions: 12 mm x 71 mm x 100 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Analog Output Modules NX Series
Quantità
Call sales Contact

Product Description

Description

Designed for high-speed, high-precision motion and process control, the Omron NX-DA3605 functions as a high-performance analog output module within the Omron NX-series I/O system. This specific module features four high-resolution analog outputs with an operating range of -10 to 10 V. Through integration with the NX-series bus, the unit supports synchronous I/O refreshing, allowing it to align precisely with the motion control cycle of host controllers or EtherCAT coupler units. Wiring is completed via an integrated, tool-less push-in terminal block, which significantly simplifies control cabinet assembly and guarantees high resistance to mechanical vibration.

Features

  • Four high-density analog output channels operating in a -10 to 10 V range.
  • Rapid conversion rate of 0.04 ms per unit, minimizing loop response latency.
  • 15-bit resolution for precise modulation of control elements.
  • Synchronous I/O refreshing with the NX bus system for jitter-free, deterministic timing.
  • Ultra-compact 12-mm housing width to conserve rail space in crowded electrical enclosures.
  • Tool-less Push-in Plus terminal connection for secure and maintenance-free wire terminations.

Applications

  • Variable frequency drive (VFD) speed and torque setpoint regulation.
  • Proportional valve control in hydraulic and pneumatic systems.
  • Positioning and control loops in multi-axis robotic and packaging machinery.
  • Process regulation applications requiring high-speed analog reference signaling.

Technical Specifications

Manufacturer Omron
Part Number/Model NX-DA3605
Series NX Series I/O
Module Type Analog Output Unit
Number of Analog Outputs 4
Output Range -10 to 10 V
Resolution 15-bit (1/30,000 full scale)
Conversion Time 0.04 ms/unit
Refresh Method Synchronous I/O refreshing / Free-run refreshing
Connection Type Push-in Plus terminal block (16-terminal connector)
I/O System Bus NX I/O Bus
Degree of Protection IP20
Dimensions (W x D x H) 12 mm x 71 mm x 100 mm
Weight 0.07 kg

Connections and Interfaces

Terminal Number Signal Name Function
A1 / B1 V1+ / V2+ Analog Voltage Output 1 / 2 (Positive)
A3 / B3 COM1 / COM2 Output Common 1 / 2
A5 / B5 V3+ / V4+ Analog Voltage Output 3 / 4 (Positive)
A7 / B7 COM3 / COM4 Output Common 3 / 4
A8 / B8 NC No Connection

Installation Guidelines

  • Mount vertically on a standard 35 mm DIN rail, securing with end brackets on both sides of the module stack.
  • For wiring, use solid wire or stranded wire with ferrules. Push the wire directly into the terminal hole until it locks.
  • Ensure the system power is completely isolated before inserting or removing the terminal block from the module body.
  • Provide adequate ventilation clearance of at least 30 mm above and below the module assembly.

Compliance and Certifications

  • CE Mark
  • cULus Listed
  • RCM
  • KC (Korean Communications Commission)
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the output voltage range of the Omron NX-DA3605?
The NX-DA3605 provides four analog outputs configured for a -10 to 10 V linear range.
What wiring method is used on the NX-DA3605?
The unit utilizes Omron Push-in Plus technology, allowing tool-free connection of solid wires or ferrules directly into the terminal block.
Does this module support synchronous refreshing?
Yes, the NX-DA3605 supports synchronous I/O refreshing on the NX bus, which synchronizes output timing with the PLC controller's execution cycle for precise time-deterministic control.
Is the terminal block on the NX-DA3605 removable?
Yes, the terminal block can be detached from the module to facilitate quick wiring, maintenance, and unit replacement.
