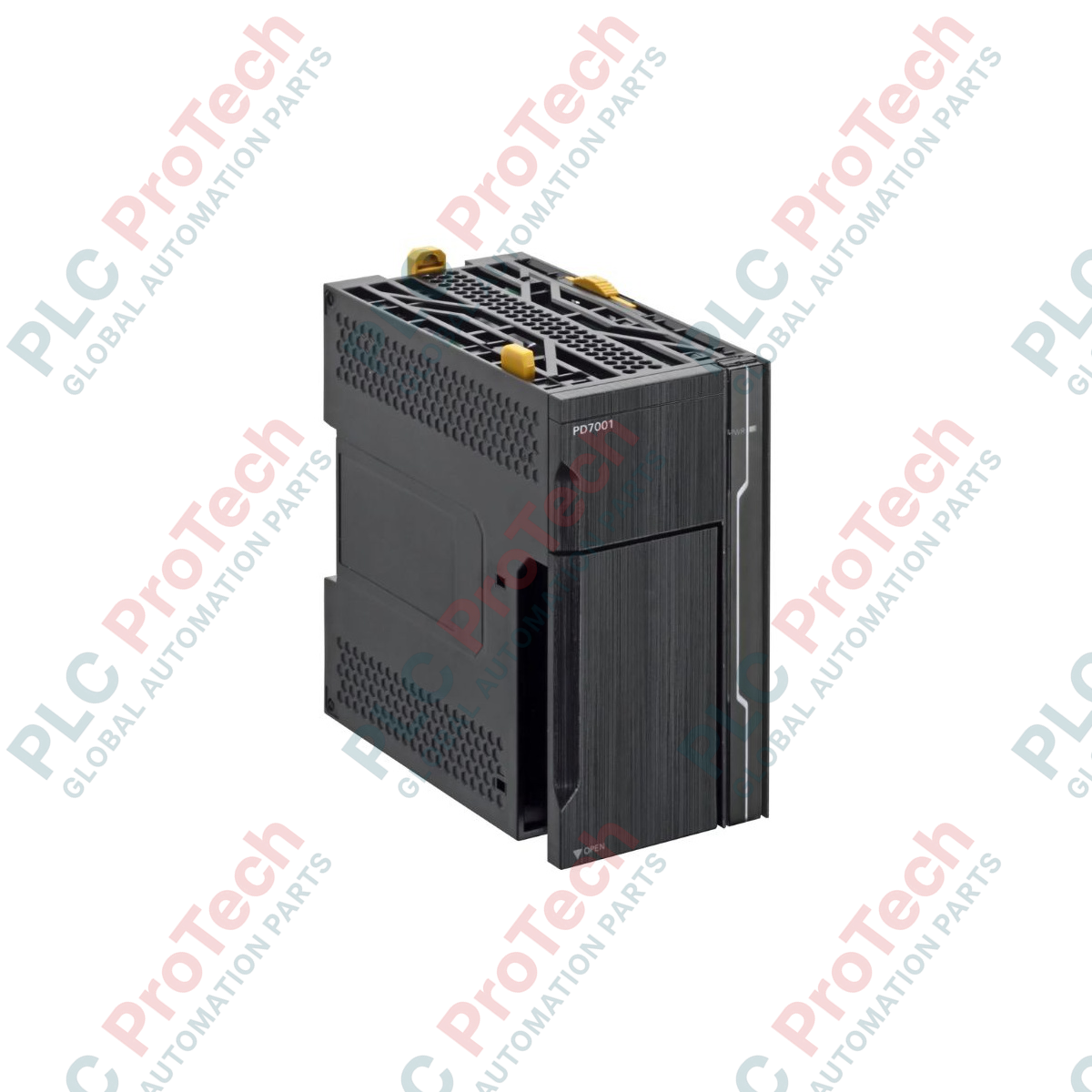

Omron NX-PD7001 NX-Series Power Supply Unit

SKU NX-PD7001ÿÿÿÿÿÿ

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Omron
  • Product No.: NX-PD7001ÿÿÿÿÿÿ
  • Origin Japan
  • Product Type: Power Supply Units
  • Payment: T/T, Western Union
  • Weight: 0.29 kg
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

NX-Series Power Supply Units
Quantità
Call sales Contact

Product Description

Description

System power requirements within the Omron Sysmac platform are efficiently managed by the NX-PD7001 power supply module. This NX-Series Power Supply Unit provides stable, regulated DC power distribution to adjacent NX-series I/O units across the internal Unit bus. It features a built-in RUN output contact that changes state to reflect the operational status of the connected CPU unit or communication coupler, facilitating simple remote diagnostics. Engineered for DIN-rail mounting in tight electrical enclosures, the module helps prevent voltage fluctuations and safely manages power distribution across high-density automation layouts.

Features

  • Delivers up to 70 W total output capacity to power downstream internal bus systems and modules.
  • Integrated RUN output relay utilizing an SPST-NO contact configuration for status indication.
  • Designed for standard 24 VDC input with a wide operational tolerance range from 20.4 VDC to 28.8 VDC.
  • Internal current suppression safeguards the system against high inrush currents during cold start-ups.
  • Compact design parameters enable high-density component packing on standard DIN rails.

Applications

  • Power management within Omron NJ/NX series controller architectures.
  • Distributed I/O networks using EtherCAT or EtherNet/IP bus couplers.
  • Industrial machinery, assembly systems, and packaging automation installations.

Technical Specifications

Manufacturer Omron
Model / Part Number NX-PD7001
Series NX-Series
Power Supply Voltage 24 VDC (Operational range: 20.4 to 28.8 VDC)
Power Consumption 85 W maximum
Output Capacity 70 W maximum
Inrush Current 30 A / 2 ms max. (cold start); 7 A / 3 s max. (cold start)
RUN Output Contact SPST-NO configuration
Switching Capacity 250 VAC, 2 A (resistive); 120 VAC, 0.5 A (inductive); 24 VDC, 2 A (resistive)
Output Terminal (service supply) Not provided
Net Weight 0.29 kg

Connections and Interfaces

Terminal Name Function / Description
24 VDC Positive power supply input connection
0 VDC Negative power supply input connection
RUN (1) Status output contact terminal 1 (SPST-NO)
RUN (2) Status output contact terminal 2 (SPST-NO)

Installation Guidelines

  • Mount the unit on a standard 35 mm DIN rail in a horizontal orientation.
  • Keep venting channels clear of obstructions to support convective cooling inside the control panel.
  • Verify that the incoming power supply does not exceed the maximum limit of 28.8 VDC.
  • Ensure appropriate wire gauge sizes are used for the main 24 VDC supply terminal connection to avoid excessive line voltage drop.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the Omron NX-PD7001?
The Omron NX-PD7001 is a power supply unit within the NX-series system that distributes 24 VDC power to the internal bus of connected I/O units.
Does the NX-PD7001 feature a service supply output?
No, this unit does not provide a service supply output terminal.
What are the ratings of the built-in RUN output contact?
The RUN output is an SPST-NO contact rated at 250 VAC (2 A resistive), 120 VAC (0.5 A inductive), or 24 VDC (2 A resistive).
What is the allowable input voltage range for the NX-PD7001?
The nominal rating is 24 VDC, with an acceptable operational range of 20.4 VDC to 28.8 VDC.
