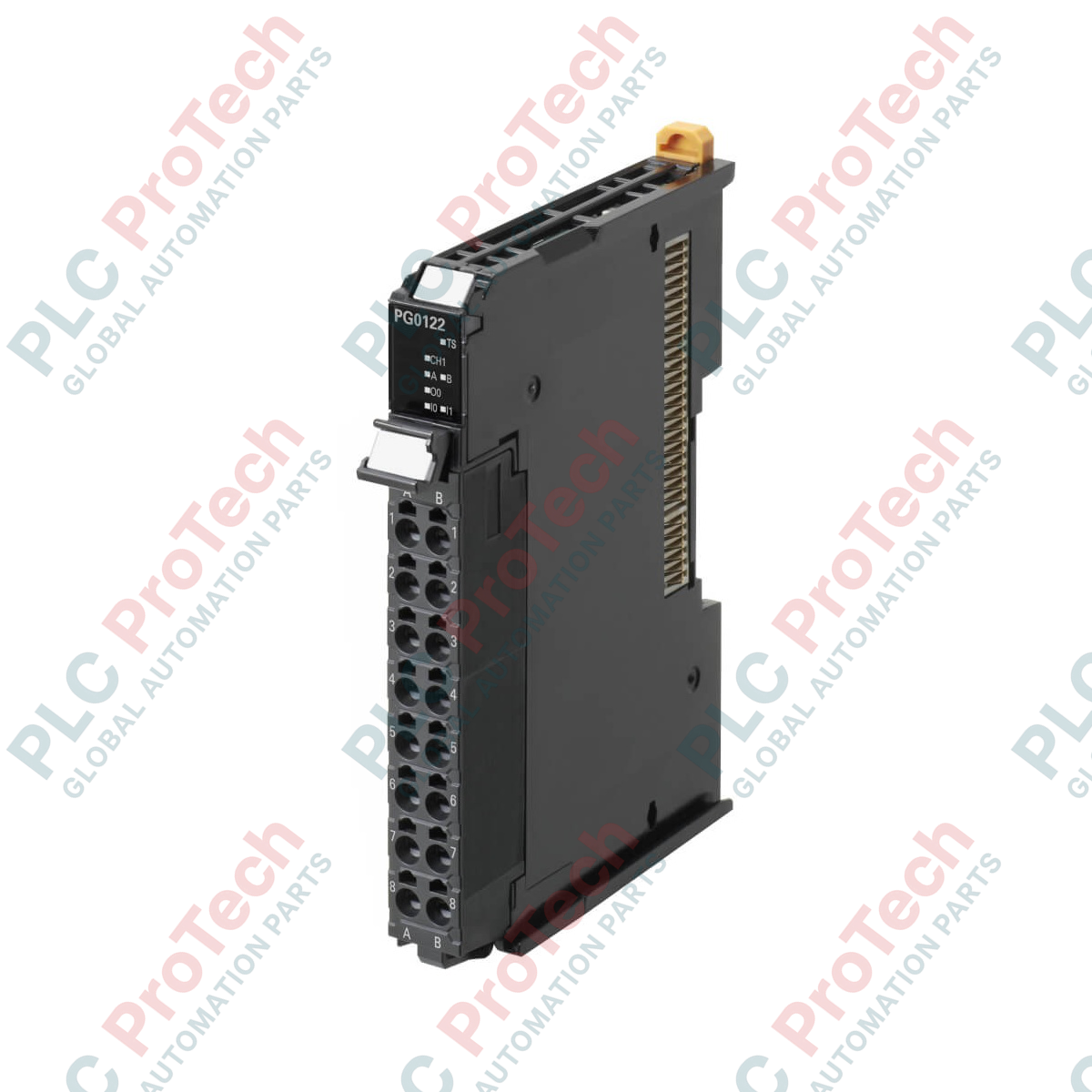

Designed for high-speed, synchronized motion control within the Sysmac automation platform, the NX-PG0122 functions as a high-performance pulse output module. This single-channel unit is engineered to control stepper motor drives and servo drives that accept pulse string inputs, offering an open-loop control configuration. Operating with an open collector, PNP-type output, the module delivers exceptional response times and precision control.
The NX-PG0122 integrates seamlessly into the Omron NX-series I/O system, supporting synchronous I/O refreshing and task period prioritized refreshing to coordinate motion tasks perfectly with the primary CPU unit. Featuring a compact 12 mm width, it optimizes control cabinet space while offering robust performance for complex positioning profiles.
| Manufacturer | Omron |
| Model / Part Number | NX-PG0122 |
| Product Type | Pulse Output Unit (Open Collector, PNP Type) |
| Number of Channels | 1 |
| Control Method | Open-loop control through pulse string output |
| Pulse Output Form | Open collector output (PNP) |
| Maximum Pulse Output Speed | 500 kpps |
| Pulse Output Methods | Forward/reverse direction outputs, or Pulse + direction outputs |
| Position Control Range | -2,147,483,648 to 2,147,483,647 pulses |
| Velocity Control Range | 1 to 500,000 pps |
| I/O Refreshing Method | Synchronous I/O refreshing or task period prioritized refreshing |
| External Connections | Screwless clamping terminal block (16 terminals) |
| Current Consumption | 20 mA maximum (from I/O power supply) |
| Maximum Cable Length | 3 m |
| Dimensions (W x H x D) | 12 x 100 x 71 mm |
| Weight | 0.07 kg |
| Signal Type | Quantity | Description |
|---|---|---|
| Inputs | 2 | External inputs for event/limit sensing |
| Outputs | 3 | Forward direction pulse output, reverse direction pulse output, and one external PNP output |
| Terminal Interface | 16-pin | Push-in screwless terminal connections |
