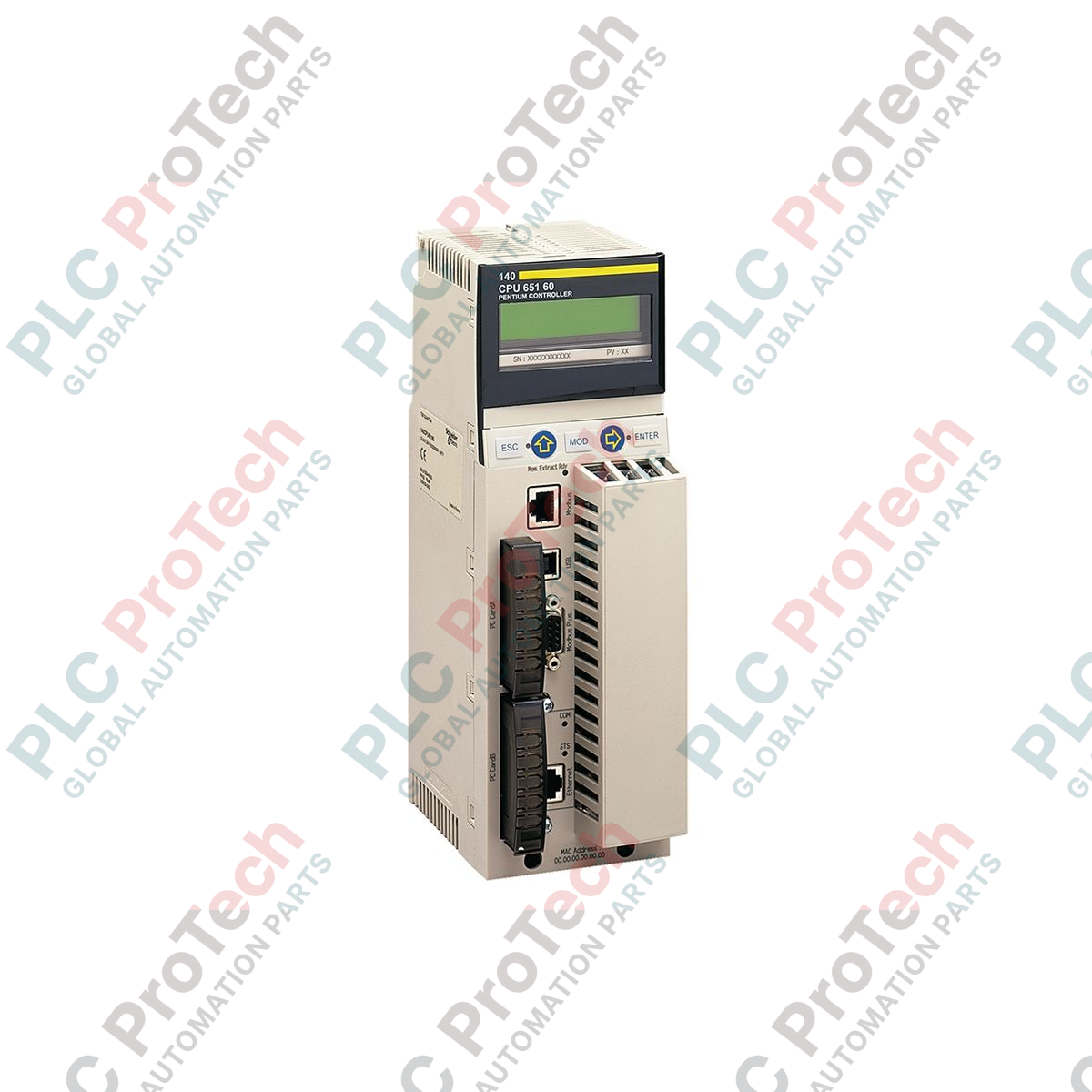

The Schneider Electric 140CPU65150 is a Unity processor designed for process control within the Modicon Quantum automation platform. Operating at a clock frequency of 166 MHz, the module features an internal 768 kB RAM alongside expandable memory capabilities via PCMCIA cards for program storage (up to 7168 kB) and file storage (up to 8 MB). The 140CPU65150 features integrated communication interfaces including 1 Modbus Plus, 1 Ethernet TCP/IP, 1 Modbus RS232/485, and 1 USB port, supporting up to 6 optional communication modules across various protocols. Built on a backplane bus architecture requiring 2160 mA bus current, it manages up to 2 local racks, 63 Modbus Plus distributed I/O stations, and 31 remote I/O stations over Ethernet or S908 architectures.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140CPU65150 |
| Product Type | Unity processor module |
| Range of Product | Modicon Quantum automation platform |
| Clock Frequency | 166 MHz |
| Internal RAM | 768 kB |
| Expandable Memory (Program) | 7168 kB via PCMCIA card |
| Expandable Memory (File Storage) | 8 MB via PCMCIA card |
| Key Switch Function | Memory port on/off |
| Bus Current Requirement | 2160 mA |
| Local Signalling | 1 LED (green) Ethernet activity (COM), 1 LED (red) Ethernet collision |
| Number of Racks | 2-local |
| Distributed I/O Stations | 63 Modbus Plus |
| Remote I/O Stations | 31 (S908 or Ethernet Quantum), 16 (Ethernet X80) |
| Remote Discrete I/O Capacity | 31744 inputs, 31744 outputs |
| Distributed Discrete I/O Capacity | 8000 inputs, 8000 outputs per network Modbus Plus |
| Remote Analogue I/O Capacity | 1984 inputs, 1984 outputs (S908) |
| Distributed Analogue I/O Capacity | 500 inputs, 500 outputs per network Modbus Plus |
| Optional Modules Capacity | Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Communication Services | Ethernet router |
| Package Weight | 3.161 lb (US) / 1.434 kg |
| Package Dimensions (H x W x L) | 11.0 cm x 18.5 cm x 32.5 cm (4.3 in x 7.3 in x 12.8 in) |
| Connector Pin | Function |
|---|---|
| SUB-D 9 (Female) | Modbus Plus network connection |
| RJ45 (Ethernet) | Ethernet TCP/IP network connection |
| RJ45 (Modbus) | Modbus bus connection (RS232/485 Modbus/ASCII) |
| USB | USB connection |
Global Express Shipping
Returns & Warranty
Manufacturer: Schneider Electric
Product No.: 140CPU65150
Country of origin:France
Product Type: Processor Modules
Payment: T/T, Western Union
Weight: 1434g
Dimensions: 11.0 cm x 18.5 cm x 32.5 cm (H x W x L)
Shipping port: Xiamen
Warranty: 12 months
The Schneider Electric 140CPU65150 is a Unity processor designed for process control within the Modicon Quantum automation platform. Operating at a clock frequency of 166 MHz, the module features an internal 768 kB RAM alongside expandable memory capabilities via PCMCIA cards for program storage (up to 7168 kB) and file storage (up to 8 MB). The 140CPU65150 features integrated communication interfaces including 1 Modbus Plus, 1 Ethernet TCP/IP, 1 Modbus RS232/485, and 1 USB port, supporting up to 6 optional communication modules across various protocols. Built on a backplane bus architecture requiring 2160 mA bus current, it manages up to 2 local racks, 63 Modbus Plus distributed I/O stations, and 31 remote I/O stations over Ethernet or S908 architectures.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140CPU65150 |
| Product Type | Unity processor module |
| Range of Product | Modicon Quantum automation platform |
| Clock Frequency | 166 MHz |
| Internal RAM | 768 kB |
| Expandable Memory (Program) | 7168 kB via PCMCIA card |
| Expandable Memory (File Storage) | 8 MB via PCMCIA card |
| Key Switch Function | Memory port on/off |
| Bus Current Requirement | 2160 mA |
| Local Signalling | 1 LED (green) Ethernet activity (COM), 1 LED (red) Ethernet collision |
| Number of Racks | 2-local |
| Distributed I/O Stations | 63 Modbus Plus |
| Remote I/O Stations | 31 (S908 or Ethernet Quantum), 16 (Ethernet X80) |
| Remote Discrete I/O Capacity | 31744 inputs, 31744 outputs |
| Distributed Discrete I/O Capacity | 8000 inputs, 8000 outputs per network Modbus Plus |
| Remote Analogue I/O Capacity | 1984 inputs, 1984 outputs (S908) |
| Distributed Analogue I/O Capacity | 500 inputs, 500 outputs per network Modbus Plus |
| Optional Modules Capacity | Up to 6 (Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max) |
| Communication Services | Ethernet router |
| Package Weight | 3.161 lb (US) / 1.434 kg |
| Package Dimensions (H x W x L) | 11.0 cm x 18.5 cm x 32.5 cm (4.3 in x 7.3 in x 12.8 in) |
| Connector Pin | Function |
|---|---|
| SUB-D 9 (Female) | Modbus Plus network connection |
| RJ45 (Ethernet) | Ethernet TCP/IP network connection |
| RJ45 (Modbus) | Modbus bus connection (RS232/485 Modbus/ASCII) |
| USB | USB connection |
