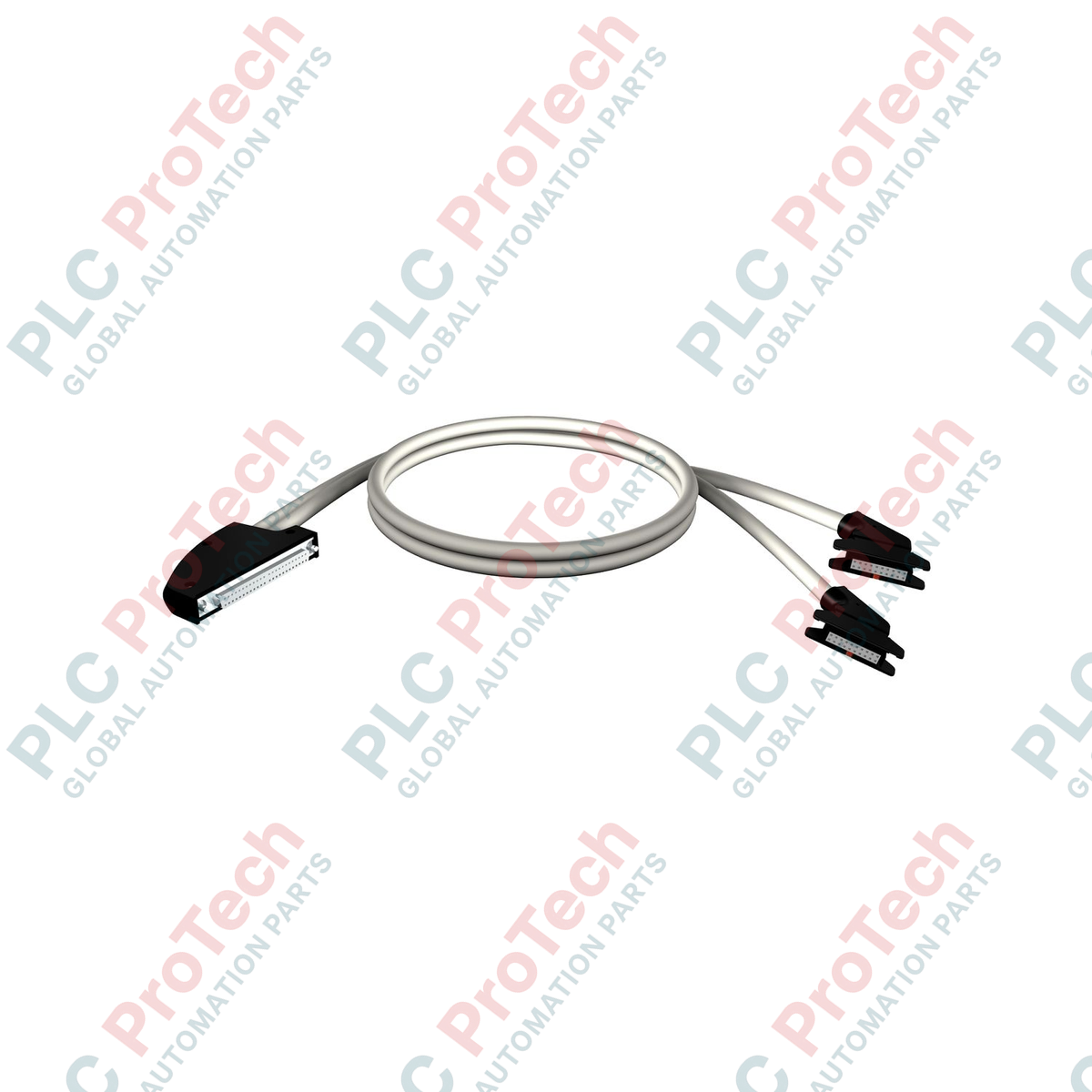

Facilitating rapid point-to-point wiring in industrial control panels, the Schneider Electric BMXFCC303 is a pre-formed connection cordset engineered specifically for the Modicon M340 automation platform. This 3-meter cable assembly streamlines the integration of high-density I/O modules by splitting a single 40-pin multi-point connector into two standard 20-pin HE10 connectors, minimizing manual wiring errors and accelerating commissioning times.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | BMXFCC303 |
| Product Range | Modicon M340 |
| Cable Type | Pre-formed Cordset |
| Cable Length | 3 meters (9.84 feet) |
| Connector A | 1 x 40-pin Connector |
| Connector B | 2 x HE10 Connectors (20-pin) |
| Net Weight | 0.89 kg (1.96 lbs) |
| Packaging Dimensions | 29.0 x 25.0 x 4.0 cm |
| Commodity Code | 85389091 |
| Source Connector | Destination Connector | Channel Allocation |
|---|---|---|
| 40-Pin Module Connector (Pins 1-20) | HE10 Connector #1 (20-Pin) | Channels 0 to 15 + Common/Power |
| 40-Pin Module Connector (Pins 21-40) | HE10 Connector #2 (20-Pin) | Channels 16 to 31 + Common/Power |
The BMXFCC303 (3-meter) is part of a length-variant family including the BMXFCC053 (0.5-meter), BMXFCC103 (1-meter), BMXFCC203 (2-meter), and BMXFCC503 (5-meter) assemblies. It is fully compatible with Modicon M340 high-density discrete modules such as the BMXDDI3202K (input) and BMXDDO3202K (output).
Do not exceed the minimum dynamic bending radius of 15 times the cable outer diameter during routing. Avoid running these signal cables parallel to high-voltage AC motor feeders within the same wire duct to prevent capacitive noise coupling onto the 24VDC control lines.
Ensure the mechanical locking screws on the 40-pin module connector are fully engaged and hand-tightened. Loose connections at the module faceplate can cause intermittent I/O channel faults or diagnostic errors in EcoStruxure Control Expert.
Global Express Shipping
Returns & Warranty
Manufacturer: Schneider Electric
Product No.: BMXFCC303
Country of origin:France
Product Type: PLC Connection Cables
Payment: T/T, Western Union
Weight: 890g
Dimensions: 29.0 x 25.0 x 4.0 cm
Shipping port: Xiamen
Warranty: 12 months
