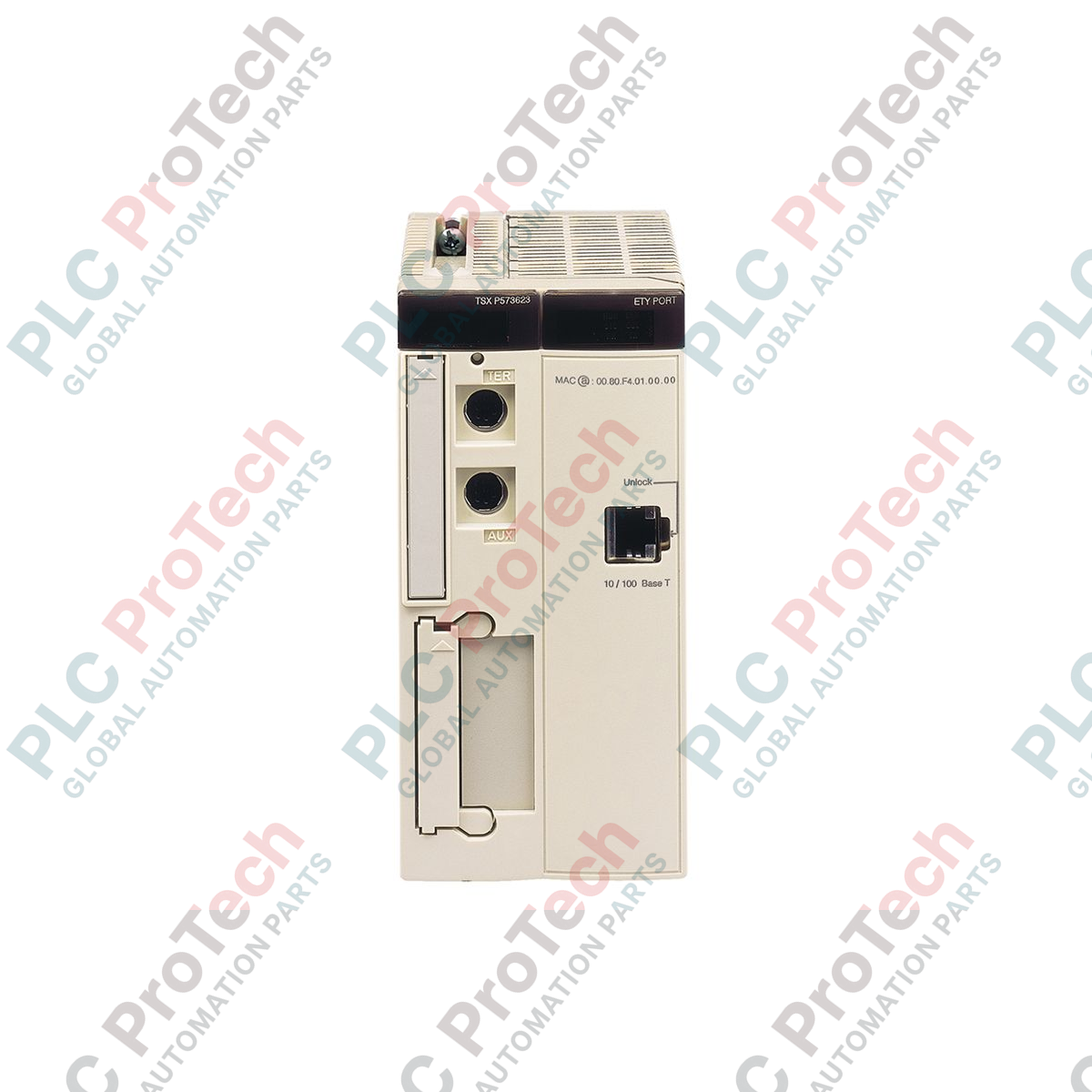

Executing high-performance control sequences across complex industrial architectures is the primary function of the Schneider Electric TSXP57363AM double-format Unity processor. Designed specifically for the legacy Modicon Premium platform, this processor provides the computational speed, memory capacity, and communication interfaces required to manage demanding multi-rack configurations in real-time processing environments.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | TSXP57363AM |
| Product Range | Modicon Premium PLM |
| Software Compatibility | Unity Pro / EcoStruxure Control Expert |
| Current Consumption | 1900 mA at 5 V DC |
| Internal Memory | 1120 kB RAM (Program and Data) |
| Max I/O Capacity | Up to 2048 discrete I/O, 512 analog I/O |
| Communication Ports | 1 x RJ45 Ethernet, 1 x USB, 1 x RJ45 Terminal Port (Modbus/Uni-Telway) |
| Module Format | Double-slot |
| Operating Temperature | 0 to 60 degC |
| Product Status | Phase-Out (Legacy Support Available) |
| Shipping Weight (Calculated) | 0.61 kg |
| Package Dimensions (Calculated) | 18.00 x 26.00 x 9.50 cm |
| Port / Interface | Function / Protocol Assignment |
|---|---|
| RJ45 (Top) | Integrated Ethernet TCP/IP (10/100 Mbps) with Modbus TCP support |
| USB Port | Programming, diagnostics, and firmware updates via EcoStruxure Control Expert |
| 8-pin Mini-DIN | Terminal Port (TER) for Uni-Telway or Modbus RTU serial communications |
| PCMCIA Slot | Accepts memory extension cards (SRAM) or network cards (FIP, Modbus Plus) |
The TSXP57363AM is a Unity-native processor. When replacing older PL7-programmed processors (such as the TSX57353M), the control application must be converted using the EcoStruxure Control Expert database converter. Note that memory allocation structures differ significantly between PL7 and Unity; verify that unlocated variable mappings are properly configured post-conversion.
With a high current draw of 1900 mA on the 5 V DC backplane, this module places a significant load on the rack power supply. When designing or expanding a rack containing this processor alongside high-density analog or communication modules, perform a strict power budget calculation. Ensure the rack is powered by a robust supply module, such as the TSXPSY5500 or TSXPSY8500, to prevent voltage drops and subsequent processor resets.
When commissioning the integrated Ethernet port, ensure that the IP address is correctly assigned via the rotary switches on the module or through the BOOTP/DHCP server configuration. Always use double-shielded twisted pair (STP) cabling for the Ethernet connection to mitigate electromagnetic interference (EMI) from adjacent variable speed drives or high-power contactors inside the enclosure.
CRITICAL WARNING
Always de-energize the entire rack assembly before inserting or removing the processor module. Hot-swapping a double-format processor can cause permanent damage to the backplane connectors and corrupt the internal flash memory.
Verify that the rack power supply is completely switched off and locked out.
Align the TSXP57363AM module with the two designated slots on the Premium rack (typically slots 0 and 1).
Gently push the module straight back until the backplane connectors are fully engaged.
Tighten the two captive mounting screws at the top and bottom of the module to secure it to the rack frame and establish proper ground continuity.
Connect the Ethernet, USB, or terminal port cables, ensuring proper strain relief is applied.
Global Express Shipping
Returns & Warranty
Manufacturer: Schneider Electric
Product No.: TSXP57363AM
Country of origin:France
Product Type: PLC CPU Modules
Payment: T/T, Western Union
Weight: 610g
Dimensions: 18.00 x 26.00 x 9.50 cm
Shipping port: Xiamen
Warranty: 12 months
