Description

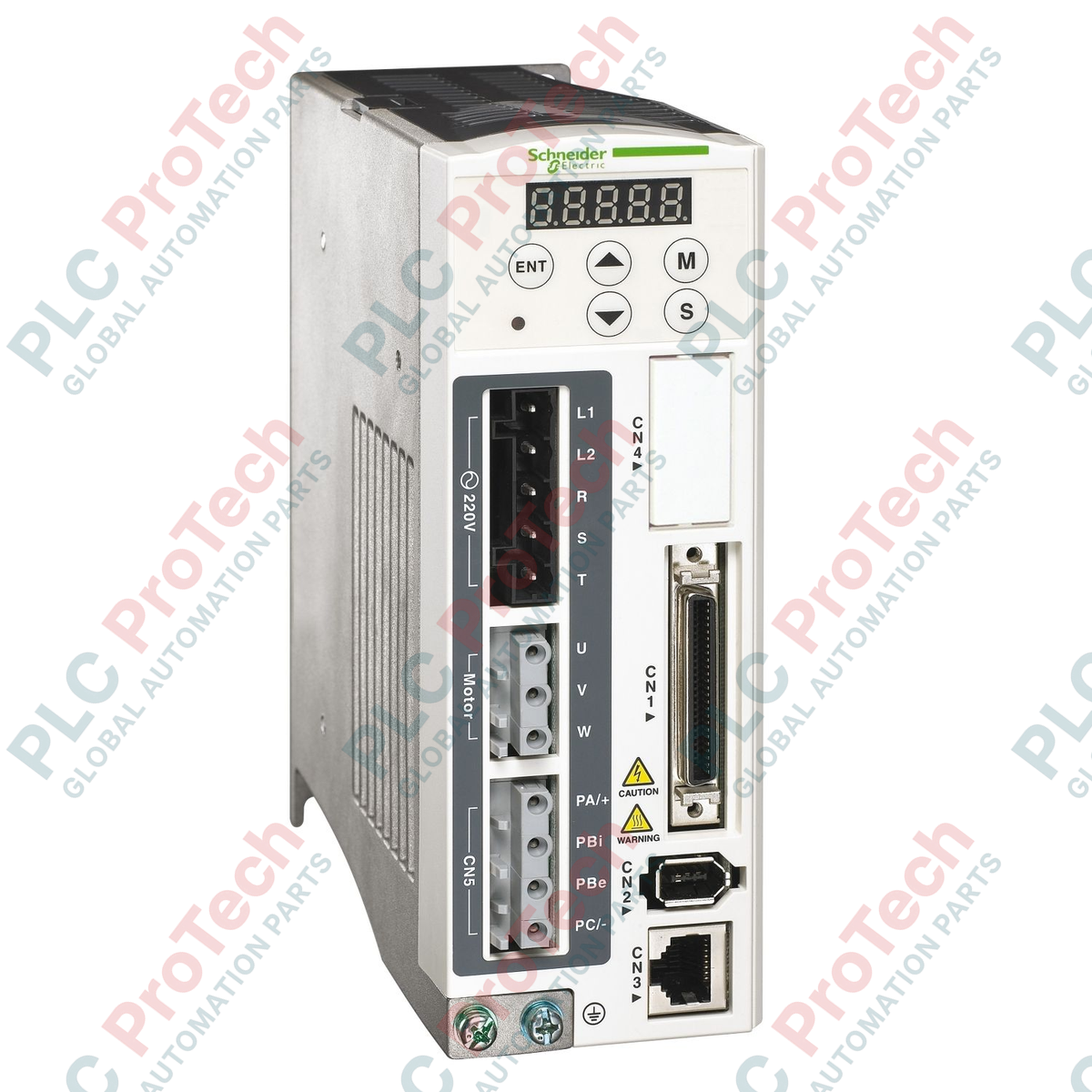

The LXM23DU04M3X is a Lexium 23 servo drive engineered by Schneider Electric to provide precise motion control for demanding automation applications. This drive is designed to manage the speed, torque, and position of servo motors with high accuracy and dynamic response. Its compact form factor allows for efficient integration into control cabinets where space optimization is critical. As part of the Lexium series, this drive offers robust performance for machinery requiring high-speed operations and repeatable motion profiles.

Features

• High-precision motion control
• Dynamic response for rapid acceleration and deceleration
• Compact dimensions for space-efficient mounting
• Reliable performance for high-speed industrial applications
• Designed for seamless integration with servo motor systems

Applications

• Automated packaging machinery
• Material handling and positioning systems
• Industrial robotics and manipulators
• Textile machinery
• Printing and labeling equipment

Technical Specifications

Installation Guidelines

• Mounting: Ensure the drive is mounted vertically on a stable, non-flammable surface to maintain proper cooling airflow.
• Cooling: Maintain recommended clearance distances around the unit to prevent thermal overload during continuous operation.
• Wiring: Use shielded cabling for motor and encoder connections to minimize electromagnetic interference (EMI) and ensure signal integrity.
• Grounding: Secure a solid connection to the system protective earth (PE) terminal to maintain safety and electromagnetic compatibility.
• Environment: Install in an enclosure protected from conductive dust, excessive vibration, and high humidity to prolong component service life.
