Description

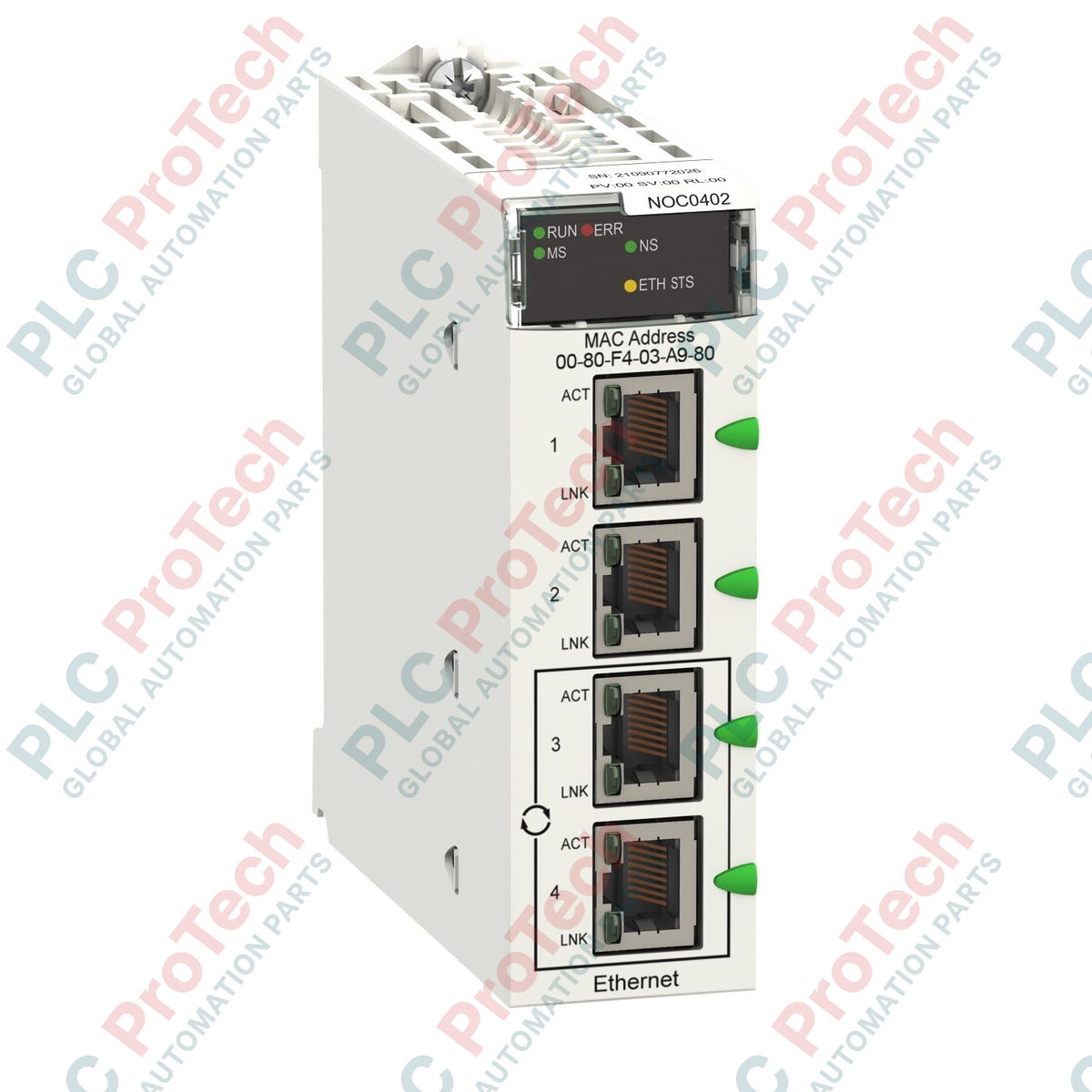

The Schneider Electric BMXNOC0402 is a Modicon X80 Ethernet/IP and Modbus TCP communication module designed for M580 automation systems. This robust module provides dual protocol support for Ethernet/IP and Modbus TCP networks, facilitating seamless data exchange and connectivity across industrial control infrastructures. Built with compact dimensions of 12 x 12 x 5.5 cm and a lightweight construction of 0.22 kg, it integrates directly into standard X80 drop racks. Although designated as a phase-out product since 2015, it remains an essential component for maintaining and supporting legacy M580 system architectures.

Features

• Dual-protocol support for Ethernet/IP and Modbus TCP communication networks
• Designed for seamless integration within Modicon X80 and M580 automation platforms
• Compact form factor with dimensions of 12 x 12 x 5.5 cm for rack mounting
• Lightweight design weighing 0.22 kg to minimize backplane stress
• Phase-out lifecycle status suitable for legacy system maintenance and replacements

Applications

• Modicon M580 PAC and distributed I/O rack architectures
• Industrial Ethernet and Modbus TCP network integration
• Factory automation and process control communication drops
• Legacy system expansion and spare part replacements

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Ensure rack power is completely disconnected before inserting or removing the BMXNOC0402 module.
• Align the module with the designated slot on the Modicon X80 backplane and secure it using the integrated locking mechanism.
• Connect shielded industrial Ethernet cables to the RJ45 communication ports for Ethernet/IP and Modbus TCP networks.
• Ensure proper network termination and grounding practices are followed to minimize electromagnetic interference (EMI).
• Verify communication link status via the module front panel LED indicators upon system power-up.
