Description

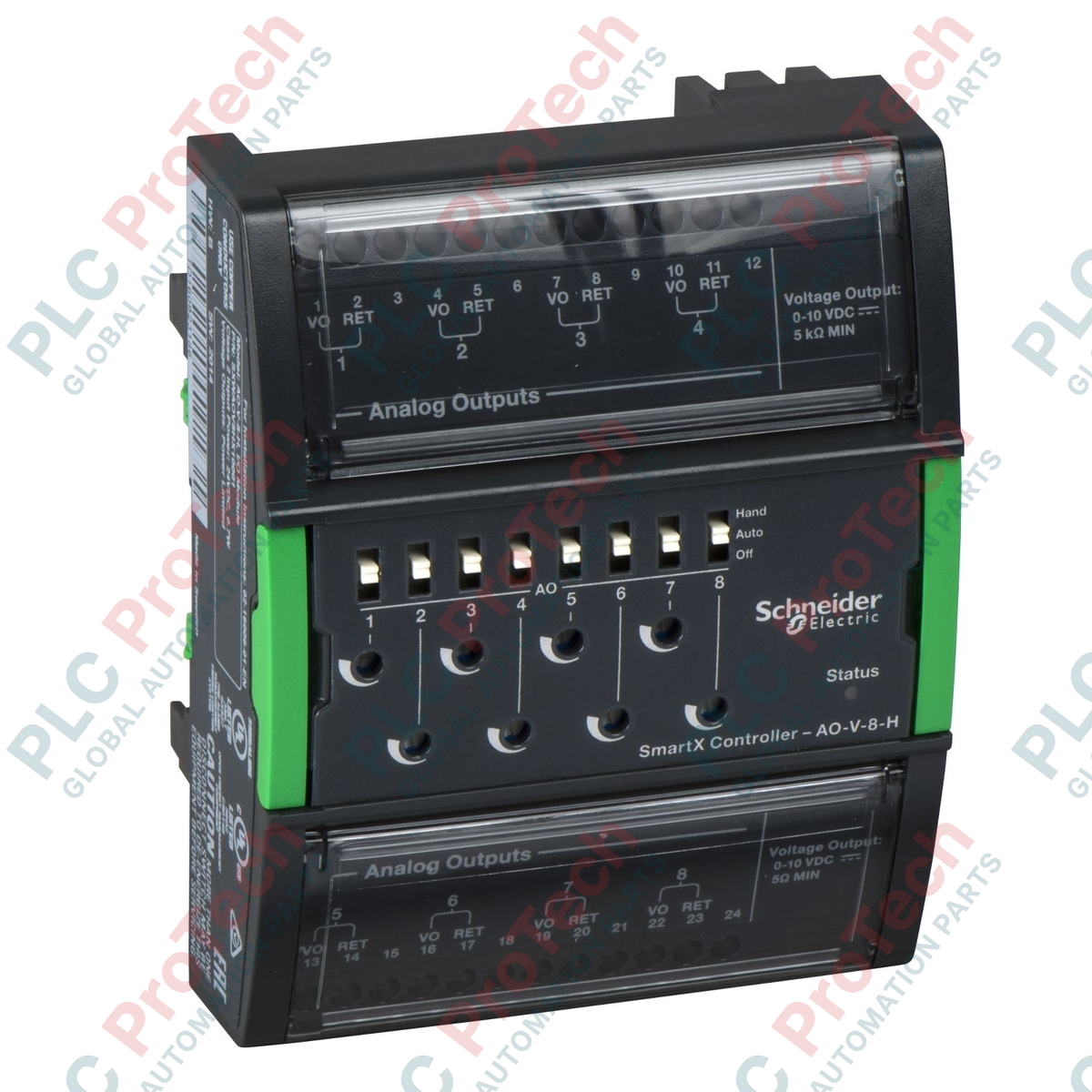

The SXWAOV8HX10001 (also identified as AO-V-8-H) is an analog output module designed by Schneider Electric to provide precise signal control in industrial automation environments. This module features 8 analog output channels specifically configured for voltage (V) output applications. With its compact footprint, the SXWAOV8HX10001 is engineered for seamless integration into control cabinets where space-efficient signal management is required. This module maintains robust performance standards for reliable signal delivery across various automated processes.

Features

• 8 high-precision analog output channels
• Voltage output configuration
• Compact module design for space-constrained installations
• Engineered for high-reliability industrial signal management

Applications

• Process control systems
• Actuator and valve control
• Variable speed drive references
• Industrial data acquisition systems
• Signal distribution and monitoring

Technical Specifications

Installation Guidelines

• Mounting: Secure the module in a suitable control enclosure to protect against dust and environmental contaminants.
• Wiring: Utilize shielded twisted-pair cabling for all analog output connections to mitigate electromagnetic interference (EMI) and ensure signal accuracy.
• Grounding: Maintain a consistent reference ground for the analog signals to prevent ground loops and common-mode noise issues.
• Routing: Separate analog signal lines from high-voltage power lines and motor cables to prevent cross-talk and signal degradation.
• Testing: Verify all output voltages against the programmed setpoints during system commissioning to ensure proper calibration.
