Description

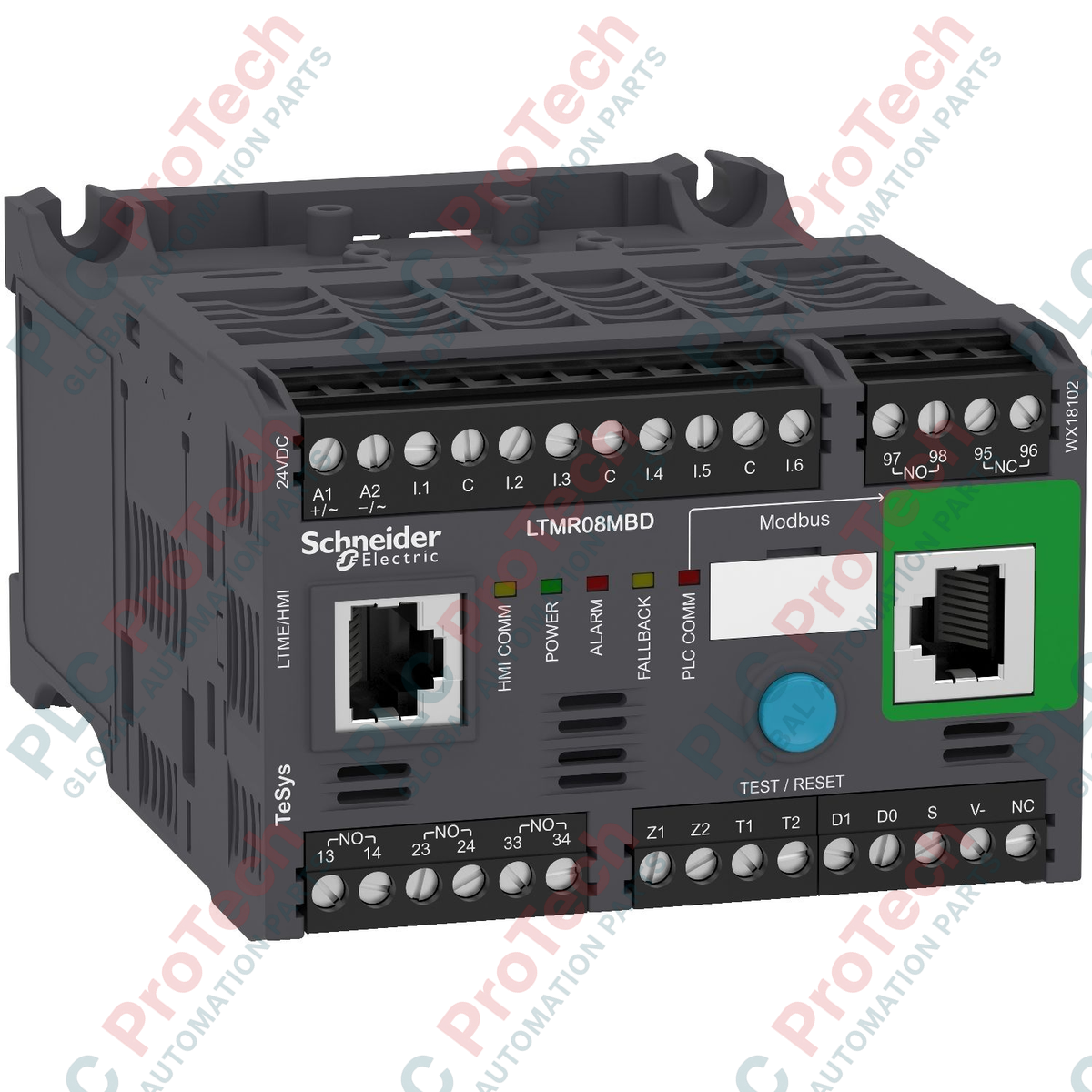

The Schneider Electric LTMR08MBD is a TeSys T motor controller designed for 24V DC control applications, operating within a current range of 0.4 to 8 A. Manufactured by Schneider Electric, this advanced motor module integrates Modbus communication for enhanced connectivity, real-time monitoring, and comprehensive motor management. Built with dimensions of 13.6 x 10 x 7.2 cm and a weight of 0.52 kg, it delivers robust performance and precise control in space-constrained industrial control panels.

Features

• TeSys T motor controller supporting a current range of 0.4 to 8 A
• Designed for 24V DC control supply voltage applications
• Built-in Modbus communication interface for system connectivity and data monitoring
• Compact physical form factor with dimensions of 13.6 x 10 x 7.2 cm and a weight of 0.52 kg
• Active product lifecycle status within the Schneider Electric product line

Applications

• Industrial motor control and protection centers (MCC)
• Pumping stations and compressor management systems
• Conveyor and material handling drive controls
• Automated manufacturing and process industry environments

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Ensure all electrical power sources are switched off prior to mounting or wiring the motor controller.
• Mount the module securely onto standard DIN rails or backplates within an appropriate electrical enclosure.
• Connect the 24V DC control supply and communication wiring to the designated terminals, ensuring secure termination.
• Route Modbus communication cables away from high-voltage power lines to minimize electromagnetic interference (EMI).
• Verify wiring correctness and configure communication parameters prior to system energization and testing.
