Description

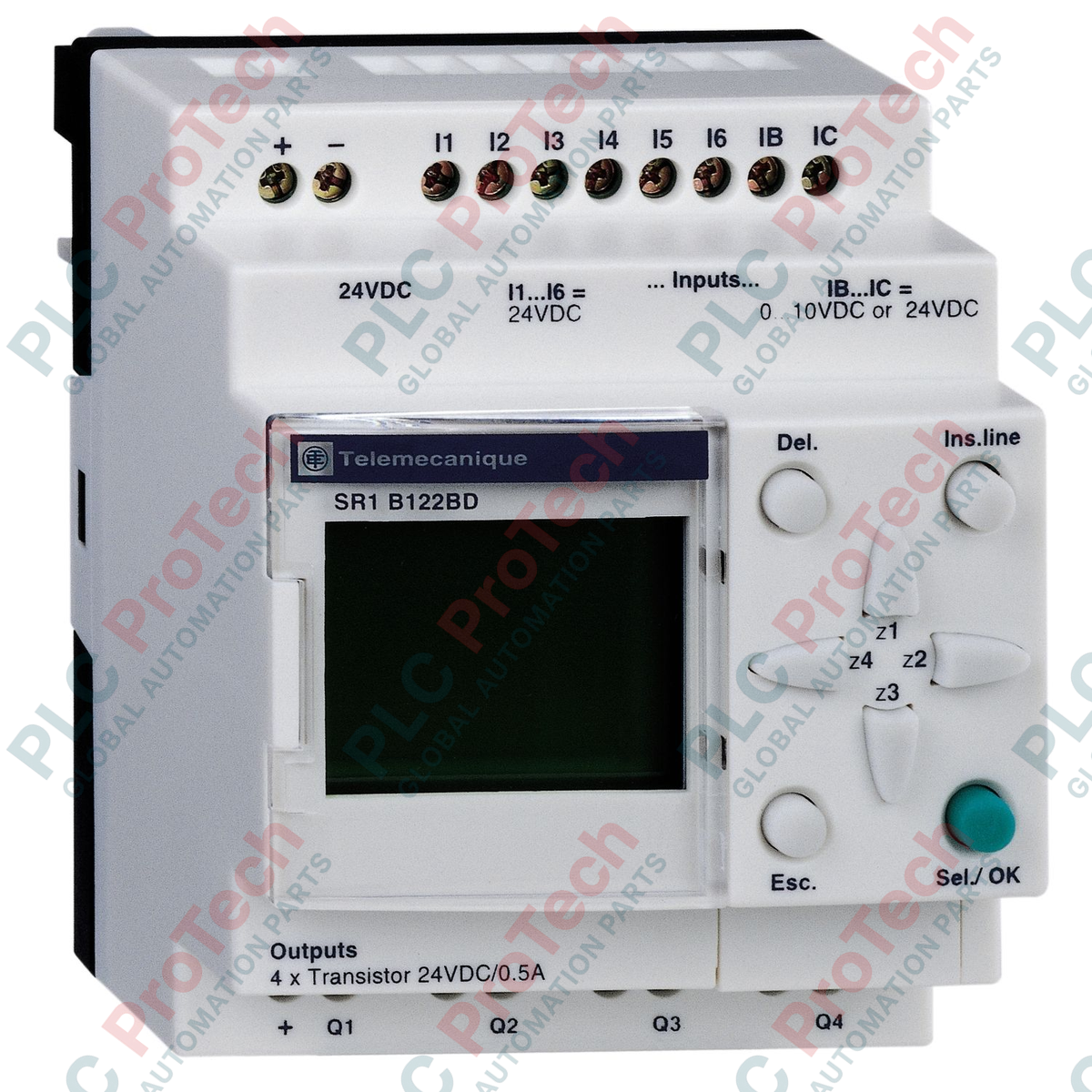

The SR1B122BD is a compact smart relay from the Zelio Logic range, designed to provide flexible control for small-scale automation tasks. This unit features 12 I/O points and operates on a 24 V DC power supply. The SR1B122BD includes an integrated clock and a display, allowing for real-time monitoring and easy configuration of control logic directly at the device. It is an ideal solution for applications such as machine automation, process control, and building management systems where space-saving and intuitive control are required.

Features

• Compact design with 12 I/O points.
• Operates on 24 V DC supply voltage.
• Integrated LCD display and clock for real-time control and scheduling.
• Ideal for small automation systems requiring precise monitoring.
• Part of the reliable Zelio Logic series.

Applications

• Small-scale machine automation.
• Building management systems (lighting and HVAC control).
• Simple process control tasks.
• Automated systems requiring scheduled operations.

Technical Specifications

Installation Guidelines

• Mounting: The unit is designed for simple installation within a control cabinet, typically via DIN rail or panel mounting.
• Wiring: Ensure the 24 V DC power supply is connected to the appropriate terminals, observing correct polarity to prevent damage to internal circuits.
• Programming: Use the onboard display and navigation keys to configure logic parameters or connect via the programming interface for more complex setups.
• Environment: Install in a clean and dry environment, ensuring ambient temperature and humidity levels remain within the specifications for electronic control devices.
• Maintenance: Periodically check terminal connections to ensure they remain secure under vibration-prone conditions.
