6AV1222-0AC20

Siemens

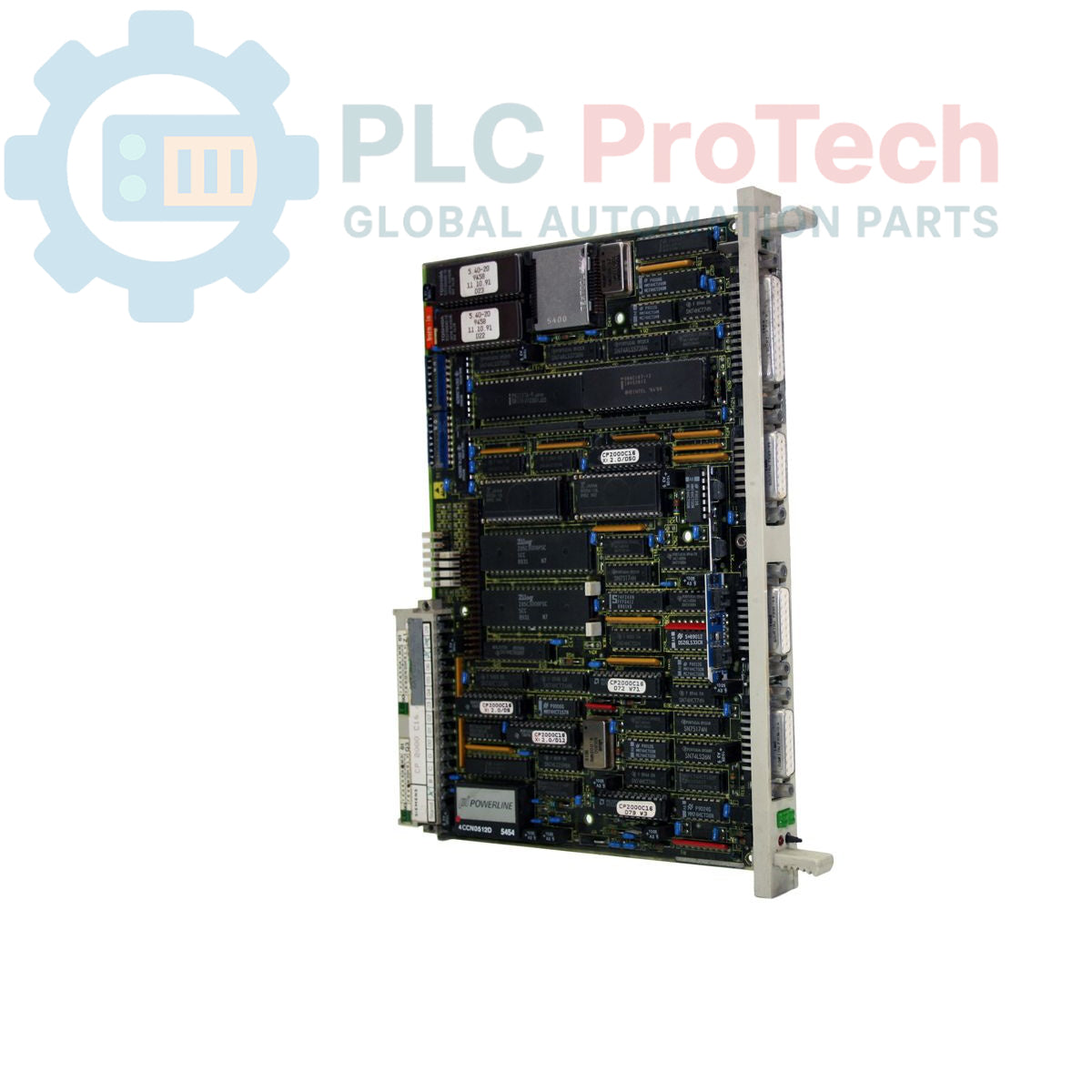

Siemens 6AV1222-0AC20 SIMATIC S5 CP-C20 Interface Processor

SKU 6AV1222-0AC20

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV1222-0AC20
  • Origin Germany
  • Product Type: Interface Processor
  • Barcode: 85389091
  • Payment: T/T, Western Union
  • Weight: 0.6 kg
  • Dimensions: 24.00 x 18.50 x 10.00 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Interface Processor Simatic S5s
Quantità
Call sales Contact

Product Description

Description

The Siemens 6AV1222-0AC20 is a CP-C20 Interface Processor designed for the SIMATIC S5 automation system. This module facilitates communication and data processing within the S5 environment, featuring 4 ports, an operating frequency of 12 MHz, and a memory configuration of 512/64 KByte RAM. It is identified with software version V5.X and is part of the broader SIMATIC product range, though it is currently in an obsolete product phase.

Features

  • CP-C20 Interface Processor
  • Designed for Siemens SIMATIC S5 Systems
  • Equipped with 4 Communication Ports
  • Operates at 12 MHz Clock Speed
  • Includes 512/64 KByte RAM
  • Software Version V5.X

Applications

The Siemens 6AV1222-0AC20 is typically deployed in industrial automation settings utilizing SIMATIC S5 programmable logic controllers. Its primary applications include:
  • Enabling communication between the SIMATIC S5 CPU and external devices or networks.
  • Handling data exchange and processing tasks within the S5 system architecture.
  • Supporting legacy automation systems requiring CP-C20 interface capabilities.

Technical Specifications

Manufacturer Siemens
Brand Siemens
Range SIMATIC
Product Phase Obsolete
Processor Type CP-C20 Interface Processor
Ports 4
Clock Speed 12 MHz
RAM 512/64 KByte
Software Version V5.X
Package Dimensions (Calculated) 24.00 x 18.50 x 10.00 cm
Shipping Weight 0.60 kg
Commodity Code 85389091
Export Control Regulations (ECCN) N

Installation Guidelines

  1. Ensure the SIMATIC S5 rack or system is completely de-energized and locked out according to safety procedures before commencing installation or removal.
  2. Carefully insert the 6AV1222-0AC20 module into the designated slot within the SIMATIC S5 system backplane.
  3. Secure the module using any integrated fastening mechanisms, such as screws or latches, to prevent vibration or accidental dislodgement.
  4. Connect communication cables to the 4 ports, ensuring proper pin assignment, termination, and shielding as required by the specific system configuration and communication protocol.
  5. Verify all electrical and communication connections are secure and correctly routed before re-energizing the SIMATIC S5 system.
  6. After power-up, observe system indicators to confirm proper module initialization and communication status.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the primary function of the 6AV1222-0AC20?
It serves as a CP-C20 Interface Processor for SIMATIC S5 systems, managing communication and data processing tasks.
What system is this module compatible with?
The 6AV1222-0AC20 is designed for use with Siemens SIMATIC S5 automation systems.
How many communication ports does this processor have?
The module is equipped with 4 communication ports.
What is the RAM capacity of this module?
It features 512/64 KByte of RAM.
Is this module still actively manufactured?
No, the 6AV1222-0AC20 is currently in an obsolete product phase.
