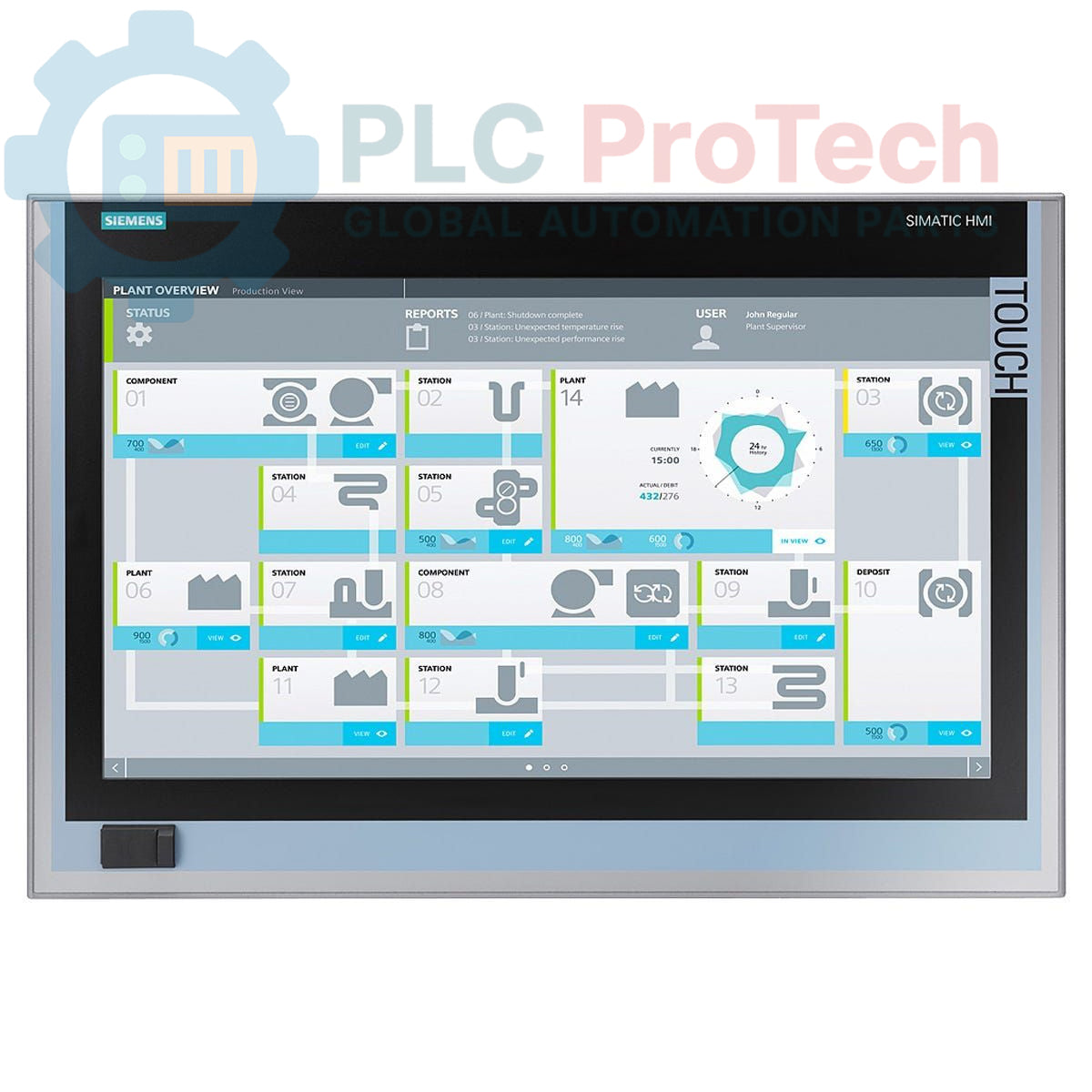

The Siemens 6AV7260-2DA20-0BA0 is a SIMATIC IPC677D Panel PC designed for industrial applications. This unit features a 22-inch touch display with a resolution of 1920x1080, powered by an Intel Core i3-4330TE processor. It includes multiple communication interfaces such as Gigabit Ethernet, USB V3.0, and a serial port (COM1). The IPC677D is equipped with a 500 GB SATA HDD, 4 GB DDR3 1600 DIMM RAM, and two PCI slots. Integrated features include a watchdog, temperature and fan monitoring, and an onboard RAID controller. The system comes pre-installed with Windows 7 Ultimate 64 Bit SP1 (MUI) and SIMATIC IPC DiagMonitor, utilizing an enclosed AC 110/230V industrial power supply unit with NAMUR compatibility.
The Siemens SIMATIC IPC677D Panel PC is suitable for a wide range of industrial automation and control applications, including:
| Brand | Siemens |
| Manufacturer | Siemens |
| Range | Simatic Panel PC |
| Subrange | IPC |
| Product Type | PC panels |
| PLM Product Phase | Phase-Out |
| Ethernet Ports | 2x 10/100/1000 Mbit/s |
| USB Ports | 4x USB V3.0 (plus front USB) |
| Serial Port | 1x (COM1) |
| Display Type | 22" Touch |
| Display Resolution | 1920x1080 |
| CPU | Intel Core i3-4330TE (2C/4T, 2.4 GHz, 4 MB Cache, VT-X) |
| Hard Drive | 500 GB HDD SATA |
| RAM | 4 GB DDR3 1600 DIMM |
| Expansion Slots | 2x PCI (without expansion HW) |
| Operating System | Windows 7 Ultimate 64 Bit SP1, MUI (DE, EN, FR, ES, IT) |
| Monitoring | Watchdog, Temperature, Fan |
| RAID Controller | Onboard |
| Included Software | SIMATIC IPC DiagMonitor |
| Power Supply | AC 110/230V Industrial Power Supply Unit with NAMUR |
| Power Supply Cable | Europe |
| Package Dimensions (Calculated) | 60.00 x 56.50 x 30.00 cm |
| Shipping Weight | 17.00 kg |
| Commodity Code | 85371098 |
| Export Control Regulations (ECCN) | N |
| Interface Type | Quantity / Description |
|---|---|
| Ethernet | 2x 10/100/1000 Mbit/s |
| USB | 4x USB V3.0 (rear), 1x USB (front) |
| Serial | 1x COM1 |
| PCI | 2x PCI slots |
| Power Input | AC 110/230V Industrial Power Supply |
Global Express Shipping
Returns & Warranty
Manufacturer: Siemens
Product No.: 6AV7260-2DA20-0BA0
Country of origin:Germany
Product Type: PC Panel
Barcode: 85371098
Payment: T/T, Western Union
Weight: 17g
Dimensions: 60.00 x 56.50 x 30.00 cm
Shipping port: Xiamen
Warranty: 12 months
