Description

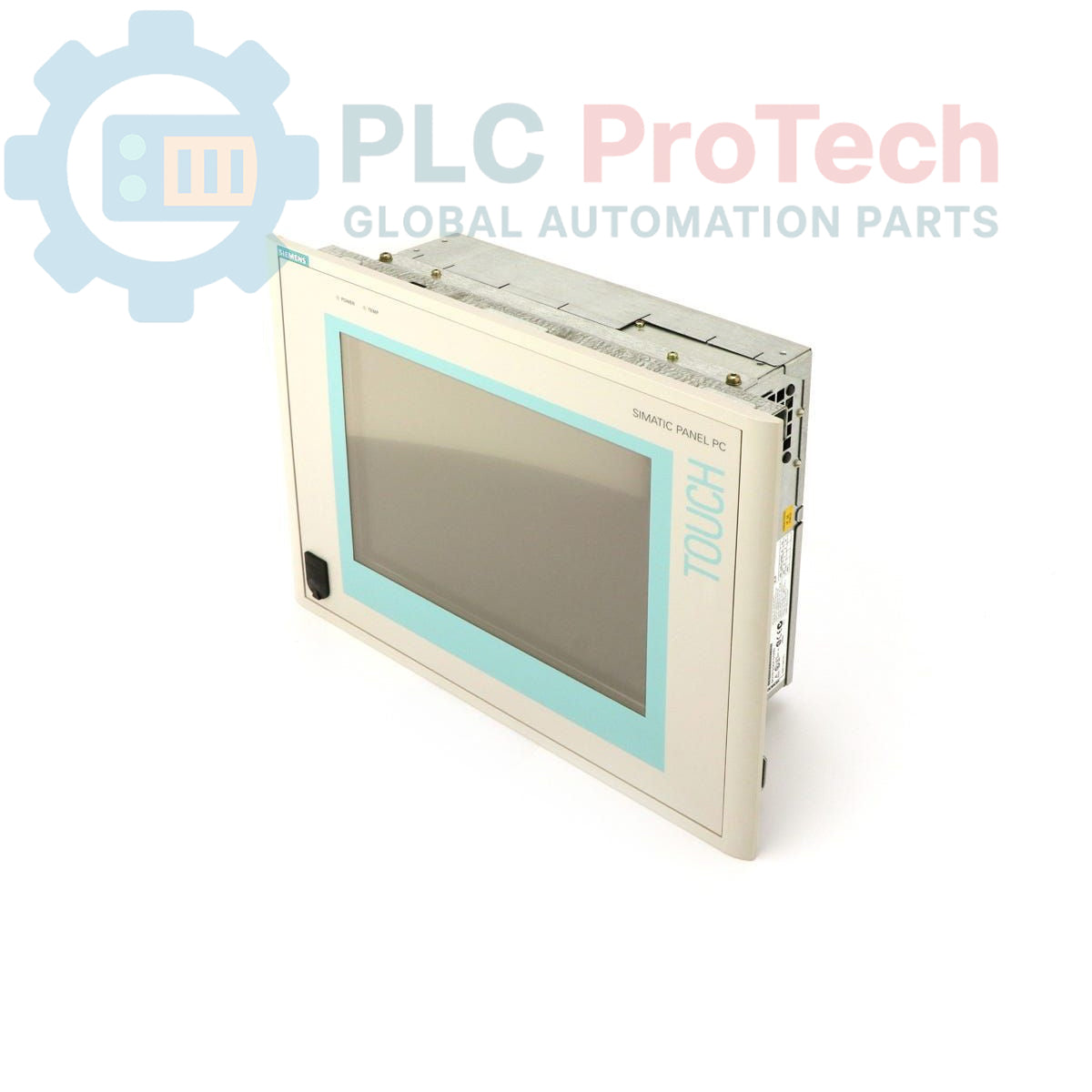

The Siemens 6AV7611-0AF32-0AF0 is a SIMATIC Panel PC 670 designed for industrial human-machine interface (HMI) and control applications. This unit features a 10-inch TFT display and is powered by a Pentium III 500 MHz processor. It is configured with 256 MB of RAM, a 40 GB hard drive, and a CD-ROM drive. The system operates on a 24 V DC power supply and comes pre-installed with the Windows 98 operating system in English. Note that this model is considered an obsolete part, suitable for maintaining or repairing legacy automation systems.

Features

• Integrated 10-inch TFT color display
• Intel Pentium III processor operating at 500 MHz
• 256 MB of system RAM
• 40 GB hard drive for operating system and application storage
• Includes a CD-ROM optical drive
• Operates on a nominal 24 V DC industrial power source
• Pre-loaded with Windows 98 (English version)

Applications

• Machine-level operator control and monitoring
• Process visualization and SCADA client stations
• Data acquisition and logging in manufacturing environments
• Replacement unit for existing SIMATIC PC 670 installations
• Industrial control panels in factory automation

Technical Specifications

Installation Guidelines

1. 1 Prepare the Enclosure: Ensure the panel cutout dimensions match the PC 670's mounting requirements. The mounting surface must be clean, flat, and capable of supporting the unit's weight. Verify adequate clearance for ventilation and cable routing.
2. 2 Mount the Unit: Insert the Panel PC into the cutout from the front. Secure it from the rear using the provided mounting clamps. Tighten the clamp screws evenly in a crisscross pattern to ensure a uniform seal against the panel gasket. Do not overtighten.
3. 3 Connect Power: Connect a stable, safety extra-low voltage (SELV/PELV) 24 V DC power source to the designated power terminals. Ensure correct polarity. Use appropriately sized wiring for the current draw and secure the connections firmly.
4. 4 Establish Grounding: Connect the functional earth (FE) or protective earth (PE) terminal on the chassis to the enclosure's main ground point using a low-impedance conductor. Proper grounding is essential for noise immunity and safety.
5. 5 Connect Peripherals: Connect any required communication cables (e.g., Ethernet, PROFIBUS) and I/O devices. Ensure all cable shields are properly terminated as required. Route cables away from high-voltage lines to minimize electrical noise interference.
