6AV7705-3CA40-0AA0

Siemens

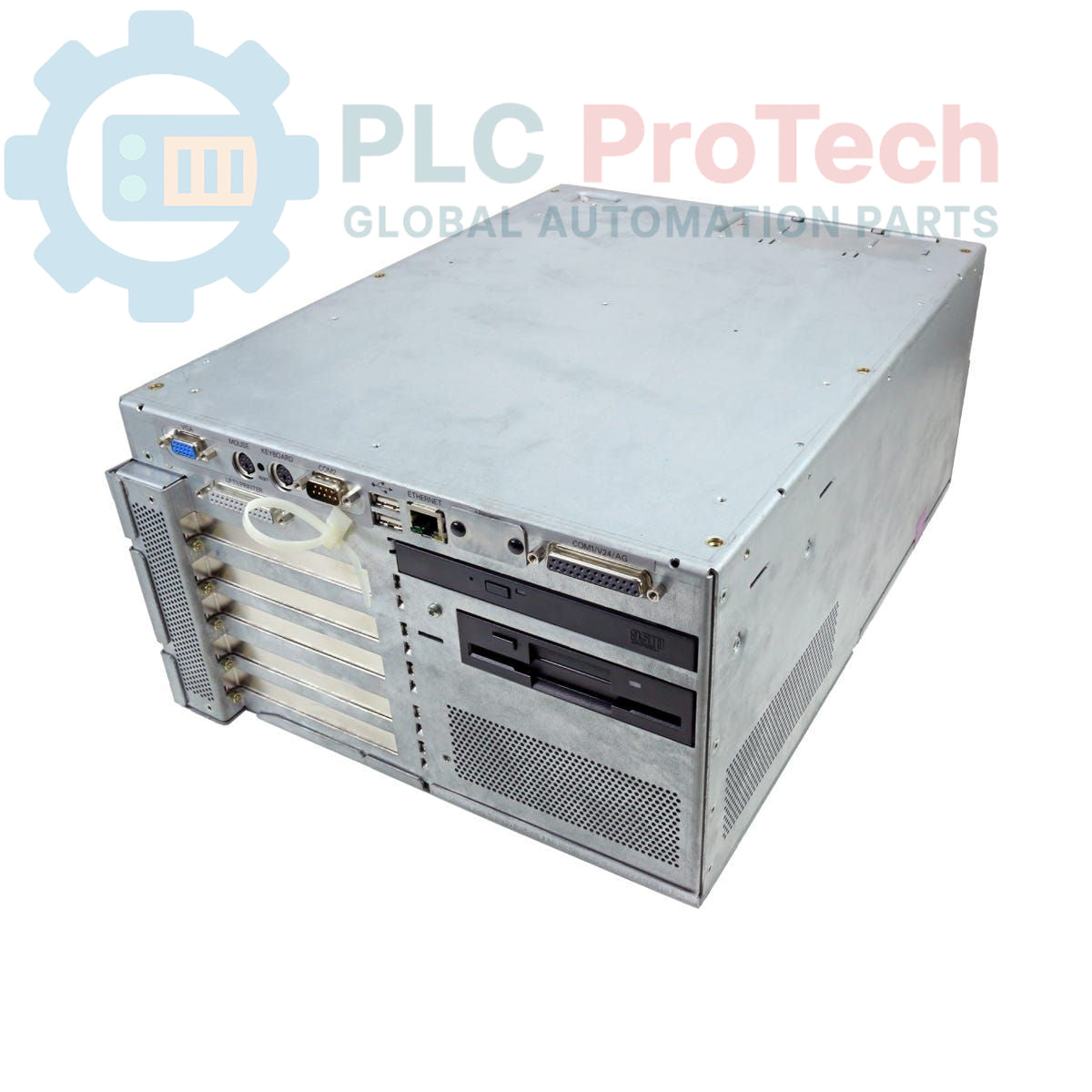

Siemens 6AV7705-3CA40-0AA0 SIMATIC Panel PC 870

SKU 6AV7705-3CA40-0AA0

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Siemens
  • Product No.: 6AV7705-3CA40-0AA0
  • Origin Germany
  • Product Type: Panel PC
  • Barcode: 85371091
  • Payment: T/T, Western Union
  • Weight: 0.019 kg
  • Dimensions: 61.0 x 59.0 x 35.0 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI Panel PCs SIMATIC Panel PC
Quantità
Call sales Contact

Product Description

Description

This device is a Siemens 6AV7705-3CA40-0AA0 SIMATIC Panel PC 870, designed for industrial human-machine interface (HMI) and control applications. This standard configuration features a 15.1-inch color TFT display, a Celeron 1.2 GHz processor, and 512 MB of RAM. It is equipped with an 80 GB EIDE hard disk drive and a CD-R/RW/DVD optical drive. The unit operates on a 24V DC power supply and is delivered without a pre-installed operating system, allowing for custom software deployment.

Features

  • 15.1-inch Color TFT Display
  • Intel Celeron 1.2 GHz Processor
  • 512 MB System RAM
  • 80 GB EIDE Hard Disk Drive for local storage
  • Integrated CD-R/RW/DVD Optical Drive
  • Operates on a 24V DC power input
  • Supplied without an operating system

Applications

  • Process visualization and control
  • Machine-level data acquisition and logging
  • Factory automation control panels
  • Industrial SCADA client terminals

Technical Specifications

Specification Value
Manufacturer Siemens
Product Series SIMATIC Panel PC 870
Display 15.1 inch Color TFT
Processor Celeron 1.2 GHz
Memory (RAM) 512 MB
Storage 80 GB HDD EIDE
Optical Drive CD-R/RW/DVD
Power Supply 24V DC
Operating System Not Included
Product Lifecycle Status Obsolete
Commodity Code 85371091
ECCN N
Country of Origin Germany (Estimated)
Package Dimensions (Calculated) 61.0 x 59.0 x 35.0 cm
Shipping Weight 19.00 kg

Installation Guidelines

CRITICAL WARNING: Disconnect all power sources before installation or maintenance. This equipment is intended for use in restricted-access industrial locations by qualified personnel only. Failure to follow safety procedures can result in equipment damage, severe injury, or death.
  1. 1 Panel Cutout and Mounting: Ensure the panel cutout dimensions precisely match the unit's specifications for a secure, IP-rated fit. Verify the panel material has sufficient structural integrity to support the PC's weight (19.00 kg). Use all provided mounting clamps and tighten them to the specified torque to ensure a uniform seal.
  2. 2 Power Connection: Connect a stable, filtered 24V DC power source to the designated terminals. Use appropriately gauged wiring for the load and distance. Ensure the power supply is properly grounded and provides overcurrent protection. Verify correct polarity before energizing the unit.
  3. 3 Grounding: A dedicated, low-impedance protective earth (PE) connection is mandatory. Connect the chassis ground terminal directly to the main control panel's ground bus using a short, heavy-gauge wire to minimize electrical noise and ensure safety.
  4. 4 Ventilation and Clearance: Maintain adequate clearance around the unit's rear and sides for proper heat dissipation. Do not block ventilation openings. Ensure the ambient operating temperature within the enclosure remains within the device's specified limits to prevent overheating and premature component failure.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What are the processor and RAM specifications for this Panel PC?
This unit is configured with an Intel Celeron 1.2 GHz processor and 512 MB of RAM.
Does the 6AV7705-3CA40-0AA0 come with an operating system installed?
No, this model is supplied without a pre-installed operating system, allowing for custom software installation.
What is the required input power for this device?
The SIMATIC Panel PC 870 requires a 24V DC power supply for operation.
What is the screen size and type?
It features a 15.1-inch color TFT display.
Is this product still in active production by Siemens?
No, the product lifecycle status for this model is listed as Obsolete.
