Description

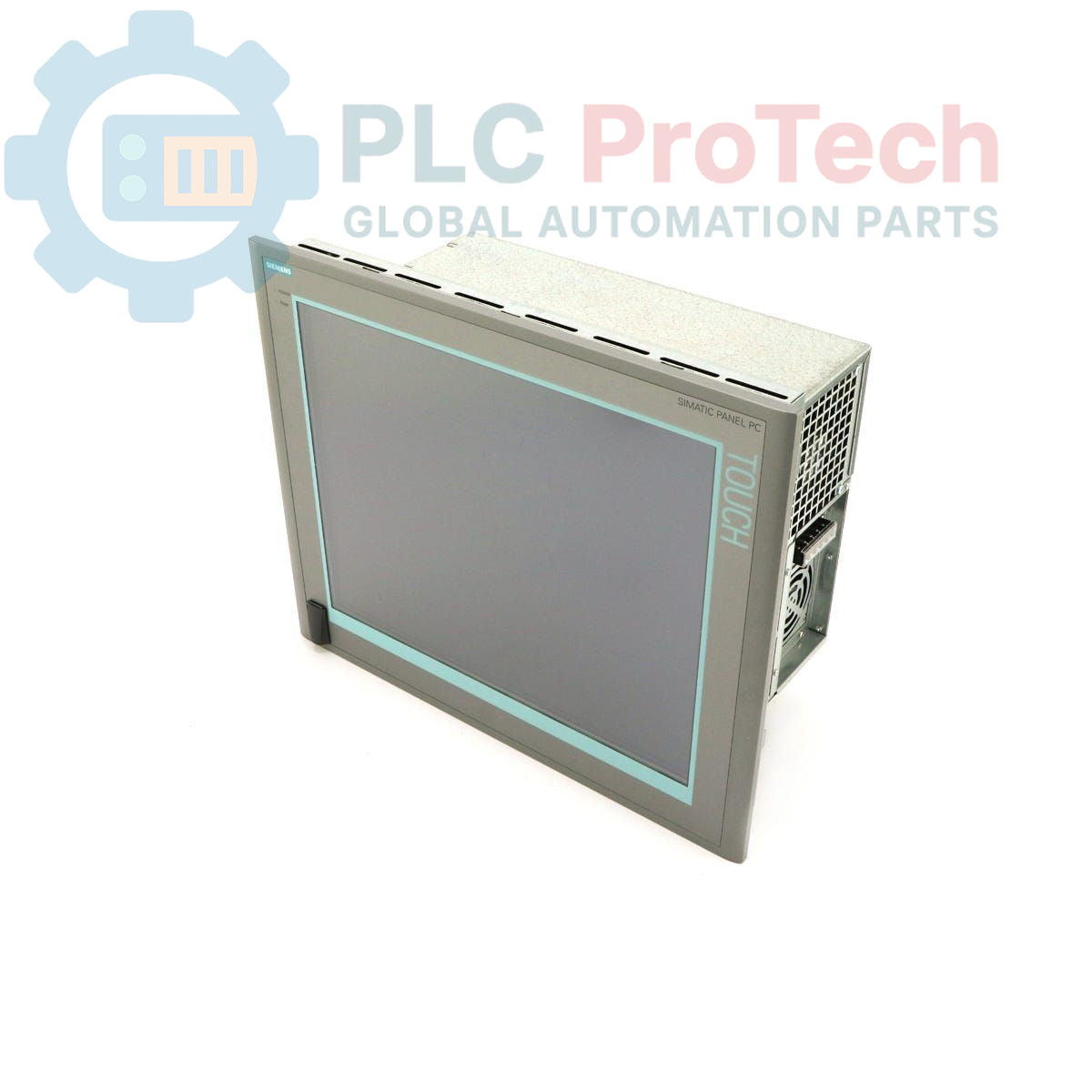

The Siemens 6AV7812-1BB11-2AC0 is a SIMATIC Panel PC 877, designed for industrial visualization and control applications. This unit features a 15-inch touch display with a 1024x768 resolution. It is equipped with a Pentium 4 2.8 GHz processor, 512MB DDR266 SDRAM, and an 80 GByte EIDE hard disk drive. The Panel PC includes a CD-R/RW/DVD combo drive and comes pre-installed with Windows XP Professional MUI, supporting multiple languages. It operates on an AC 110-230V power supply and is configured without a front-side USB interface.

Features

• 15-inch Touch Display with 1024x768 Resolution
• Integrated Pentium 4 2.8 GHz Processor (533 MHz FSB, 512KB SLC)
• 512MB DDR266 SDRAM (1x512MB)
• 80 GByte EIDE 3.5" Hard Disk Drive
• CD-R/RW/DVD Combo Drive
• Pre-installed Windows XP Professional MUI (Multi-User Interface)
• AC 110-230V Power Input with Europe Power Cable
• Designed without Front Side USB Interface

Applications

The SIMATIC Panel PC 877 is suitable for a range of industrial applications requiring robust computing and visualization, including:

• Human Machine Interface (HMI) tasks in manufacturing and process control
• Data acquisition and monitoring systems
• Machine control and automation visualization
• Operator workstations in harsh industrial environments

Technical Specifications

Installation Guidelines

1. Safety First: Always de-energize the power supply to the Panel PC and any connected equipment before commencing installation or maintenance.
2. Mounting: Securely mount the Panel PC into its designated panel cutout or enclosure, ensuring proper ventilation clearances as specified by the system design.
3. Power Connection: Connect the AC 110-230V power supply using the provided Europe power cable, ensuring correct polarity and secure termination. Verify that the power source matches the unit's requirements.
4. Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
5. Peripheral Connections: Connect any necessary industrial peripherals, such as keyboards, mice, or external storage, to the available interfaces. Note that this model does not feature a front-side USB interface.
6. Environmental Considerations: Ensure the installation environment is within the specified operating temperature and humidity ranges to prevent damage and ensure reliable operation.
7. Cable Management: Route all cables neatly and securely, separating power and signal cables to reduce interference. Avoid sharp bends or excessive tension on cables.
